Siglent SSU5181A mechanical switch with a frequency range of 18 GHz
€1,435.00*
- 3-year guarantee
Free shipping
Delivery time: 1 week
Further information
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: SSU5181A
Manufacturer: Siglent
Description
The SSU5181A is a mechanical SPDT switch with one port and an SMA RF socket. The frequency range is between DC-18 GHz.
Features
- Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz
- 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations
- SCPI controllable via VISA and EasySSU software
- USB connectivity
- Size: W×H×D=153×62.4×137.5 mm
- RF connection: SMA socket or 2.4 mm socket
- SPDT is a single pole dual throw switch where a common terminal is switched to one of the two numbered terminals.
- SP6T is a single-pole 6-way switch in which a common connection is switched to one of the 6 numbered connections.
Hardware details

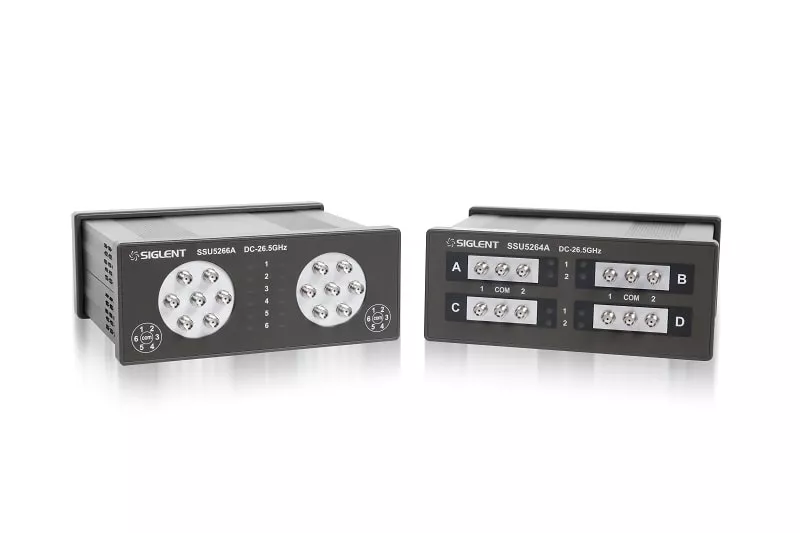

The SSU5000A series has a compact design, outstanding RF characteristics, low insertion loss, excellent impedance matching and exceptionally short switching time. It is available with a frequency range of up to 50 GHz. It includes 1-4 independent single-pole mechanical switches with SMA or 2.4 mm connectors or single-pole mechanical switches with six switches. This series is for multi-port test requirements of microwave and millimetre wave systems.Design and Measurement
To meet the multi-port test requirements of microwave and millimetre wave systems, SIGLENT has introduced the SSU5000A series of mechanical switches with a frequency range of up to 50 GHz. The SSU5000A has a compact design, excellent RF characteristics, low insertion loss, excellent impedance matching and exceptionally short switching time. It includes 1-4 independent single-pole mechanical switches with SMA or 2.4 mm connectors or single-pole mechanical switches with six switches.
Technical Data
| Model comparison | Frequency range | Number of switches | Switch type | HF connection |
|---|---|---|---|---|
 SSU5181A | Direct current - 18 GHz | 1 | SPDT | SMA socket |
 SSU5182A | Direct current - 18 GHz | 2 | SPDT | SMA socket |
 SSU5183A | Direct current - 18 GHz | 3 | SPDT | SMA socket |
 SSU5184A | Direct current - 18 GHz | 4 | SPDT | SMA socket |
 SSU5261A | Direct current - 26.5 GHz | 1 | SPDT | SMA socket |
 SSU5262A | Direct current - 26.5 GHz | 2 | SPDT | SMA socket |
 SSU5263A | Direct current - 26.5 GHz | 3 | SPDT | SMA socket |
 SSU5264A | Direct current - 26.5 GHz | 4 | SPDT | SMA socket |
 SSU5265A | Direct current - 26.5 GHz | 1 | SP6T | SMA socket |
 SSU5266A | Direct current - 26.5 GHz | 2 | SP6T | SMA socket |
 SSU5501A | Direct current - 50 GHz | 1 | SPDT | 2.4 mm socket |
 SSU5502A | Direct current - 50 GHz | 2 | SPDT | 2.4 mm socket |
 SSU5503A | Direct current - 50 GHz | 3 | SPDT | 2.4 mm socket |
 SSU5504A | Direct current - 50 GHz | 4 | SPDT | 2.4 mm socket |
