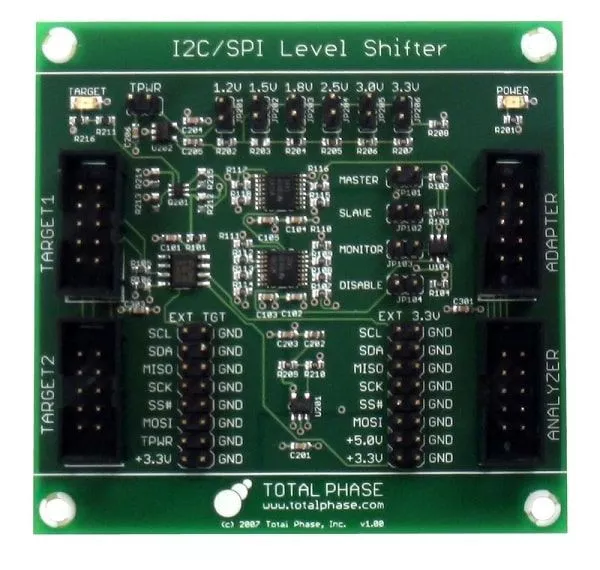

Total Phase Level Shifter Board

The Level Shifter Board enables voltage level conversion from 1.2V to 3.3V

€139.00*

Content: 1
Volume discounts on request!

In Stock, Delivery time: 1 - 3 days

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: TP240610
Manufacturer: Total Phase

Description

The Level Shifter Board enables voltage level conversion from 1.2V to 3.3V for the Aardvark I2C/SPI Host Adapter, the Beagle I2C/SPI/MDIO Protocol Analyzer and the Cheetah SPI Host Adapter.

Key Features

  • Level shifting for I2C, SPI, and MDIO signals
  • Supports the following voltage levels: 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, and 3.3V
  • supply of downstream devices
  • I2C speed of 800 kHz
  • SPI and MDIO speed of 20MHz
