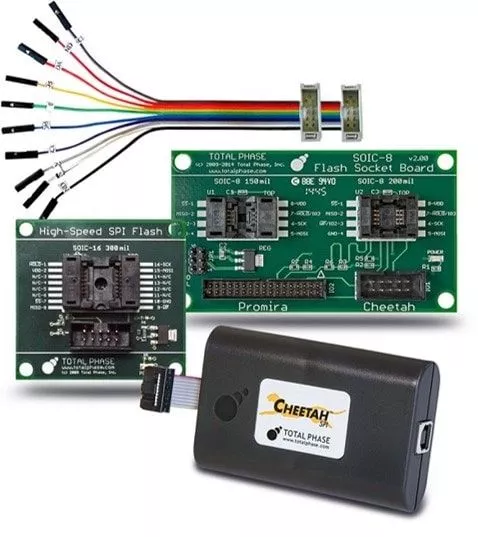

Total Phase has assembled a complete set of development tools and supplies for erasing, programming and verifying serial flash memory devices.
€490.00*
In Stock, Delivery time: 1-3 days
More Information
Product number: TP120410
Manufacturer: Total Phase
Description
Total Phase has assembled a complete set of development tools and supplies for erasing, programming and verifying serial flash memory devices.
Hardware requirement
- Intel or AMD processor with at least 2 gigahertz (GHz) or faster
- 1 gigabyte (GB) physical RAM (32-bit) or 2 GB RAM (64-bit)
- 2 GB or more free disk space
- High-speed USB port
- 1024x768 resolution or higher
Supported operating systems (32-bit and 64-bit)
- Windows: 7, 8, 8.1, 10
- Linux: Red Hat, SuSE, Ubuntu, Fedora, Arch, CentOS, Debian
- Mac OS X: 10.5-10.10
Available software
Flash Center Software
Total Phase Flash Center Software is a software package that allows engineers to quickly erase, program and verify I2C and SPI-based EEPROM and Flash memory chips. In addition, non-listed building blocks can be added within minutes via the XML-based library.
Labview Driver
The Cheetah LabVIEW Driver is a free, open-source LabVIEW instrument driver for accessing the Cheetah SPI Host Adapter within the LabVIEW development environment. The driver package is Windows oriented and based on the Cheetah software library.
API's
The Cheetah SPI Host Adapter has a comprehensive API for Rosetta language bindings - 32-bit and 64-bit software API C, C#, Python 2/3, .NET, VB.NET and VB6. The Labview drivers provide all of the functionality normally available to a C language developer. Windows 10, 11, Max OS X 10 - 11, Ubunto, Fedora, SuSE and Red Hat are supported.
Accessories
10 Pin Split Grabber Clips Cable
TP240411
10-pin gripper clip split cables with the individual strands make it easy to connect the I2C/SPI devices.
€55.00*
Flash SOIC-8 Socket Board
TP280310
Flash and Burn SPI Serial Flash chips that conform to the industry standard pinout in one of these standard chip packages: SOIC-8 (150 mil) or SOIC-8W (200 mil).
€0.00*
Flash SOIC-8 Socket Board - 10/34
TP282310
The Flash SOIC-816 Socket Board - 10/34 offers the embedded developer a simple and cost-effective way to program SPI-based serial flash devices.
€115.00*
Flash SOIC-16 Socket Board - 10/34
TP282410
The Flash SOIC-16 Socket Board - 10/34 offers the embedded developer a simple and cost-effective way to program SPI-based serial flash devices
€105.00*
High-Speed SPI Flash Demo Board
TP280210
The High-Speed SPI Flash Demo Board has a slave memory device capable of communicating at 50MHz.
€80.00*
Level Shifter Board
TP240610
The Level Shifter Board enables voltage level conversion from 1.2V to 3.3V
€128.00*
