The CP1003B current measuring probe has a current measuring range of 5A/30A and 100 MHz bandwidth
Volume discounts on request!
€999.00 Net
€1,188.81 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 1 year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Description
This probe has a standard BNC connection and can be connected to any standard oscilloscope.

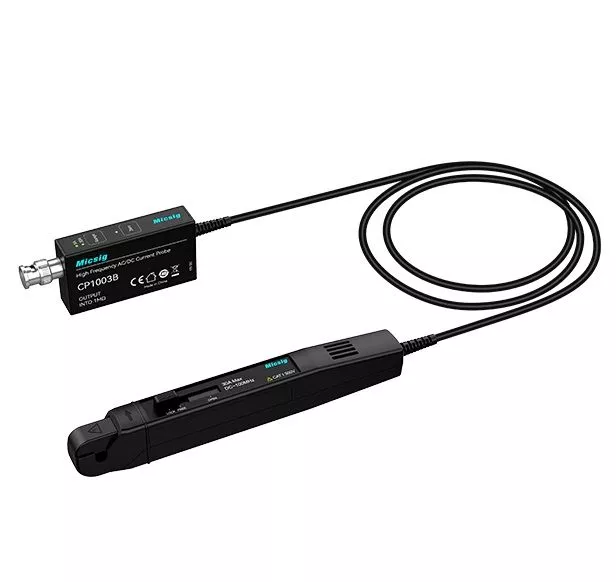

The Micsig CP1003B current probe has two current measuring ranges 5A/ 30A and has a bandwidth of 100 MHz. In addition, the current probe has 1% accuracy, an overload indicator and also offers low current measurements.
Features
- Demagnetisation and automatic zero point synchronisation completed
- Supports manual and automatic zero point calibration
- Standard USB adapter for power supply
- overload indicator with flashing light
- Calibration at the touch of a button
- overload indicator
Suitable for...
- Electronics in electric vehicles
- Design of switching power supplies
- Experiments in electronics technology
- Design of semiconductor devices
- Avionics design
- Design of inverters/transformers
- Design of electronic ballasts
- Design of industrial controls / consumer electronics
- Motor drive design
- Power electronics and electrical drive design
Technical Data
| Model |  CP503B | CP1003B |  CP1503B |
|---|---|---|---|
| Bandwidth | 50 MHz | 100 MHz | 150 MHz |
| Rise time | ≤7ns | ≤3.5 ns | ≤ 2.67ns |
| Max. Current Input | 30Arms, 50Apk | 30Arms, 50Apk | 50Apk，30Arms |
| Range | 5Arms (5A) 30Arms (30A) | 5Arms (5A) 30Arms (30A) | 5Arms（5A） 30Arms（30A） |
| Accuracy (Max continuous current @ DC and 45-66Hz) | ±1% ±1mA (5A) ±1% ±10mA (30A) | ±1% ±1mA (5A) ±1% ±10mA (30A) | ±1% ±1mA（5A) ±1% ±10mA（30A）) |
| Lowest measurable current | 1mA (5A) 10mA (30A) | 1mA (5A) 10mA (30A) | 1mA（5A) 10mA（30A） |
| Noise (20 MHz limitation) | <4mApp (5A) <30mApp (30A) | <4mApp (5A) <30mApp (30A) | ≤ 400μArms (5A) ≤ 120μArms (30A) |
| Output Sensitivity | 1V / 1A (5A, 1X) 1V / 10A (30A, 10X） | 1V / 1A (5A, 1X) 1V / 10A (30A, 10X) | 1V / 1A（5A，1X ) 1V / 10A（30A，10X） |
| Power Supply | DC 12V | DC 12V | DC 12V |
| Max. Conductor Diameter | 5mm | 5mm | 5mm |
| Cable length | 1m | 1m | 1.5m |
| Interface | Standard BNC Interface | Standard BNC Interface | Standard BNC Interface |
