The current measuring probe CP503B has a current measuring range of 6A/30A and 50 MHz Bandwidth.
Volume discounts on request!
€699.00 Net
€831.81 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 1 Jahr Garantie
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Description
This probe has a standard BNC connector and can be connected to any common oscilloscope.

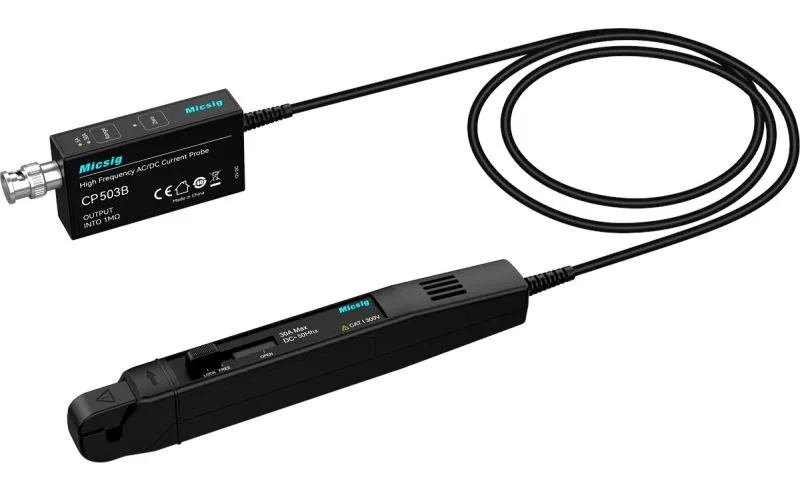

The Micsig CP503B current probe has two current measurement ranges 6A/ 30A and has a bandwidth of 50 MHz. In addition, the current probe has 1% accuracy, an overload indicator and also provides low current measurements.
Features
- Degaussing and automatic zero synchronization completed
- Supports manual and automatic zero calibration
- Standard USB power adapter
- Overload indicator with flashing light
Suitable for...
- Electronics in electric vehicles
- Design of switching power supplies
- Electronic engineering experiment
- Design of semiconductor devices
- Avionics Blueprint
- Design of inverters/transformers
- Design of electronic ballasts
- Industrial Control / Consumer Electronics Design
- Design of motor drives
- Power electronics and electric drive design
Technical Data
| Model |  CP503B | CP1003B |  CP1503B |
|---|---|---|---|
| Bandwidth | 50 MHz | 100 MHz | 150 MHz |
| Rise time | ≤7ns | ≤3.5 ns | ≤ 2.67ns |
| Max. Current Input | 30Arms, 50Apk | 30Arms, 50Apk | 50Apk，30Arms |
| Range | 5Arms (5A) 30Arms (30A) | 5Arms (5A) 30Arms (30A) | 5Arms（5A） 30Arms（30A） |
| Accuracy (Max continuous current @ DC and 45-66Hz) | ±1% ±1mA (5A) ±1% ±10mA (30A) | ±1% ±1mA (5A) ±1% ±10mA (30A) | ±1% ±1mA（5A) ±1% ±10mA（30A）) |
| Lowest measurable current | 1mA (5A) 10mA (30A) | 1mA (5A) 10mA (30A) | 1mA（5A) 10mA（30A） |
| Noise (20 MHz limitation) | <4mApp (5A) <30mApp (30A) | <4mApp (5A) <30mApp (30A) | ≤ 400μArms (5A) ≤ 120μArms (30A) |
| Output Sensitivity | 1V / 1A (5A, 1X) 1V / 10A (30A, 10X） | 1V / 1A (5A, 1X) 1V / 10A (30A, 10X) | 1V / 1A（5A，1X ) 1V / 10A（30A，10X） |
| Power Supply | DC 12V | DC 12V | DC 12V |
| Max. Conductor Diameter | 5mm | 5mm | 5mm |
| Cable length | 1m | 1m | 1.5m |
| Interface | Standard BNC Interface | Standard BNC Interface | Standard BNC Interface |
