Siglent ASP-18 Single-End TDR Probe up to 18 GHz
Description

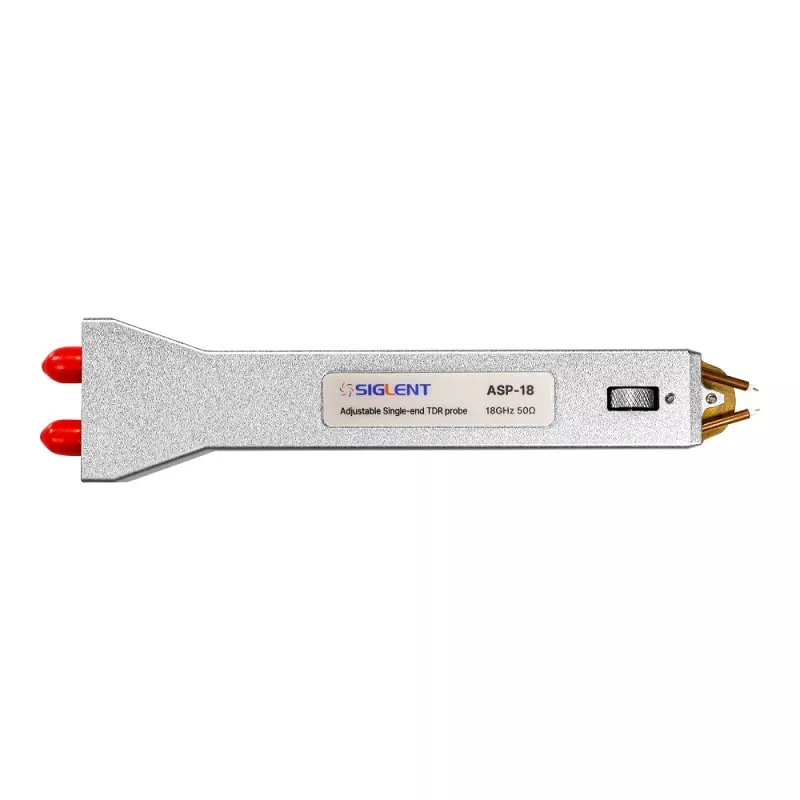

The ASP-18 is a single-ended TDR probe with a bandwidth of up to 18 GHz.
Hardware details
When it is necessary to measure the impedance of electronic components such as circuit boards and wires due to uneven spacing, appropriate test probes and fixtures must be made according to the test time. With this adjustable probe, the distance between the test probes can be adjusted between 0 mm and 6.5 mm by the built-in adjustment wheel, and the test can be performed quickly.
Technical Data
Probe model | ASP-18 |
---|---|
Probe spacing | adjustable from 0 to 6.5 mm |
Probe connection | SMA |
Bandwidth | from 0 to 18 GHz |
Probe impendence | 50 Ω |
Cable dependence | 50 ± 0.5 Ω |
Cable connection | One end of the SMA is matched to the probe, the other end can select N or SMA. |
Repeatability and stability of the probe | Test more than 100 times continuously, with a deviation (R) of 2 % or less |
Cable outer diameter | 5 mm |
