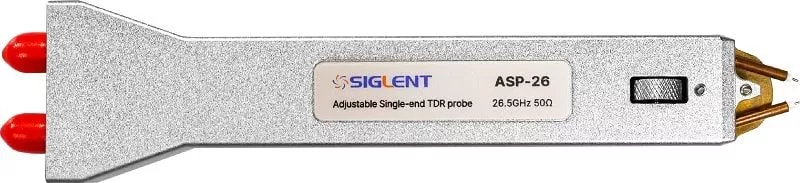

Siglent ASP-26 Single-End TDR Probe

Siglent ASP-26 Single-End TDR Probe up to 26.5 GHz

€1,135.00*

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

Free shipping

Delivery time: 3-4 weeks

Further information

Product number: ASP-26

Manufacturer: Siglent

ASP-26 Single-End TDR Probe

Offer

Description

The ASP-26 is a single-ended TDR probe with a bandwidth of up to 26.5 GHz.

Hardware details

When it is necessary to measure the impedance of electronic components such as circuit boards and wires due to uneven spacing, appropriate test probes and fixtures must be made according to the test time. With this adjustable probe, the distance between the test probes can be adjusted between 0 mm and 6.5 mm by the built-in adjustment wheel, and the test can be performed quickly.

Technical Data

Probe model	ASP-26
Probe spacing	adjustable from 0 to 6.5 mm
Probe connection	SMA
Bandwidth	from 0 to 26.5 GHz
Probe impendence	50 Ω
Cable dependence	50 ± 0.5 Ω
Cable connection	One end of the SMA is matched to the probe, the other end can select N or SMA.
Repeatability and stability of the probe	Test more than 100 times continuously, with a deviation (R) of 2 % or less
Cable outer diameter	5 mm
