The DPB1300 probe offers a maximum input differential voltage of 1300 V.
€399.00*
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time 1 to 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: DPB1300
Manufacturer: Siglent
Description

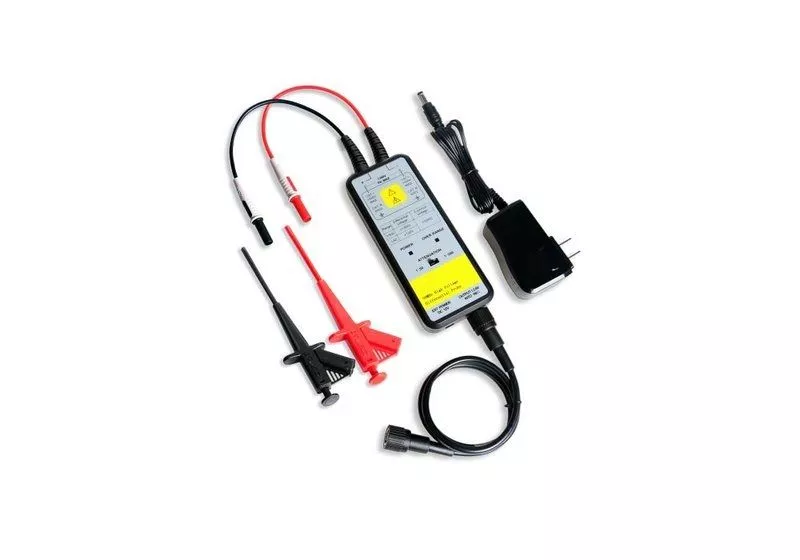

The DPB1300 probe is a differential high voltage probe with a bandwidth of 50 MHz.
Features
- Bandwidth: 50 MHz
- Rise time ≤ 7 ns
- DC accuracy ± 2 %.
- Max. Input: 600 V CATIII, 1000 V CATII
- Max. Differential test voltage (DC + peak AC): 50 X: ±130 V, 500 X: ±1300 V.
- Input impedance/capacitance: 5 MΩ/<4 pF (single-ended), 10 MΩ/< 2 pF (two inputs)
- Power supply: DC 12 V/1.2 A power supply
Technical Data
| Specifications |  CP4050 |
|---|---|
| Bandwidth | 1MHz |
| Maximum Continuous Current | 50 Arms |
| Peak Current | 140A |
| Switching Ratio | 500mV/A; 5mV/A |
| DC Measurement Accuracy | 500mV/A (20mA-14 Apk) ±3%±20mA; 50mV/A (200mA-100ApK) ±4% ±4% 200mA; 50mV/A (100A-140ApK)±15% |
| Power | 9V battery |
| Weight | 400 grams |
