The DPB5150A probe offers a maximum input differential voltage of 1500 V.
Volume discounts on request!
€1,080.00 Net
€1,285.20 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 3-4 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Description

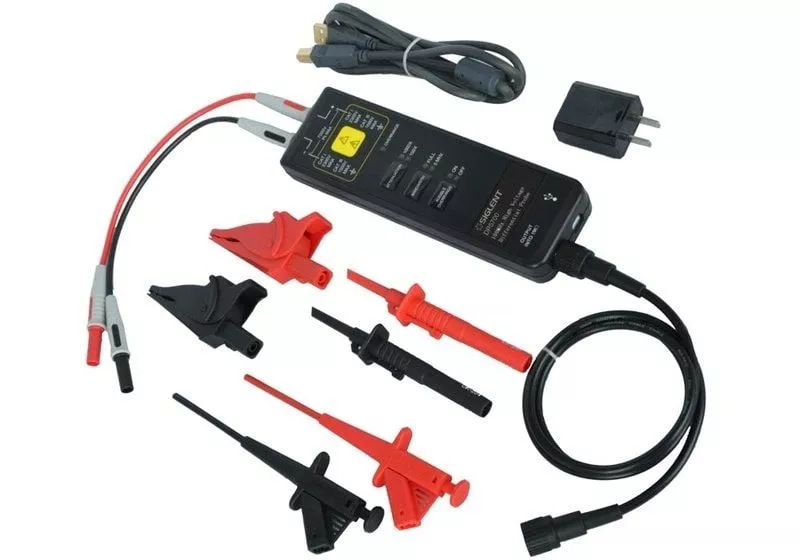

Die DPB5150A Sonde ist ein Differential-Hochspannungstastkopf mit einer Bandbreite von 100 MHz.
Features
- Bandwidth: 100 MHz
- max. input differential voltage: 1500 V (DC + AC)
- Range selection (attenuation ratio): X50 / X500
- accuracy: +/- 2 %
- Power: standard DC power supply (9 V/1 A)
Technical Data
| Specifications |  CP4050 |
|---|---|
| Bandwidth | 1MHz |
| Maximum Continuous Current | 50 Arms |
| Peak Current | 140A |
| Switching Ratio | 500mV/A; 5mV/A |
| DC Measurement Accuracy | 500mV/A (20mA-14 Apk) ±3%±20mA; 50mV/A (200mA-100ApK) ±4% ±4% 200mA; 50mV/A (100A-140ApK)±15% |
| Power | 9V battery |
| Weight | 400 grams |
