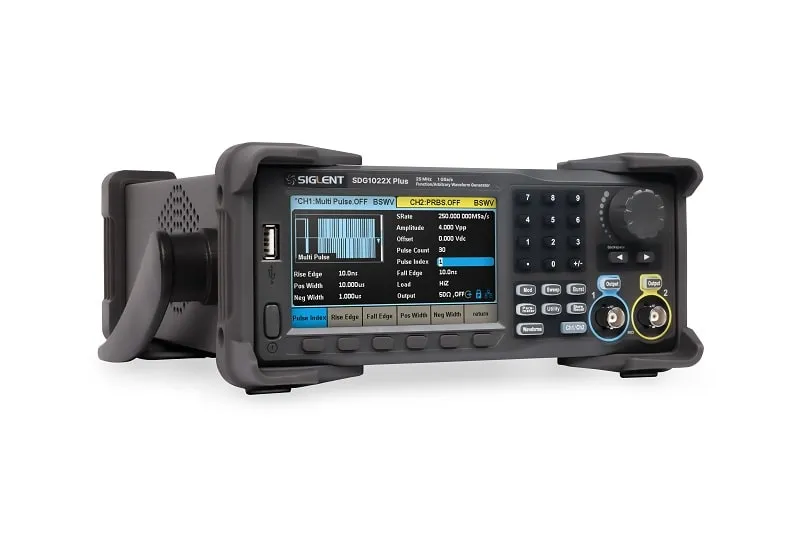

The SDG1022X Plus from Siglent is a two-channel function generator with a bandwidth of 25 MHz.
Features
- Two-channel, maximum output frequency 25 MHz, maximum output amplitude 20 Vpp
- 1 GSa/s digital-to-analogue sampling rate, 16-bit vertical resolution
- Innovative TrueArb technology based on point-by-point architecture supports all 24pts~8Mpts Arb waveforms with a sampling rate in the range of 1 μSa/s~250 MSa/s
- Supports sequence wave playback function, maximum memory depth per channel 8 Mpts
- The innovative EasyPulse technology, which is capable of generating square or pulse waveforms with lower jitter, provides wide bandwidth and extremely high precision in setting pulse width and rise/fall times
- The multi-pulse output function can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics
- Supports PRBS up to 40 Mbps
- A variety of analogue and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and burst function
- Harmonic function
- Waveform combination function
- High-precision frequency counter
- 196 built-in arbitrary waveforms
- Built-in web server supports device control via web browser
- Standard interfaces: USB host, USB device (USBTMC), LAN (VXI-11)
- 4.3" LCD display
Hardware details
SIGLENT's SDG1000X Plus series dual-channel function/arbitrary waveform generator with a maximum bandwidth of 60 MHz features excellent sampling system indicators with a sampling rate of 1GSa/s and a vertical resolution of 16 bits. Based on traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent shortcomings of DDS technology in the output of arbitrary waves and square waves/pulses. It can provide users with high fidelity and low jitter signals. In addition, the SDG1000X Plus also offers PRBS pattern generation, sequence wave output and double pulse output to fulfil a wider range of application requirements.
Product highlights
Powerful sampling system
Thanks to a 1GSa/s and 16-bit sampling system, the SDG1000X Plus achieves extremely high accuracy in both the time and amplitude domain, resulting in more accurate reconstructed waveforms and less distortion.
Innovative EasyPulse technology
When a square/pulse waveform is generated with DDS, one-clock jitter occurs if the sampling rate is not an integer multiple of the output frequency. The SDG1000X Plus EasyPulse technology overcomes this weakness in DDS designs and helps to generate square/pulse waveforms with low jitter.
Innovative TrueArb technology
For arbitrary signals, TrueArb not only provides all the benefits of traditional DDS, but also eliminates the likelihood of DDS causing serious jitter and distortion. TrueArb generates arbitrary waveforms point by point and never skips a point, so it can reconstruct all the details of the waveform as defined.
Powerful arbitrary waveform generation capability
Provides a sequence playback function to easily fulfil various testing requirements. The maximum storage depth for waveforms reaches 8 Mpts/channel.
Sequence playback function
Easily set the number of cycle times for each waveform and the order of waveform playback. Three operating modes: continuous, burst and single. Three trigger sources are available: 'internal', 'external' and 'manual'.
Built-in multi-pulse output function
The built-in double-pulse output function, combined with the Siglent oscilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.
PRBS pattern output
Provides PRBS3 ~ PRBS32 multiple pattern outputs, the rate is arbitrarily adjustable between 10-6 bps ~ 40 Mbps, and the edge is arbitrarily adjustable between 10 ns ~ 1us.
Modulation
Comprehensive modulation functions that support the common AM/DSB-AM/ FM/ PM/ ASK/ FSK/ PSK/ PWM modulation methods. Optional internal and external modulation sources.
Burst
Supports two burst modes: N-cycle and gating.
Three trigger sources are available: internal, external and manual.
Sweep
Supports two sweep modes, frequency and amplitude, to easily perform frequency and amplitude sweep tests.
Frequency counter
High-precision frequency counter that can test the frequency range of 0.1Hz~200MHz.
Built-in WebServer
Supports device control via a web browser so that testing tasks can be performed remotely.
Technical Data
| Model comparison |  SDG1022X Plus |  SDG1032X Plus |  SDG1062X Plus |
|---|---|---|---|
| Maximum output frequency | 25 MHz | 30 MHz | 60 MHz |
| Number of channels | 2 | 2 | 2 |
| Sampling rate | 1 GSa/s (4X interpolation) | 1 GSa/s (4X interpolation) | 1 GSa/s (4X interpolation) |
| Vertical resolution | 16bits | 16bits | 16bits |
| Any waveform length | 8 Mpts/CH | 8 Mpts/CH | 8 Mpts/CH |
| Maximum amplitude | ±10 V | ±10 V | ±10 V |
| Display | 4.3" display, 480 x 272 x RGB | 4.3" display, 480 x 272 x RGB | 4.3" display, 480 x 272 x RGB |
| Interface | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB host, USB device, LAN Optional: GPIB (USB-GPIB adaptor) |
