2-channel function/arbitrary generator with 16-bit, up to 5 GHz RF output, up to 12 GSa/s interpolation, large memory depth and integrated 250 GB SSD.
Volume discounts on request!
€45,800.00 Net
€54,502.00 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 3-4 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Model
Description
The SDG8002A is a professional 2-channel function and arbitrary waveform generator with 16-bit resolution and high RF performance. It delivers interpolated sampling rates up to 10 GSa/s (optionally 12 GSa/s for IQ modes) and generates RF outputs up to 5 GHz. The hardware combines a large memory depth per channel, EasyPulse technology for low-jitter pulse shapes, and single-ended and differential outputs. Operation is via the 7" touchscreen or standard interfaces (USB host/device, LAN, optional GPIB). Built-in SSD capacity and web server functions simplify data storage and remote operation.
Features
- 2 channels with single-ended and differential outputs
- 16-bit vertical resolution for high signal fidelity
- Interpolated sampling rates up to 10 GSa/s, optionally 12 GSa/s (IQ mode)
- RF output up to 5 GHz (depending on sampling rate)
- EasyPulse technology for low-jitter square/pulse signals
- Multi-pulse, multi-tone and chirp functions
- Up to 2 Gpts storage depth per channel (optional 4 Gpts)
- 196 integrated arbitrary signals and extensive sequence functions
- 7" touchscreen, integrated 250 GB SSD and web server control

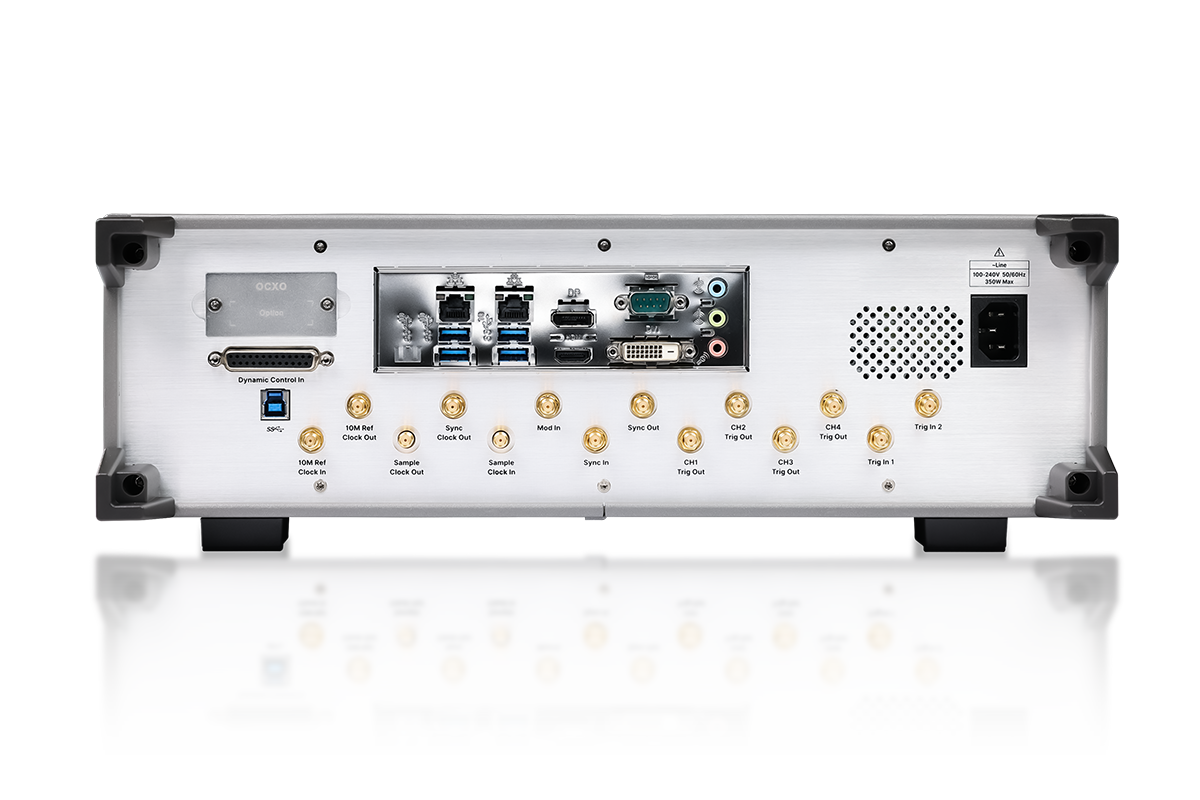

- Standard interfaces: USB Host/Device (USBTMC), LAN (VXI-11); optional GPIB
The SDG8002A is designed for demanding applications in communications technology, research, and industry. With 16-bit resolution and high interpolated sampling rates, it precisely reproduces challenging arbitrary and IQ signals. The internal modulation unit and compatibility with SigIQPro enable the generation of complex wireless standards such as Bluetooth, WLAN, and LTE. The device logic supports multi-stage sequences, multi-pulse, multi-tone, and chirp signals, allowing for time-critical test sequences and RF tests. Short pulse widths (down to the sub-nanosecond range) and low jitter make the device suitable for circuit testing and power component analysis. Extensive interfaces, including LAN remote control and an integrated SSD, enhance flexibility in laboratory and production environments. Overall, the SDG8002A combines high signal quality with practical control and storage functions for complex test setups.
Technical Data
| Device specification |  SDG8002A |
|---|---|
| Product number | SDG8002A |
| series | SDG8002A |
| Channels | SDG8002A |
| Vertical resolution | SDG8002A |
| Maximum sampling rate (interpolation) | SDG8002A |
| Maximum output frequency | SDG8002A |
| Modulation bandwidth | SDG8002A |
| Memory depth (per channel) | SDG8002A |
| Integrated mass storage | SDG8002A |
| Interfaces (Standard/Optional) | SDG8002A |
| Model comparison | SDG8002A | SDG8004A |
|---|---|---|
| Channels | 2 | 4 |
| Maximum output frequency | 4GHz @10 GSa/s, 5GHz @12 GSa/s | 4GHz @10 GSa/s, 5GHz @12 GSa/s |
| Sampling rate (interpolation) | 10 GSa/s (optional 12 GSa/s) | 10 GSa/s (optional 12 GSa/s) |
| Vertical resolution | 16-bit | 16-bit |
| Storage depth per channel | 2 Gpts (optional 4 Gpts) | 2 Gpts (optional 4 Gpts) |
