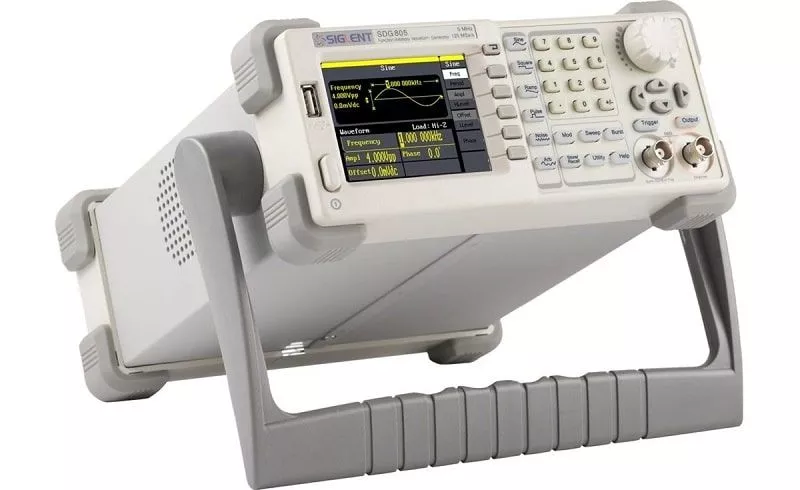

The SDG830 function generator is used to generate high quality output signals up to 30 MHz (sine) on one channel. In addition to the analog output, the devices contain a USB host and a USB device interface. The Siglent function generators have a very well thought-out and easy-to-use operation, which at the same time offers extensive convenience functions for all tasks. The menu navigation is intuitive to use and all functions and parameters are made easy to operate by a graphical representation.
Features
- Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution.
- Single channel output, 5 standard waveforms, 46 integrated arbitrary waveforms (including DC).
- Full modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst
- Innovative EasyPulse technology, can output pulses with low jitter and fast rising/falling edges
- Standard interfaces: USB device, USB host, supports U-disk memory
- 10 non-volatile memory locations for any of the user's waveforms
- Can be seamlessly connected to the SIGLENT digital storage oscilloscope
- Includes EasyWave, the powerful arbitrary waveform editing software
Hardware details
The SDG800 series function/arbitrary signal generators output signal functions up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and have a sampling rate of 125 MSa/s. They are powered by SIGLENT's EasyPulse technology, which produces low jitter and fast rising/falling edges without being affected by frequency, even at low duty cycle settings, giving users a wide choice of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
Product highlights
Edge comparison under 1KHz pulse signal
As shown in the figure, EasyPulse can maintain a fast rising/falling edge (20 ns) under a frequency of 1 kHz, while the edge of ordinary DDS is very slow.
Comparison of the edge setting range for a 1 kHz pulse signal
The EasyPulse edge setting has a wide range, while the ordinary DDS pulse edge setting is limited.
46 Types of waveforms
The SDG800 series can output 5 types of standard waveforms and 46 types of commonly used waveforms, including general waveforms, math functions, application functions, window functions, and trigonometric functions.
Multiple modulation function
The SDG800 series supports multiple modulation functions: AM, DSB - AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.
Supports EasyWave PC editing software
Siglent's SDG800 series generators support the powerful EasyWave PC processing software, which can output arbitrary waveforms with a vertical resolution of 14 bits and a wavelength of 16 Kpts. EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meet the basic needs of all engineers. It also offers a variety of drawing modes, including manual drawing, straight line drawing, coordinate drawing, and equation drawing, making it easy to create complex waveforms. Multiple document interface management enables simultaneous editing of multiple waveforms. The SDG800 series provides 10 non-volatile memory locations for any waveform, and you can also edit and store additional waveforms via EasyWave software.
Technical Data
| Model comparison |  SDG810 |  SDG830 |
|---|---|---|
| Max. Frequency (Sinus) | 10MHz | 30MHz |
| Output Channels | 1 | 1 |
| Max. Sampling Rate | 125 MSa/S | 125 MSa/S |
| Wave length | 16 kpts | 16 kpts |
| Frequency resolution | 1 μHz | 1 μHz |
| Vertical resolution | 14 bits | 14 bits |
| Waveform | Sine、Square、Ramp、Pulse、Gaussian white noise、Arbitrary waveform，46 types of built-in arbitrary waveforms | Sine、Square、Ramp、Pulse、Gaussian white noise、Arbitrary waveform，46 types of built-in arbitrary waveforms |
| Sine Wave | 1μHz ~ 10MHz | 1μHz ~ 30MHz |
| Gaussian white noise | >10MHz bandwidth（-3dB） | >30MHz bandwidth（-3dB） |
| Arbitrary waveform | 1μHz ~ 5MHz | 1μHz ~ 5MHz |
| Modulation function | AM、FM、PM、DSB-AM、FSK、ASK、PWM、Sweep、Burst | AM、FM、PM、DSB-AM、FSK、ASK、PWM、Sweep、Burst |
Standard configuration | USB Host & USB Device | USB Host & USB Device |
Amplitude (High resistence) | 4mVpp~20Vpp（≤10MHz）, 4mVpp~10Vpp（>10MHz） | 4mVpp~20Vpp（≤10MHz）, 4mVpp~10Vpp（>10MHz） |
| Square wave | 1μHz ~ 10MHz | 1μHz ~ 10MHz |
| Pulse | 500μHz ~ 5MHz | 500μHz ~ 5MHz |
| >Ramp/Triangular | 1μHz ~ 300KHz | 1μHz ~ 300KHz |
