Siglent SDS5000HD-I2S Software Option

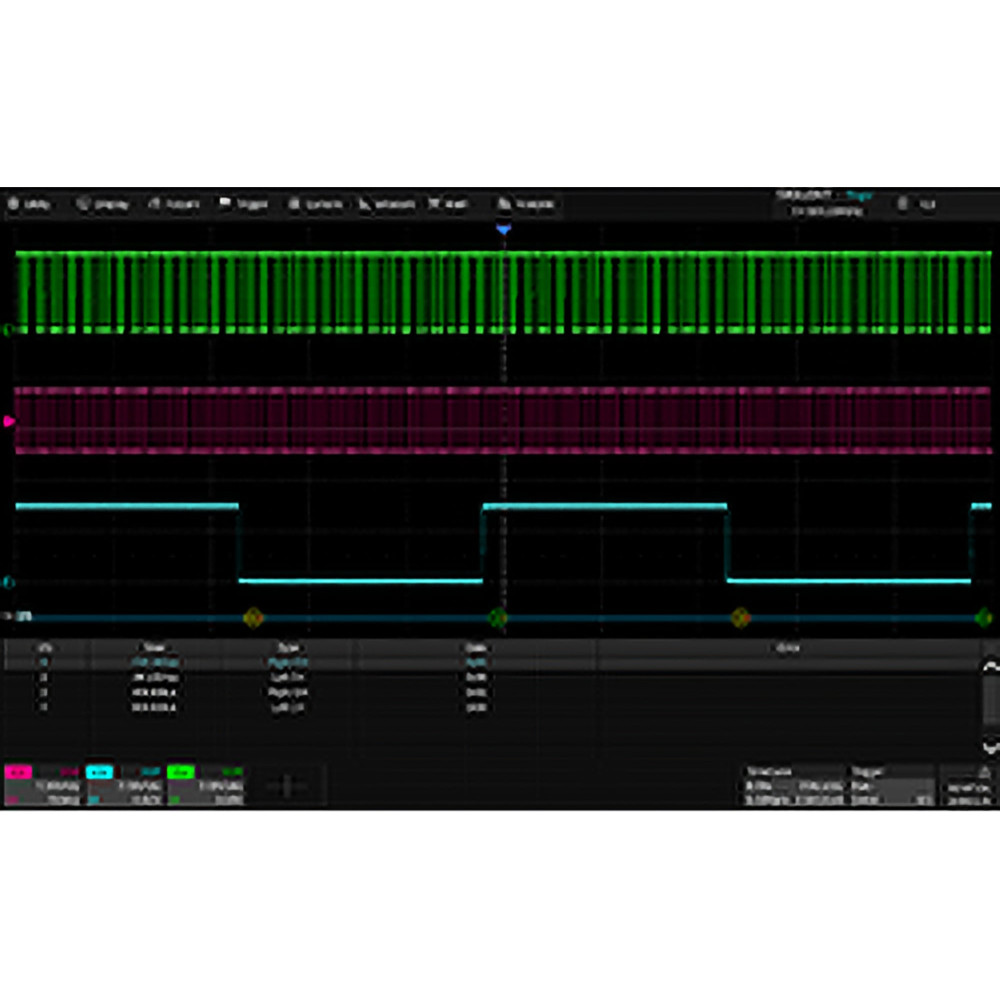

The SDS5000HD-I2S option extends SDS5000X HD oscilloscopes with specialized tools for analyzing the I2S audio bus. It displays decoded I2S frames, allows triggering on protocol events, and accelerates troubleshooting of digital audio interfaces. Typical use cases include debugging codec interfaces, validating embedded audio implementations, and analyzing synchronization or timing deviations in prototypes and production testing. The option is integrated into the oscilloscope's Serial Decode menu and utilizes existing measurement and display options, enabling developers to directly compare timing relationships between clock and data signals. The display combines time-domain-oriented waveform views with a tabular protocol display, facilitating faster identification of bit- and frame-level errors. A compatible SDS5000X HD instrument and appropriate license activation are required; the option provides a scopes-based solution for efficient I2S analysis during the development process.
