The SDS5108L digital storage oscilloscope with a bandwidth of 1 GHz has 8 analogue input channels and 12 bit ADCs with a sampling rate of up to 5 GSa/s and a maximum recording length of 2.5 Gpts per channel. The model uses Siglent's SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, a 256-step intensity gradation display and a colour temperature display mode. An innovative digital trigger system with high sensitivity and low jitter is also used. The trigger system supports several powerful trigger modes, including serial bus triggering. Features such as historical waveform recording, search and navigation functions, mask test, bode diagram and power analysis enable the acquisition, storage and analysis of extended waveform records.
Features
- 8 analogue channels + 1 external trigger
- 350 MHz bandwidth with up to 5 GSa/a sampling rate
- 12 bit ADC
- Low noise floor: 140 μVrms at 1 GHz bandwidth
- SPO technology
- Waveform capture rates of up to 160,000 wfm/s (normal mode) and 650,000 wfm/s (sequence mode)
- Supports 256-level intensity gradation and colour temperature display modes
- Up to 2.5 Gpts/channel waveform length
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols such as I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
- Function for recording historical waveforms, the maximum recorded waveform length is 170,000 frames
- Automatic measurements of over 60 parameters, supports statistics with histogram, trace, trend, gating measurement and measurements of mathematical, historical and memory traces
- Extensive data analysis functions such as search, navigate, digital voltmeter, counter, waveform histogram, bode diagram, power analysis and double pulse test
- Hardware-based high-speed average, high resolution; hardware-based high-speed mask test function with mask editor tool for creating customised masks
- External 50 MHz waveform generator is supported
- Interfaces include: 1 x USB host 3.0, USB 2.0 host, USB 3.0 device (USBTMC), 1000M LAN, HDMI, external trigger input, aux output (pass/fail, trigger output), 10 MHz input, 10 MHz output
- The integrated web server enables remote control via the LAN port using a web browser. Supports SCPI remote control commands
- Supports external mouse and keyboard
Hardware details

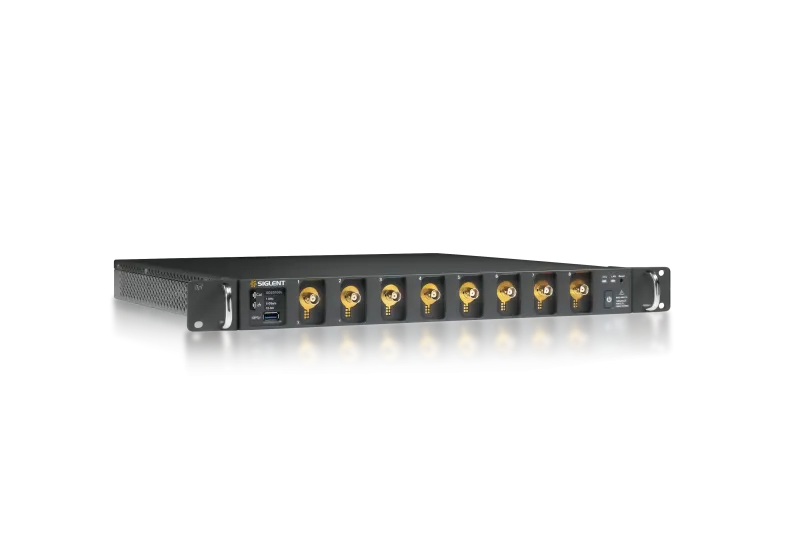

The SDS5000L is a low-profile module without an integrated display and digital input channels (MSO-capable). Several SDS5000L modules can be synchronised via a 64-channel distributor (SYN64) to form a high-channel acquisition system with up to 512 channels. Alternatively, a single SDS5000L module connected to an external display and mouse can function as a stand-alone oscilloscope. Remote control is via LAN, including web browser access. A comprehensive SCPI command set via the integrated 1000 Mbps Ethernet interface enables fast data acquisition for automated test applications.
Product highlights
Analysing the switch-on sequence
Testing the switch-on sequence ensures that the signals from different circuit modules follow the correct timing in order to avoid conflicts and guarantee system stability. As the complexity of the circuits increases, so do the requirements for the switch-on test. The SDS5000L captures the entire power-up process of all relevant signals in a single acquisition, reducing measurement time, improving efficiency and minimising errors caused by repetitive testing. For complex circuits with 8 busbars, this capability enables one-shot measurements.
Three-phase power analysis
Using an 8-channel oscilloscope for three-phase power analysis enables simultaneous connection to all phases. It measures three-phase voltage and current signals synchronously, capturing precise waveforms and parameters in real time. With the Fast Fourier Transform (FFT) function, the multi-channel oscilloscopes carry out a harmonic analysis of three-phase signals. The optional three-phase analysis software supports motor vector diagram testing, power quality evaluation, ripple analysis and efficiency evaluation.
Complete solution for testing wide bandgap semiconductors
The launch of Siglent's latest 8-channel oscilloscopes and optically isolated probes completes the final piece of the wide bandgap semiconductor testing puzzle. The SDS5000L achieves picosecond (ps) rise time and captures fast switching waveforms of silicon carbide (SiC) and gallium nitride (GaN) devices. It analyses transient voltage and current changes during switching as well as characteristics such as overshoot and ringing to optimise circuit design and signal integrity.
Flexible multi-channel high-speed acquisition system
The SDS5000L is characterised by a compact form factor with a height of only 1U, which enables the construction of flexible multi-channel acquisition systems. Multiple units are combined to create a high-speed acquisition system with up to 512 channels by triggering them with low offset synchronisation signals from the SYN64 64-channel synchronisation distributor. The host can access each unit via 1000M LAN. A full SCPI command set, LabVIEW and IVI drivers are available for easy data acquisition. The LAN connection is LXI compliant. Sampling clocks are synchronised between all devices in the test system by cascading the 10MHz input and 10MHz output clocks in a daisy chain.
Technical Data
| Device specification |  SDS5038L |  SDS5058L |  SDS5108L |
|---|---|---|---|
| Channels | 8 + EXT | 8 + EXT | 8 + EXT |
| Bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Real-time sampling rate | 5 GSa/s | 5 GSa/s | 5 GSa/s |
| Acquisition rate | 650.000 WFM/s | 650.000 WFM/s | 650.000 WFM/s |
| Vertical resolution | 12-bit ADC | 12-bit ADC | 12-bit ADC |
| Memory depth | 2.5 Gpts | 2.5 Gpts | 2.5 Gpts |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Seria | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Seria | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Seria |
| Serial trigger & decoding | Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429 | Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429 | Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429 |
