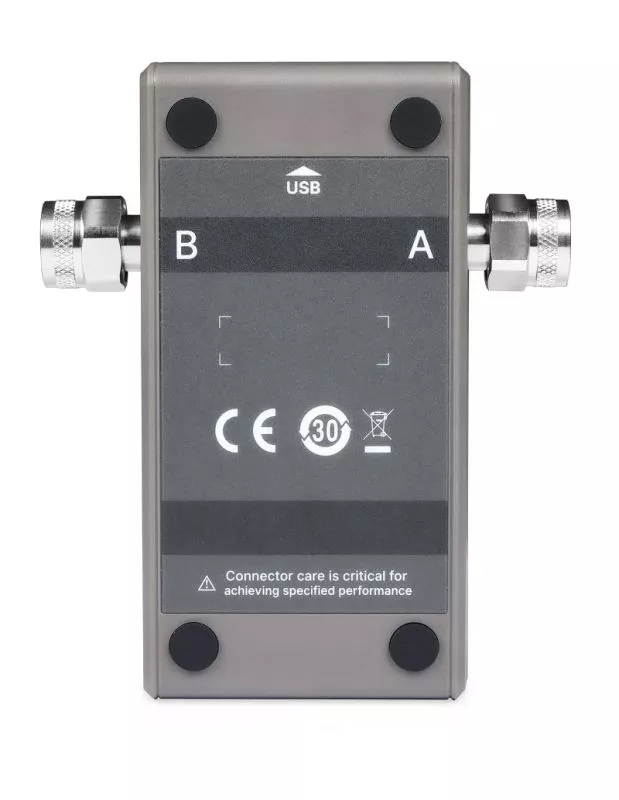

Siglent SEM5012A electronic calibrator with up to 9 GHz.
€2,622.22*
- 3 years warranty
Free shipping
Delivery time: 1 week
Further information
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: SEM5012A
Manufacturer: Siglent
Description
The SEM5012A is an electronic calibrator with a frequency range of up to 9 GHz.
Features
- Frequency range: 9kHz- 26.5 GHz
- Maximum input power level: +20 dBm
- Maximum protection DC voltage: ±35 V
- RF connector types: SMA female, SMA male, 3.5 mm female, 3.5 mm male, Type-N 50Ω female, Type-N 50Ω male
- Number of ports supported: 2.4
- Power supply control: USB 2.0
Hardware details
The SEM5000A series is suitable for calibration and error correction of vector network analysers of the SHA800A, SVA1000X, SNA5000X and SNA6000A series. The system automatically recognises the calibration, making operation simple and convenient. When calibrating with electronic calibrators, the operator only needs to make a single connection. Right at the beginning, the connection of the electronic calibrator is connected to the test port, which significantly reduces the number of connections to be made during the calibration process, making the process much easier and more efficient.
Technical Data
| Model comparison | Number of ports | Connector type | Frequency range | Connection Options |
|---|---|---|---|---|
 SEM5002A | 2 | Type-N 50Ω female
| 9 kHz-4.5 GHz 9 kHz-4.5 GHz | 020 030 |
 SEM5012A | 2 | Type-N 50Ω female SMA female | 9 kHz-9 GHz 9 kHz-9 GHz | 020 030 |
 SEM5022A | 2 | 3.5mm female | 100 kHz-13.5 GHz | 010 |
SEM5032A | 2 | 3.5mm female | 100 kHz-26.5 GHz | 010 |
 SEM5004A | 4 | Type-N 50Ω female SMA female | 9 kHz-4.5 GHz 9 kHz-4.5 GHz | 020 030 |
 SEM5014A | 4 | Type-N 50Ω female SMA female | 9 kHz-9 GHz 9 kHz-9 GHz | 020 030 |
 SEM5024A | 4 | 3.5mm female | 100 kHz-13.5 GHz | 010 |
 SEM5034A | 4 | 3.5mm female | 100 kHz-26.5 GHz | 010 |
