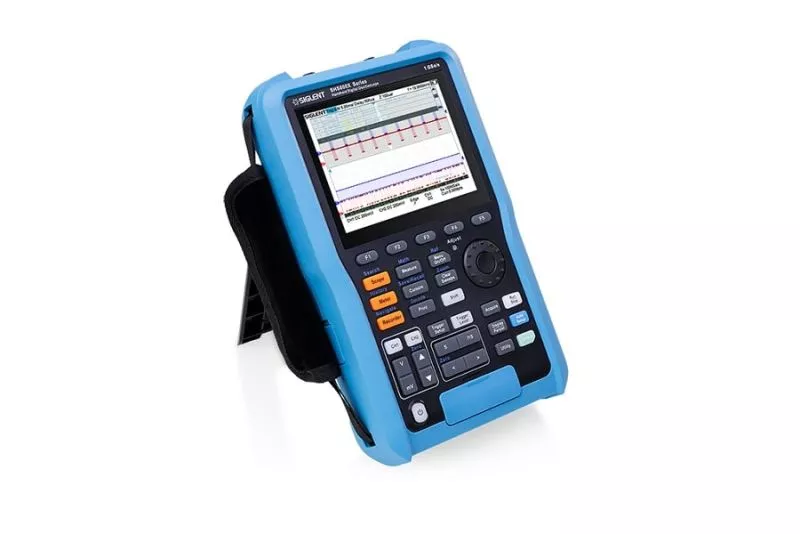

Siglent SHS810X Handheld Oscilloscope

The handheld oscilloscope SHS810X has two channels and offers a bandwidth of up to 100 MHz, as well as a memory depth of 12 Mpts.

€689.00*

  • 3 Years Warranty
  • 2.5% advance payment discount

Free shipping

Delivery time: 1 week

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: SHS810X
Manufacturer: Siglent

Description

The Handheld Oscilloscope SHS810X is a high quality two channel storage oscilloscope, which allows a mobile use due to the available battery. The device has a sampling rate of 1 GSa/s, a bandwidth of up to 100 MHz and a memory depth of 12 Mpts.

Features

  • Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions in a convenient and portable design
  • Models with 100 MHz or 200 MHz bandwidth
  • Sampling rate of 1 GSa/s (single channel), 500 MSa/s (dual channel)
  • Recording length up to 12 Mpts
  • Waveform recording up to 22 hours
  • IP protection class: IP51
  • Intelligent trigger: edge, slope, pulse width, window, runt, interval, timeout (dropout), pattern
  • Digital multimeter with 6000 counts, supports DCV, ACV, DCI, ACI, resistance, diode, capacitance, continuity test.
  • 1 Mpts FFT. Support tips and markers
  • 5.6 inch TFT LCD display with 640 * 480 resolution
  • UL2054 certified lithium battery pack, 6900 mAh capacity, external charger.
SDG2082x - Front

Hardware details

The Siglent SHS810X have several powerful trigger modes, including serial bus triggering as well as free decoding for IIC, SPI, UART, CAN, LIN bus types. The Siglent SHS810X also include history waveform recording and sequential triggering for advanced waveform recording and analysis. Another powerful addition is the new 1-million-point FFT math function, which gives the SHS very high frequency resolution when observing signal spectra. The Siglent SHS810X have built-in sample and measurement recorders. The sample recorder can achieve a maximum sampling rate of 25 kSa/s and record for up to 22 hours. The Siglent SHS810X includes a 6000-count digital multimeter isolated from the oscilloscope that can measure dc/ac voltage, dc/ac current, resistance, capacitance, diodes, and continuity, capacitance, diodes, and continuity. It also has a data logger function. The maximum voltage input for the analog channels is CATII 300 Vrms. And the maximum input for the multimeter is CATIII 300 Vrms, CATII 600 Vrms. The operating time of the supplied battery is up to 5.5 hours, the battery is charged in the device when connected to the power supply. For intensive use in the field, the purchase of one or more spare batteries is recommended. Weight of the device 1.75 kg. The Siglent SHS810X has a well-designed and easy-to-use user interface, which at the same time provides extensive convenience features for all measurement tasks.



Intelligent triggers

The following trigger types are available to the SHS810X oscilloscope

    • Edge
    • Slope
    • Pulse width
    • Window
    • History
    • Interval
    • Time lapse
    • Pattern

Product highlights

Productvideo

SHS800X - Introduction

Technical Data

Model comparison
SHS810X

SHS820X

SHS1102X

SHS1202X
Channels2222
Max. Bandwidth100MHz200MHz100MHz200MHz
Sample Rate & Memory Depth1 GSa/s & 12 Mpts (1 channel)
500 MSa/s & 6 Mpts (2 Channel)
1 GSa/s & 12 Mpts (1 channel)
500 MSa/s & 6 Mpts (2 Channel)
1 GSa/s & 12 Mpts (1 channel)
500 MSa/s & 6 Mpts (2 Channel)
1 GSa/s & 12 Mpts (1 channel)
500 MSa/s & 6 Mpts (2 Channel)
Dynamic range400,000 wfms/s400,000 wfms/s400,000 wfms/s400,000 wfms/s
Isolated channelsXX
Max. Input Voltageoscilloscope
CAT II 300 Vrms betw. BNC signal & Earth
CAT II 30 Vrms between. BNC GND & Earth
CAT II 300 Vrms between. BNC signal & BNC GND


Multimeter
CAT III 300 Vrms, CAT II 600 Vrms
oscilloscope
CAT II 300 Vrms betw. BNC signal & Earth
CAT II 30 Vrms between. BNC GND & Earth
CAT II 300 Vrms between. BNC signal & BNC GND


Multimeter
CAT III 300 Vrms, CAT II 600 Vrms

Oscilloscope
CAT III 600 Vrms, CAT II 1000 Vrms between BNC signal & Ground
CAT III 600 Vrms, CAT II 1000 Vrms between BNC GND & Ground
CAT III 300 Vrms between BNC Signal &BNC GND

Multimeter
CAT III 600 Vrms, CAT II 1000 Vrms

Oscilloscope
CAT III 600 Vrms, CAT II 1000 Vrms between BNC signal & Ground
CAT III 600 Vrms, CAT II 1000 Vrms between BNC GND & Ground
CAT III 300 Vrms between BNC Signal &BNC GND

Multimeter
CAT III 600 Vrms, CAT II 1000 Vrms

Accessories

BAG-H1
BAG-H1 Carrier Bag
BAG-H1
The BAG-H1 is a carrying bag for selected Siglent series.

€39.00*
SHS-BTA
SHS-BAT Battery
SHS-BAT
The SHS-BAT from Siglent is a replacement battery for the SHS1000 and SHS800 series.

€45.00*
RRC2057
RRC2057 Battery
RRC2057
The RRC2057 from Siglent is a replacement battery for the SHS1000X and SHS800X series.

€99.00*
GSCH4000A
GSCH4000A Battery Charger
GSCH4000A
The GSCH4000A Battery Charger is for the RRC2057 Siglent Battery.

€198.00*
SCD600mA
SCD600mA Current Measurement Adapter
SCD600mA
The SCD600mA current measuring adapter has a measuring range of up to 600 mA.

€11.00*
SCD10A
SCD10A Current Measurement Adapter
SCD10A
The SCD10A current measuring adapter has a measuring range of up to 10 A.

€11.00*
