SP6150A passive probe with a bandwidth of 1.5 GHz.
Volume discounts on request!
€230.00 Net
€273.70 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 to 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Free shipping
Description

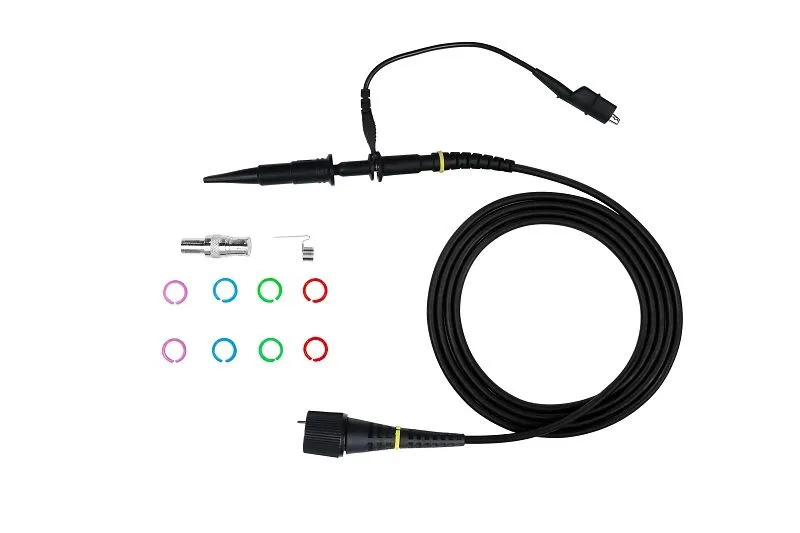

The Siglent SP6150A passive high-frequency probe with a bandwidth of 1.5 GHz and an attenuation ratio of 10:1 is ideal for demanding measurement tasks. Thanks to its low capacitance and inductance, it minimises the load on the measurement setup and thus enables high-precision signal measurements. With an input resistance of 500 Ω and an oscilloscope adjustment of 50 Ω, the probe is optimised for common measuring devices. The compact 3.8 mm probe tip enables better access to narrow components. As a passive probe, it is ready for operation without an additional power supply. Automatic detection by Siglent oscilloscopes simplifies the measurement setup.Features
- 2x USB 3.0 Host, 4x USB Host 3.1 Gen 1, USB 2.0 device (USBTMC), 2x 1000M LAN (VXI-11+SCPI, Telnet(5024)+SCPI, Socket(5025)+SCPI, LXI, WebServer)
- 1x DVI-D: up to 1920x1200 at 60Hz, 1x DP 1.2: up to 4096x2304 at 60Hz, 1x HDMI 1.4: up to 4096x2160 at 60Hz
- External trigger input, aux output (TRIG OUT, PASS/FAIL), 10 MHz input, 10 MHz output
- Microphone input, audio output
Technical Data
| Specifications |  SP6150A |
|---|---|
| Probe bandwidth | > 1.5 GHz |
| Attenuation ratio (DC) | 10:1 |
| Input resistance | 500 Ω |
| Input capacitance | 1.8 pF |
| Oscilloscope input coupling | 50 Ω |
| Max. Input voltage | 8,5 V |
| Cable length | 1,3 m |
