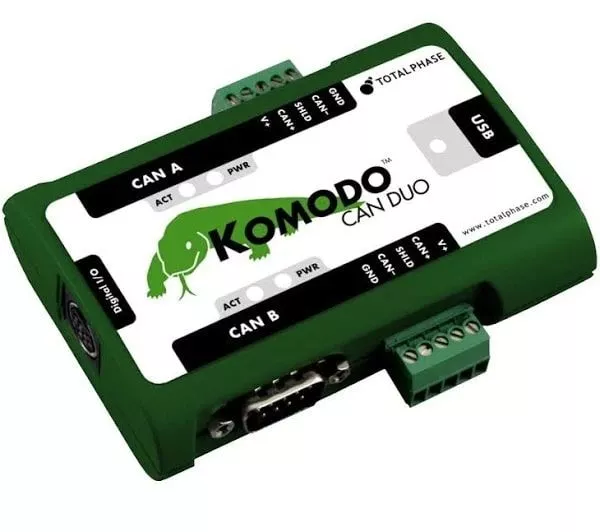

Total Phase Komodo CAN Duo Interface

The Komodo CAN Duo is a powerful USB-to-CAN adapter and analyzer that enables active CAN data transmission as well CAN bus monitoring

€599.00*

Content: 1

In Stock, Delivery time: 1 - 3 days

Further information
Model
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: TP360110
Manufacturer: Total Phase

Description

The Komodo CAN Duo is a powerful USB-to-CAN adapter and analyzer. It is an "all in one" tool that enables active CAN data transmission as well as distortion-free CAN bus monitoring. The portable interface can be easily integrated into end user systems and is therefore a flexible and scalable solution for a large number of applications in the automotive, automation, building services, military and medical electronics sectors. The Komodo Duo can stimulate or monitor up to 2 different buses. It offers cross-platform support for Windows, Linux and MAC OSX and includes an API that is included free of charge for easy integration.

Main properties

  • Dual channel: two independent adaptable CAN channels
  • Transfer rate up to 1 Mbit/s
  • Independent galvanic isolation per CAN channel
  • 8 configurable GPIOs
  • USB 2.0 full speed; bus powered
  • Free software and API
  • Cross-platform support: Compatible with Windows, Linux and Mac OS X

Real-time monitoring and flexible design

Monitor up to 2 different CAN buses and see the data as it is collected. Each channel of the Komodo interface is independently galvanically isolated and capable of acquiring CAN data at up to 1 Mbit/s.
Independently configure each CAN channel as either an adapter or a non-intrusive analyzer. Communicate and/or monitor two different CAN buses with a single Komodo interface.

Fully featured CAN adapter & GPIO

The Komodo CAN Solo Interface can act as a CAN node to send and receive messages on up to two different CAN networks. Communicate with any type of CAN network, from automotive systems to industrial controls. The Komodo interface operates at a maximum bit rate of 1 Mbps. The 8 GPIO pins can be configured for input or output, allowing the Komodo interface to communicate with external logic.
GPIO

Cost-efficient and future-proof

The low cost of the Komodo CAN Solo allows companies to provide each developer with their own interface, so problems can be identified and fixed quickly and easily. Less time spent means higher productivity, projects are completed on time and within budget.
The Komodo CAN Solo Interface is regularly supplied with updates via USB.
New software functions are always available promptly and can be downloaded free of charge become.

Available software

Productvideo

Analysis and recording with the data center software
Komodo CAN Duo Interface - First Steps
Komodo GIU with the CAN/I2C Activity Board

Technical Data

Device specificationKomodo Can Duo Interface
Komodo CAN Duo Interface

Maximum Bit Rate

1Mbps

Monitoring of 2 CAN buses

Yes

GPIO pins configurable for I/O

Yes, 8

Operating temperature

-40°C to +85°C (non-condensing)

Accessories

Can Terminator
Can Terminator
TP360310
The CAN terminator is a DB9 male connector that terminates the CAN lines with a 120 ohm resistor.

€22.00*
CAN Split Cable
CAN Split Cable
TP360410
The split CAN cable with a 2 DB9 male connector on one end and a 1 DB9 female connector on the other end is used to connect a CAN network.

€48.00*
CAN/I2C Activity Board Pro
CAN/I2C Activity Board Pro
TP360210
The CAN/I2C Activity Board Pro is the ideal tool to test and verify CAN and I2C slave devices

€170.00*
Kabel-mit-Prüfklemmen
Total Phase I/O cable with test clips
TP320710
The digital I/O cable features clamp-on test probes to connect the digital I/O interface to external logic.

€109.00*
