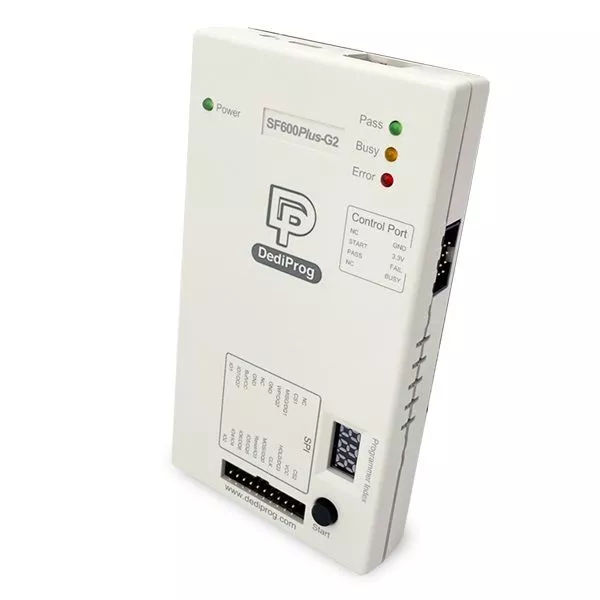

Dediprog SF600Plus-G2 Serial Flash Programmer

The Dediprog SF600Plus-G2 is a high-speed serial NOR/NAND flash programmer with in-circuit programming.

€380.00*

Content: 1

In Stock, Delivery time: 1 - 3 days

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: SF600Plus-G2
Manufacturer: Dediprog

Description

SF600Plus-G2 is a high-speed serial NOR/NAND flash programmer with in-circuit programming (updating the SPI flash soldered on the board) and standalone programming (updating the SPI flash in the socket adapter). With DediProg SF software and USB, it provides a user-friendly interface and powerful functions.

The newly developed SF600Plus-G2 is the improved version of SF600 and SF600Plus, which significantly increases the programming efficiency with the SOC architecture of FPGA. In addition to the original functions of the SF600/S600Plus, it can also support SPI NAND, which is convenient for the developer in programming.

Hardware Features

  • High-speed USB and high SPI performance; the USB and standalone mode support any volume of SPI flash on the market.
  • Supports 1.2V low voltage IC.
  • Start button function: can batch when connected to the software.
  • Protection against signal conflict.
  • Multi-programmer capability via USB.
  • Programmer index indicators on the programmer.
  • Supports 2 CS pins.
  • Stand-alone mode: support start button programming and control port to remove control programming.
  • Supports WIN8 and above.
  • Supports both 32bit and 64bit OS.
  • Supports Single/Dual Multiple Dies.
  • Supports Single/Dual/Quad/Octal. IO.
  • Can be upgraded to SF600Plus-G2U.

Software Features

  • PC based SF600-G2 programming software with different modes:
    • Engineering Mode features advanced developer and repair functions
    • Production mode for simultaneous control of multiple SF600-G2 programmers
    • Command line for control of the SF600-G2 by user-defined software
    • Supports Windows 2003 (32 bit and 64 bit) and higher

Applications

  • Updating of the serial flash soldered to the board with or without power supply in standalone or PC GUI mode
  • Prototype or low volume production, in-system or socket programming
  • Control application, controller reset and MOSFET isolation status
  • Update of internal flash (Ezport MCF5223, MCF5221, MCF5213) or external SPI flash (SBF interface MCF5445, MCF5227) of Freescale MCU

Hardware Details

SF600Plus-G2 is equipped with an ISP header. Through a corresponding connector, the user can connect the programmer and control the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the pinout of the SF600Plus-G2 2x10 header. DediProg also provides the SF600Plus-G2 2 piece ISP cable used to connect the programmer to the 2x10 and 2X6 (2.54mm) ISP header on the board, see Table 2: 2x10 and Table 3: 2x6 for the SF600Plus-G2 ISP cable pinout.

To get a clear understanding of the different ISP or backup boot methods and the different reference schemes, please download the application notes AN0103 and AN0106 under documentations.

ISP Header Pin Out (2x10)
1NCCS22
3CS1VCC4
5MISO/DQ1HOLD/DQ36
7WP/DQ2CLK8
9GNDMOSI/DQ010
11NCRESET/IO312
13GNDIO5/DQ514
15BufVCC IO6/DQ616
17IO7/DQ7IO4/DQ418
19IO1IO220
ISP Cable Connector Pin Out (2x10)
1NCCS22
3CS1VCC4
5MISO/DQ1HOLD/DQ36
7WP/DQ2CLK8
9GNDMOSI/DQ010
11NCRESET/IO312
13GNDIO5/DQ514
15BufVCC IO6/DQ616
17IO7/DQ7IO4/DQ418
19IO1IO220
ISP Cable Connector Pin Out (2x6)
1VppCS22
3CS1Vcc4
5MISO/DQ1Hold/DQ36
7Wp/DQ2CLK8
9GNDMOSI/DQ010
11NCReset12
Control Port
NCGND
Start3.3V
PASSFAIL
NCBUSY

Performance

Reference ICDensityProgram+Verify
(25Mhz,Quad)
W25Q80JVSIQ8Mb6.3
W25Q16VSIG16Mb12.5
W25Q32VFIG32Mb18.7
W25Q64FVBIG64Mb22.2
MX25L12873FM2I128Mb41.9
MX25L25645GMI256Mb 46.6
MX25L51245GMI512Mb96.8
MX66L1G45JMI081Gb203.0
Reference ICDensitySF600/
SF600Plus
SF700SF600Plus-G2
W25Q80JVSIQ8Mb2.52.41.5
W25Q16VSIG16Mb2.42.31.4
W25Q32VFIG32Mb3.33.01.8
W25Q64FVBIG64Mb4.94.52.5
MX25L12873FM2I128Mb8.27.34.1
MX25L25645GMI256Mb15.814.07.5
MX25L51245GMI512Mb29.626.113.8
MX66L1G45JMI081Gb57.250.326.2

Softwaremodes

Supported ICs

With the help of the Flash programming software of the SF series a multitude of SPI Flashs can be easily flashed. With our selection wizard you get an insight which ICs are already supported.


Productvideo

SF600 Series - Setup Tutorial

Technical Data

Model ComparisonDediprog SF100 Programmer small
SF100
Dediprog SF600 Plus Programmer small
SF600 Plus
Dediprog-SF600-G2-min-removebg-preview
SF600-G2
Dediprog NuPROG-E2 Universal Programmer small
NuProg-E2
Supported IC TypesSPI NOR FlashSPI Flash NORSPI NOR & SPI NAND and SPI Octal NORUFS (Up to180 MB/s) eMMC (Up to 100 MB/s)
In System ProgrammingX

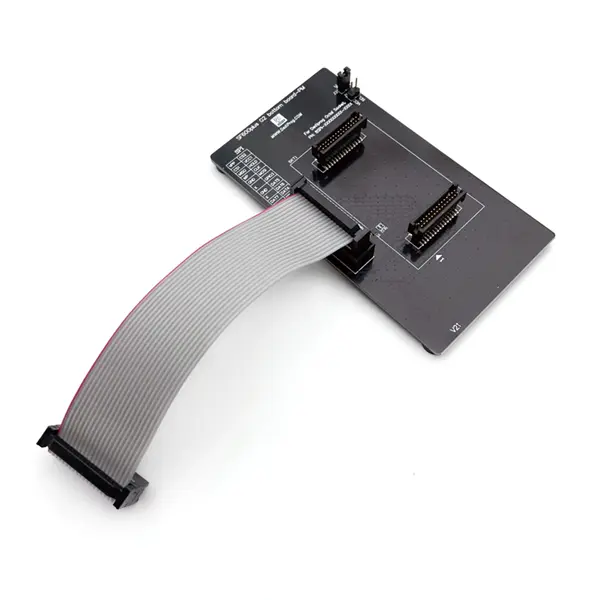

Socket Programming✓ With Bottom Board
(Option)
✓ One Programming Site✓ One Programming Site✓ One Programming Site
StandaloneXX
SoftwareSF SoftwareSF SoftwareSF SoftwareDediware
3rd Party IntegrationCLICLIATE Port, CLIX
