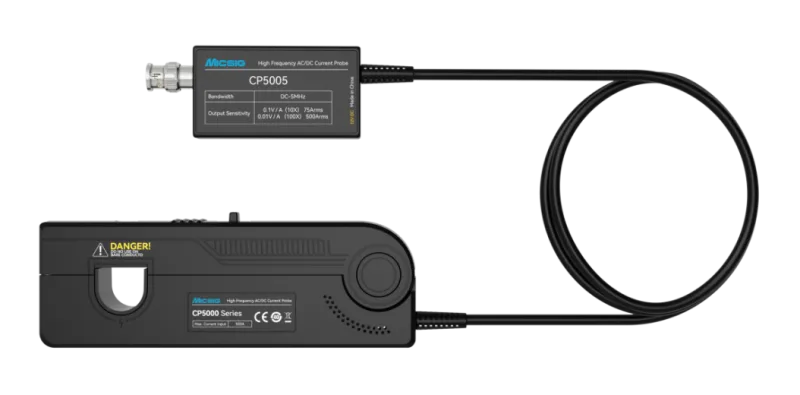

The Micsig CP5005 measures up to 500 Arms (750 Apk) without breaking the circuit. It is the highest-current model in the CP series and is built for motor drives in electric vehicles, inverters and industrial power supplies.
A 20 mm jaw clamps around bus bars and phase conductors. Two ranges, 75 A and 500 A, let you look at small signals and high-current transients with the same probe. The output is a standard BNC connector, so the CP5005 works with your existing oscilloscope.
Features
- 500 Arms / 750 Apk maximum input: The highest current rating in the Micsig CP series.
- 20 mm jaw opening: Clamp-on measurement around bus bars and phase conductors.
- Two current ranges: 75 A range (1 V/10 A, 10X) and 500 A range (1 V/100 A, 100X).
- 5 MHz bandwidth: Rise time ≤70 ns for switching transients.
- ±1% accuracy: Specified at DC and 45–66 Hz.
- Low noise floor: <2.2 mArms in the 75 A range. Minimum measurable current: 10 mA.
- One-touch degauss and auto-zero: Zero the probe before each measurement with a single button.
- Overload indicator and over-current alarm: Warns when the input exceeds the probe's range.
- Standard BNC output: Micsig states compatibility with oscilloscopes of all brands.
Technical Data
| Model | CP5005 | CP3008 | CP3005 | CP1510 |
|---|---|---|---|---|
| Bandwidth | 5MHz | DC-8MHz | DC-5MHz | DC-10MHz |
| Rise time | ≤70 ns | ≤ 53ns | ≤ 70ns | ≤ 46ns |
| Measuring range | 75Arms(75A) | 50Arms（50A） 300Arms（300A） | 50Arms（50A） 300Arms（300A） | 30Arms（30A） 150Arms（150A） |
| Max. Input current | 500 Arms / 750 Apk | 300Arms，500Apk | 300Arms，500Apk | 150Arms，300Apk |
| Accuracy (Max continuous current @ DC and 45-66Hz) | ±1% ±10mA（75A), ±1% ±100mA（500A） | ±1% ±10mA（50A) ±1% ±100mA（300A） | ±1% ±10mA（50A) ±1% ±100mA（300A） | ±1% ±10mA（30A) ±1% ±100mA（150A） |
| Lowest measurable current | 10mA（75A) | 10mA（50A) 100mA（300A） | 10mA（50A) 100mA（300A） | 10mA（30A) 100mA（150A） |
| Noise | <2.2mArms（75A） | <1.5mArms（50A） <12mArms（300A） | <1.5mArms（50A） <12mArms（300A） | <1.5mArms（30A） <10mArms（150A） |
| Output sensitivity | 1V / 10A（75A，10X ) | 1V / 10A（50A，10X ) 1V / 100A（300A，100X） | 1V / 10A（50A，10X ) 1V / 100A（300A，100X） | 1V / 10A（30A，10X ) 1V / 100A（150A，100X） |
| Max. Conductor diameter | 20 mm | 20mm | 20mm | 20mm |
| Power supply | DC 12V | DC 12V | DC 12V | DC 12V |
| Interface | Standard BNC | Standard BNC | Standard BNC | Standard BNC |
