Description

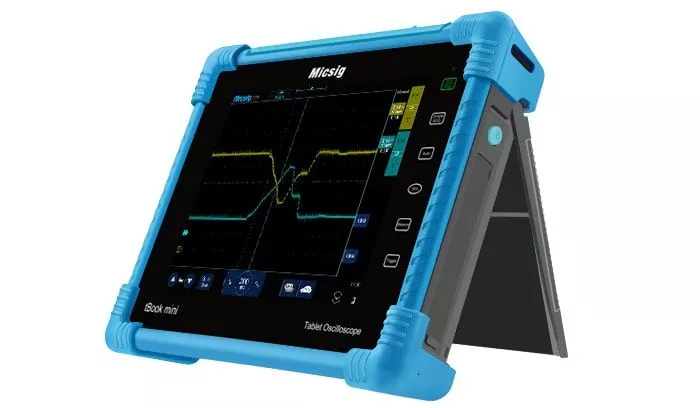

The TO1104 Plus is an oscilloscope from the Miscig tBook mini series, an innovative oscilloscope series that is the first in the world to be operated purely via touch. If models with a rotary encoder are required, the STO1000C/E series is available, which is suitable both as a table-top oscilloscope and for mobile applications due to the additional analogue keys. An adapted version of Linux is used as the operating system, which means that the device has great system compatibility. In combination with battery operation and the touch screen, the TO1104 Plus oscilloscope is ideal for mobile use as well as for use as a desktop oscilloscope. The TO1104 Plus has a sampling rate of up to 28 Mpts memory depth, a signal acquisition rate of up to 130,000 wfm / s (segmented memory mode), 4 channels, 100 MHz bandwidth and 1 GSa / s sampling rate. In addition, it has a touch LCD display with a resolution of 800 * 600 pixels, which supports multi-touch operation.
The touch operation of the Micsig TO1104 is intuitive. This simple operation has of course become indispensable for users of smartphones and tablets, but it is new and innovative for an oscilloscope.
Due to the digital trigger system, the trigger jitter is very low and the triggering is highly precise. The oscilloscope also supports serial bus triggers and bus decoding.
Features
- Compact oscilloscope with 4 channels
- Bandwidth 100 MHz
- 1 GS / s real-time sampling rate.
- Linux operating system
- Replaceable battery
- Up to 28 Mpts memory depth.
- 130,000 Wfms / s acquisition rate - 270,000 Wfms / s (Segmented Memory Mode).
- 8 "/ 8" industrial LCD, 800x600 resolution, capacitive multi-point touchscreen.
- Interfaces: Ethernet / LAN, WiFi, USB 2.0 host & device; HDMI.
- Connection for probe calibration.
- Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
- PC software, iOS and Android mobile app for remote control of the oscilloscope.
- Built-in 8G memory for waveform and video recording.
- Lithium battery, battery life up to 5 hours.
- Screen sharing via WiFi, USB and HDMI
Oszilloskop Functions
8GB storage space
Built-in 8 GB memory & intuitive file management system.
Touch-Screen Keyboard
Software keyboard for the usual fast input with smart devices.
Many trigger functions
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for the most diverse measurement requirements.
28 Mpts memory depth
Allows you to zoom in on an area of the acquired signal using the touch screen.
Mouse operation
Micsig's oscilloscopes can also be easily controlled using a standard USB mouse.
Automatic scaling
Automatically adjusts the offset in real-time according to the magnitude and frequency of the signal.
Technical Data
| Model comparison |  TO1104 |  TO1004 |  STO2202C Plus |
|---|---|---|---|
| Operating system | Linux | Android | Android |
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Channels | 4 | 4 | 2 |
| Memory depth | 70 Mpts | 220 Mpts | 280 Mpts |
| Signal acquisition rate | 130.000 wfm/s | 130.000 wfm/s | 130.000 wfm/s |
| Resolution | 8 bit | 8 bit | 8 bit |
| Display | 8 inch TFT LCD | 10.1 inch TFT LCD | 8 inch TFT LCD |
| Sampling rate | 1 GSa/s | 1 GSa/s | 2 GSa/s |
| Rotary encoder | X | X | ✓ |
| Internal memory | 8 GB | 32 GB | 8 GB |
| Interfaces | Wi-Fi, USB 2.0 Host, USB Type-C, HDMI | USB 3.0/2.0 Host & Device, Ethernet/LAN, Wifi, Trigger Output, Grounding | USB 2.0 Host & Device, Ethernet/LAN, Wifi |
| Safety | CAT I 300 Vrms (1-MΩ input) | CAT I 300 Vrms (1-MΩ input) | CAT I 300 Vrms (1 MΩ input) |
| Trigger modes | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. |
| Bus decoding | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) |
| Battery | 8000 mAh lithium-ion battery | 7500 mAh Lithium-ion battery | 7500 mAh Lithium-ion battery |
