Siglent SPS5041X DC laboratory Power Supply

The SPS5041X is a single channel DC laboratory power supply with a max. output power of 360W.


  • 3 Years Warranty
  • 2.5% advance payment discount
Free shipping

Delivery time: 1 week

Further information
Request a quote
Product number: SPS5041X
Manufacturer: Siglent


The Siglent SPS5041X is a single channel programmable DC switching power supply that offers a range of 0-40V 0-30A with a maximum output power of 360W.


  • Rated output voltage 40V, 50V, 80V, 160V
  • Rated output power 180W, 360W, 720W, 1080W
  • Wide voltage and current range, high efficiency power supply
  • CV, CC priority mode selection, better protection of the device under test
  • Load transient recovery time (load change from 50~100%) <1ms
  • Adjustable slew rate of output voltage and current
  • Set and read back resolution: 1 mV, 1 mA
  • Internal output discharge circuit, for faster output voltage step-down
  • Remote voltage measurement
  • List function up to 50 steps (By manual input or imported via USB)
  • External analog voltage and resistance control of voltage or current output
  • External voltage and current monitoring output
  • OVP, OCP, LPP, OTP protection.
  • 2.4-inch OLED liquid crystal display with high brightness 170-degree viewing angle
  • Standard interface USB interface LAN Analog control interface
  • Optional USB GPIB module
  • 1/2, 1/3, 1/6 mounting case size
  • Embedded web server provides remote control via web browser without the need for drivers or software

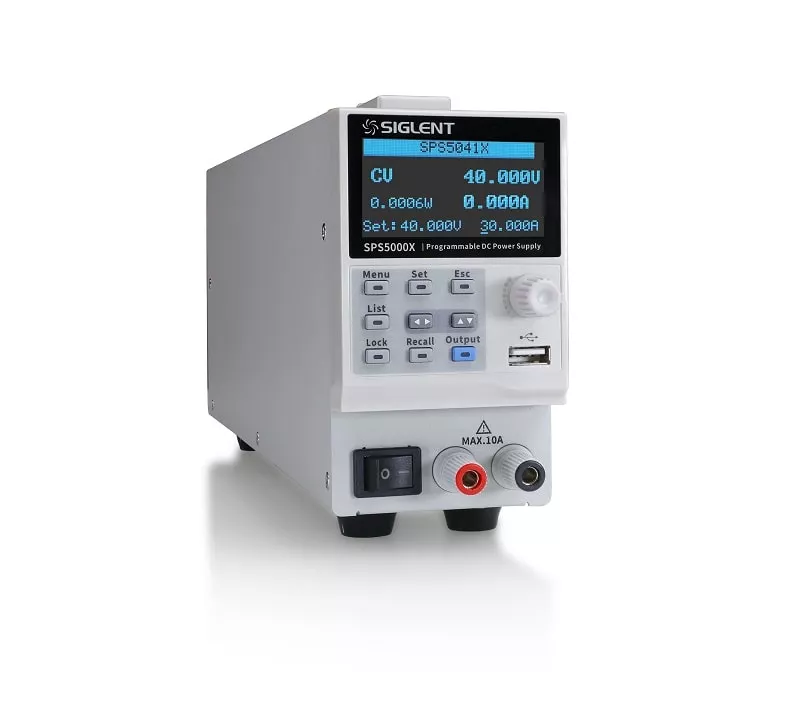

SPS5041X -Front

Hardware details

The SPS5000X programmable DC switch mode power supply series offer a wide range of output power with single and multi-channel output configurations and constant power capabilities. The series includes 16 models with voltages up to 160 VDC and power ratings up to 1080 W. The SPS5000X power supplies can be connected in series with 2 units or in parallel with 3 units. This allows for 0-320V and 0-270A and a maximum combined power of 3240 W. The SPS5000X feature a 2.4-inch high brightness OLED display and a user-friendly computer interface for easy control and power monitoring. Further, the power supplies offer high-resolution voltage and current settings, adjustable slew rates, list sequence programming via the front panel or standard LAN/USB interface, analog control, and overvoltage, current, power and temperature protection. The SPS5000X Series is the ideal choice for a variety of demanding markets, including commercial industrial, education, energy and power generation, general laboratory testing, LED lighting industry, and automotive electronics.

Product highlights


SPS5000X - Introduction

Technical Data


SPS5000X-PAC Cable
The SPS500X-PAC is a parallel cable for the SPS5000X series of Siglent

SPS5000X-SEC Cable
The SPS500X-SEC is a cable for the SPS5000X series from Siglent.
