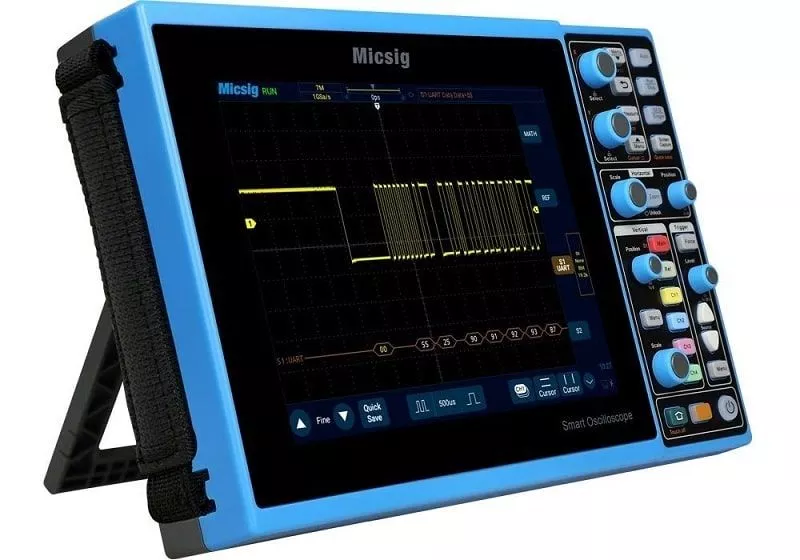

Micsig STO2302C Tablet Oscilloscope

The STO2302C is an tablet oscilloscope with classic control knobs and touch screen.
Product is discontinued
  • 3 years warranty
  • 2.5% advance payment discount

Free shipping

No longer available

Further information
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: STO2302C
Manufacturer: Micsig
  • This product has been discontinued by the manufacturer

Description

The STO2302C is an oscilloscope from the Miscig tBook series, an innovative oscilloscope series that is the first in the world to be operated purely via touch. An adapted version of Android is used as the operating system, which makes the device responsive and user-friendly. The familiar rotary encoders are also installed in order to provide all users with the best possible ease of use. If models without a rotary encoder are required, theTO1000 series is available, which achieves very compact dimensions due to the lack of a rotary encoder. In combination with battery operation and the touch screen, the STO2302C Plus oscilloscope is ideal for mobile use as well as for use as a desktop oscilloscope. The STO2302C Plus has a sampling rate of up to 280 Mpts memory depth, a signal acquisition rate of up to 270,000 wfm / s (segmented memory mode), 2 channels, 300 MHz bandwidth and 2 GSa / s sampling rate.

The touch operation of the Micsig STO2302C is intuitive. This simple operation has of course become indispensable for users of smartphones and tablets, but it is new and innovative for an oscilloscope.

Due to the digital trigger system, the trigger jitter is very low and the triggering is highly precise. The oscilloscope also supports serial bus triggers and bus decoding.

Features

  • Compact oscilloscope with 2 channels
  • Bandwidth 300 MHz
  • 2 GS/s real time sampling rate.
  • Replaceable battery
  • Up to 280 Mpts memory depth.
  • 130,000 Wfms/s acquisition rate - 270,000 Wfms/s (Segmented Memory Mode).
  • 8"/20.3 cm industrial LCD, 800x600 resolution, capacitive multi-point touch screen.
  • Android system, fast response to operation.
  • Interfaces: Ethernet/LAN, WiFi, USB 2.0 host & device; HDMI.
  • Connection for probe calibration.
  • Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
  • PC software, iOS and Android mobile app for remote control of the oscilloscope.
  • Built-in 8Gbyte memory for waveform and video recording.
  • Lithium battery, battery life up to 5 hours.
  • Screen sharing via wifi, USB and HDMI.
Micsig STO2302C FrontMicsig STO2302C Accessories

Oscilloscope Features

Productvideo

STO2000 - Current Probes
STO2000 - FFT Function
STO2000 - Mobile Remote Control

Technical Data

Oscilloscope ModelSATO1004 Micsig Front
STO1004
TO1004-Micsig
TO2004
Micsig STO1102 Front
STO2302C
Operating SystemAndroidAndroidAndroid
Bandwidth100 MHz200 MHz300 MHz
Channels442
Memory Depth70 Mpts220 Mpts280 Mpts
Capture Rate130.000 wfm/s300.000 wfm/s130.000 wfm/s
Auflösung8 Bit8 Bit8 Bit
Display8 Inch TFT LCD10.1 Inch TFT LCD8 Inch TFT LCD
Sampling Rate1 GSa/s2 GSa/s2 GSa/s
Rotary EncoderX
Internal Memory32 GB32 GB8 GB
InterfacesWi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Out, GroundWi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Out, GroundUSB 2.0 Host & Device, Ethernet/LAN, Wifi
SafetyCAT I 300 Veff (1-MΩ-Eingang)CAT I 300 Veff (1-MΩ-Eingang)CAT I 300 Veff (1-MΩ-Eingang)
TriggermodesEdge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.
Bus-DecodingUART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)
Battery7500 mAh Lithium-Ion-Battery7500 mAh Lithium-Ion-Battery7500 mAh Lithium-Ion-Battery
