Description
The Siglent SDM3055 has a memory depth of 10k, a measurement speed up to 150 Sa/s and 1 GB Nand Flash. Siglent's SDM3055 can be used to make true RMS measurements of AC voltage and AC current. With its intuitive menu navigation and convenience features, it makes it easy for users to perform measurement tasks and achieve more accurate measurement results. The SDM3055's 4.3" 480*272 pixel display gives a good overview of all functions and offers a resolution of 5 1/2 digits (240,000 counts).
Features
- True 4½-digit (66,000 count) measurement resolution.
- Up to 150 rdgs/s measurement speed
- True RMS ac voltage and ac current measurement
- 1 GB NAND flash size, mass storage configuration files and data files
- Built-in cold junction compensation for thermocouple
- With simple, convenient and flexible PC software: EasyDDM
- Standard interface: USB device, USB host, LAN
- User-friendly design
- 4.3″ TFT-LCD, 480*272
- Supports dual display (Chinese and English menu)
- Built-in help system accessible on the front panel
- File management (support USB driver and local storage)
- USB and LAN remote interfaces support the common SCPI command set. Compatible with other popular DMMs on the market.
- Not compatible with SC1016 Scanner Card Option
Hardware details

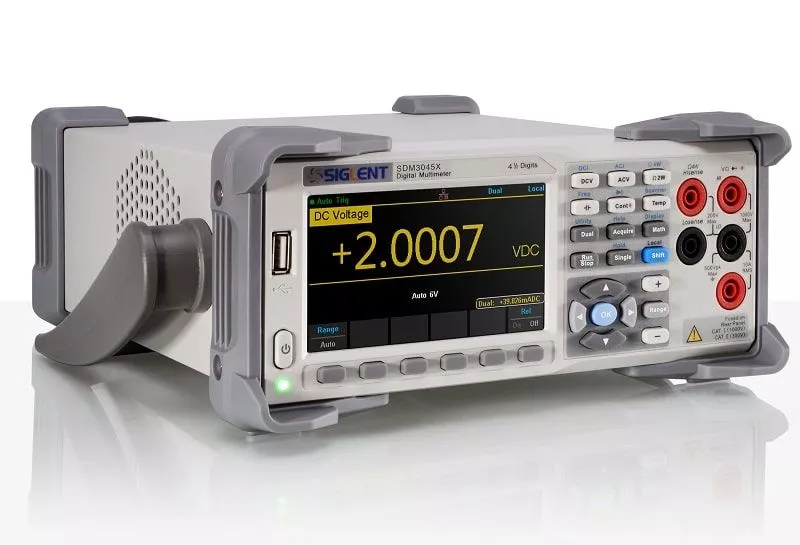

SDM3045X is a 4½-digit digital multimeter (count 66,000) with dual display and is particularly suitable for the requirements of high-precision, multifunctional and automatic measurements.
Product highlights
Thermocouple system
The SDM3045X has an internal cold junction compensation for measurements with thermocouples. Two different types of temperature sensors are supported: TC (Thermocouple) and RTD (Resistance Temperature Device).
Limitation tests
The limit test warns when a measured value exceeds previously defined MIN or MAX limits. The exceedances are counted and, if the sound is switched on, the instrument also emits an acoustic warning.
Large display
The extra large display with a diagonal of 10.9 cm (4.3") and a resolution of 480x272 pixels can easily display all important data such as measured value, statistical values and limit values.
Integrated online help
As is usual with many devices, these multimeters also have an online help function that provides useful information about the individual functions of the device.
Large internal memory
The multimeter supports four different display modes for the measured values: "Number" (numerical value), "Bar Meter" (bar display), "Trend Chart" and "Histogram". The volatile memory provides space for up to 1000 readings and the file manager provides access to the 1 GB non-volatile internal memory as well as the ability to create folders and save, copy, delete or rename files.
Technical Data
| Model comparison |  SDM3045X |  SDM3055 |  SDM3055-SC |  SDM3065X |  SDM3065X-SC |
|---|---|---|---|---|---|
| max. Resolution | 4½ Digits | 5½ Digits | 5½ Digits | 6½ Digits | 6½ Digits |
| max. display value | 60,000 | 240,000 | 240,000 | 2,200,000 | 2,200,000 |
| max. sampling rate | 150 Sa/s | 150 Sa/s | 150 Sa/s | max. 10000 Sa/s | max. 10000 Sa/s |
| memory depth | 10k historical record readings | 10k historical record readings | 10k historical record readings | 10k historical record readings | 10k historical record readings |
| Interfaces | USB Client, USB Host, LAN | USB Client, USB Host, LAN, GPIB(optional) | USB Client, USB Host, LAN, GPIB(optional) | USB Client, USB Host, LAN, GPIB(optional) | USB Client, USB Host, LAN, GPIB(optional) |
| DC voltage measurement range | 200mV-1000V | 200mV-1000V | 200mV-1000V | 200mV-1000V | 200mV-1000V |
| AC voltage measurement range | 200mV-750V | 200mV-750V | 200mV-750V | 200mV-750V | 200mV-750V |
| DC current measurement range | 200µA-10A | 200µA-10A | 200µA-10A | 200µA-10A | 200µA-10A |
| Scanner Card | No | No | Yes | No | Yes |
