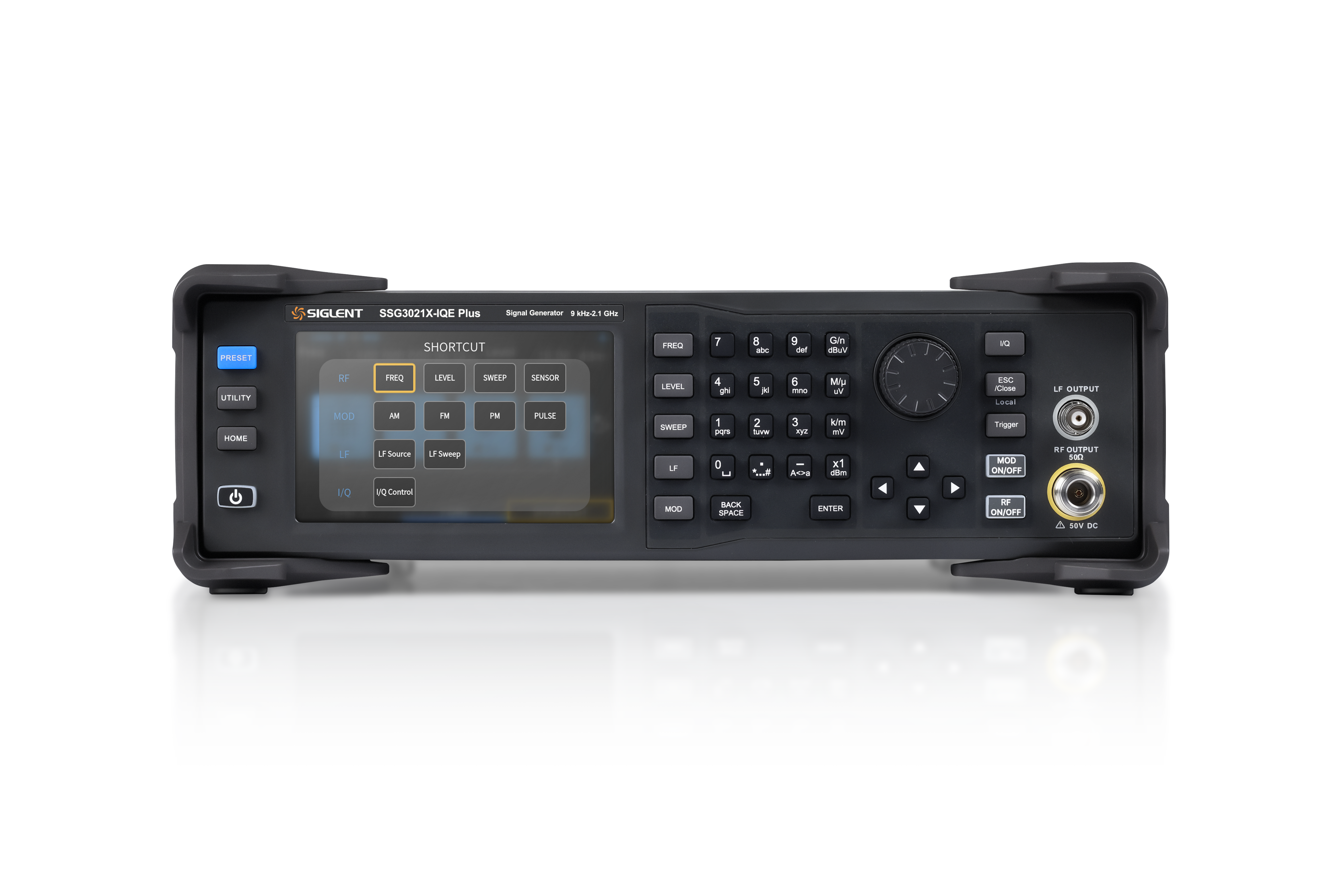

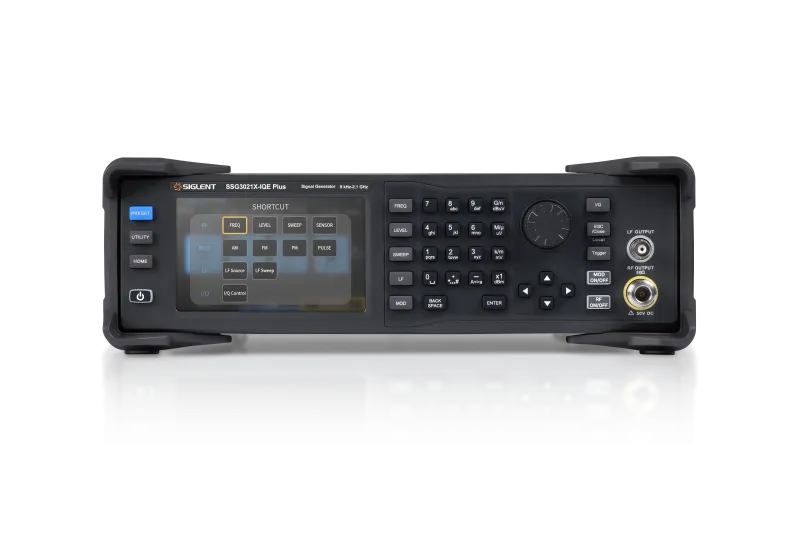

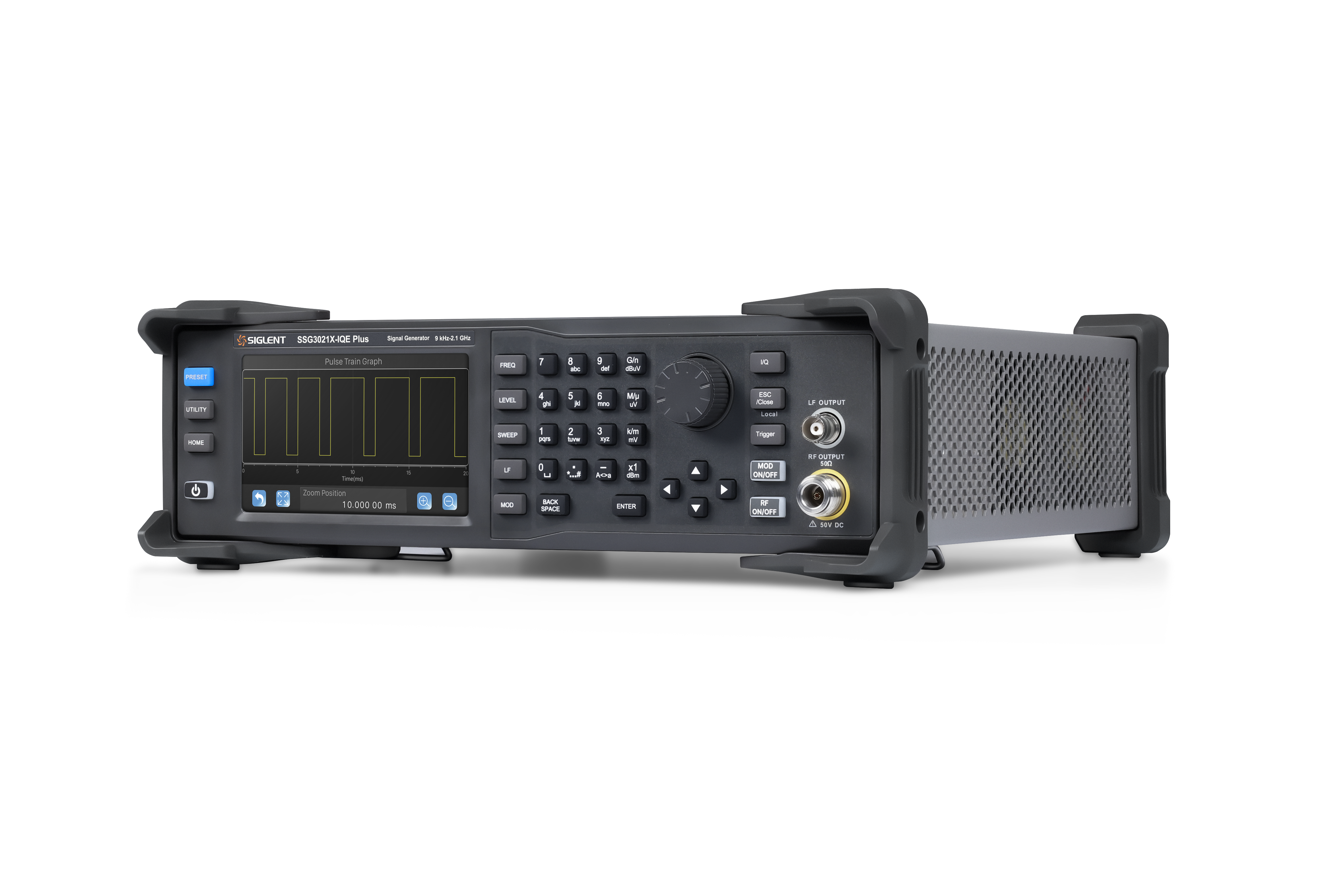

SSG3021X-IQE Plus is a 2.1 GHz RF signal generator with external IQ modulation for vector and multi-tone signal generation, ideal for R&D, production, service and education.
Volume discounts on request!
€4,299.00 Net
€5,115.81 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 to 3 days
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3 Years Warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Special Upgrade Offer
Purchase a new SSG3021X-IQEPlus Spectrum Analyzer and an SRF5030T Near-Field Probe Kit to receive FREE EMI and AMK option activation licenses!
Offer Valid: 1 October – 31 December
Product configuration
Customize your product!
Click on a category below to view available options.
Description
The SSG3021X-IQE Plus is a professional RF signal generator covering 9 kHz to 2.1 GHz in CW mode and 10 MHz to 2.1 GHz in IQ mode. Designed for R&D, production, service, and education, it combines optimized phase-noise, wideband-noise, and pulse performance with precise output control, analog and pulse modulation, and external I/Q modulation for generating vector signals and multi-tone signals.
Features
- 9 kHz–2.1 GHz CW frequency range and 10 MHz–2.1 GHz IQ frequency range
- 0.01 Hz frequency resolution for precise frequency setting
- −110 dBm to +20 dBm level setting range, depending on frequency
- ≤0.7 dB level accuracy (typ.) and 0.01 dB level resolution
- Low phase noise: −117 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
- External IQ modulation with I/Q baseband inputs for vector and multi-tone signal generation
- Supports external baseband bandwidth of I or Q <100 MHz (typ.) and RF (I+Q) <200 MHz (typ.)
- AM/FM/PM and pulse modulation with internal and external modulation sources
- Optional high-stability OCXO and pulse train generator
- Built-in power meter control for power calibration and cable-loss compensation
- USB, LAN, and optional GPIB interfaces for integration into automated test systems
- 5-inch, 800 × 480 touchscreen with dedicated IQ, modulation, and sweep controls
.png)
Product highlights

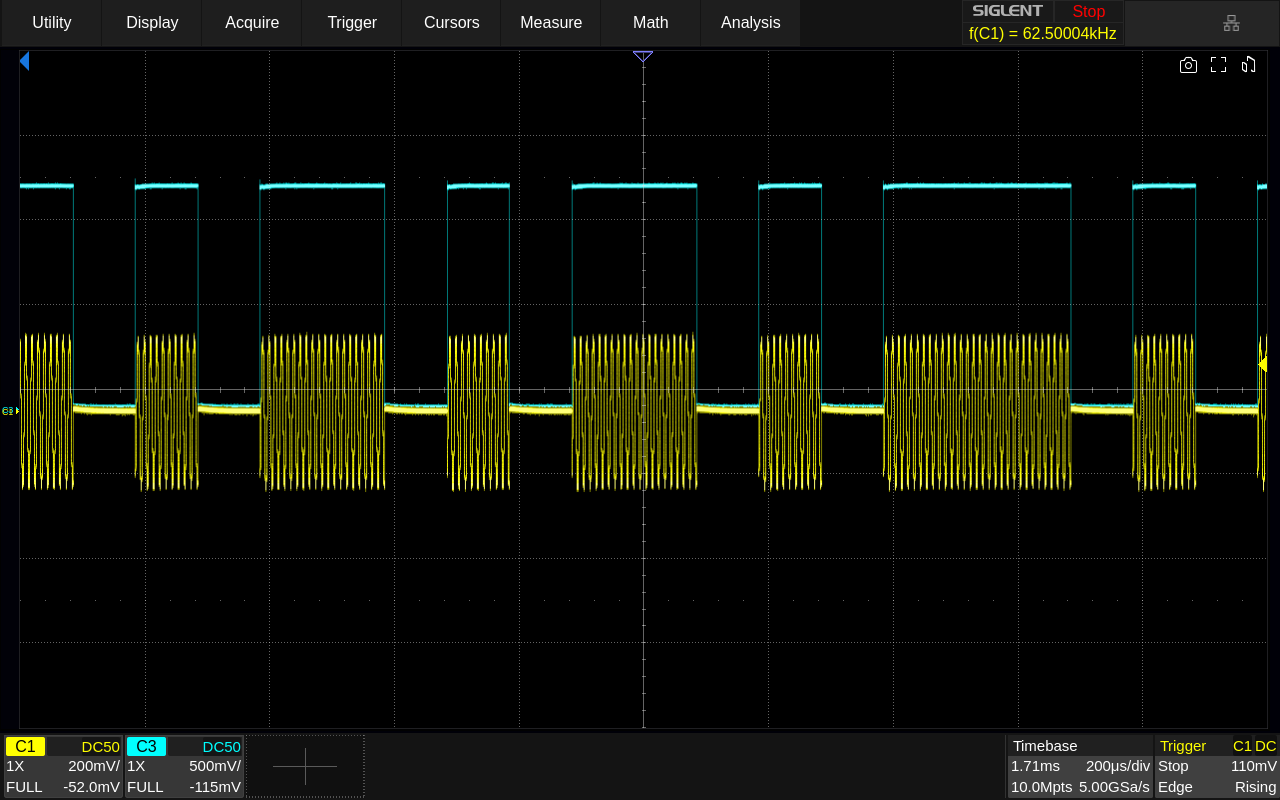

.png "pulse train generator")
Pulse modulation

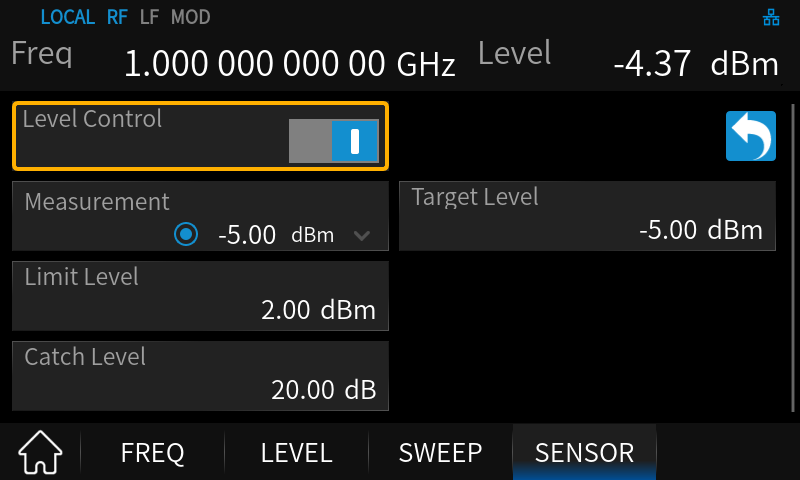

.png "power display")
Power display with USB power supply

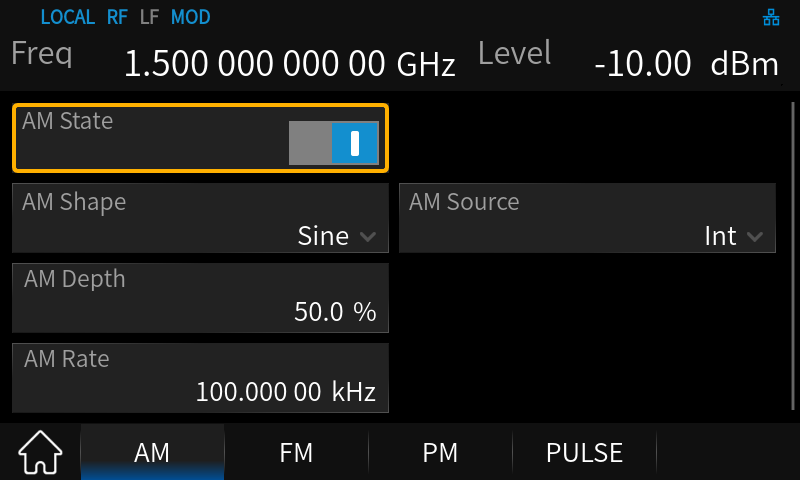

%20(1).png "power control")
Power display with USB power supply
%20(1).png "power display")
Power display with USB power supply
%20(1).png "power display")
Power display with USB power supply

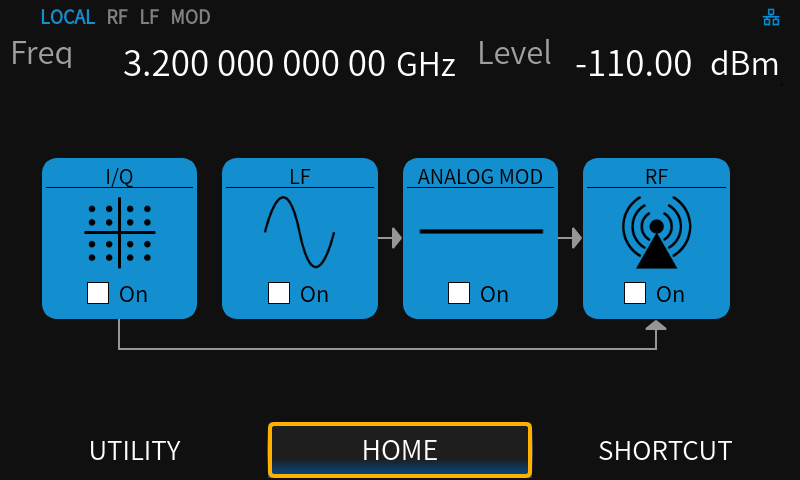

%20(1).png "touchscreen")

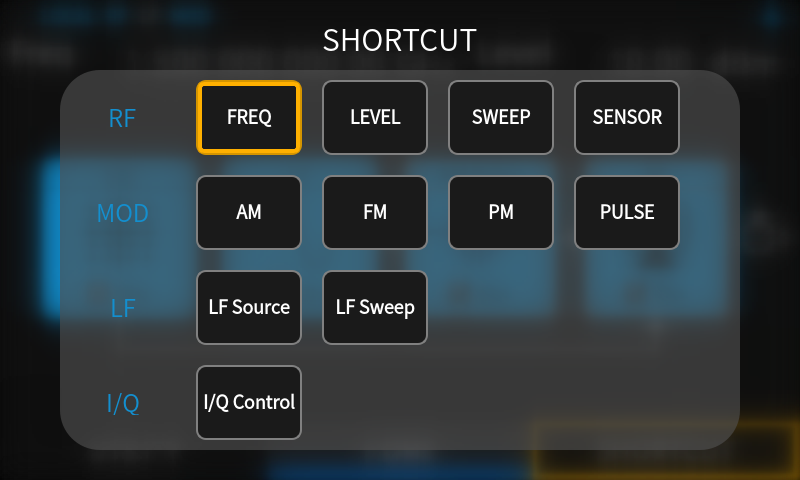

5-inch touchscreen, keyboard and mouse support
.png "double pulse modulation")

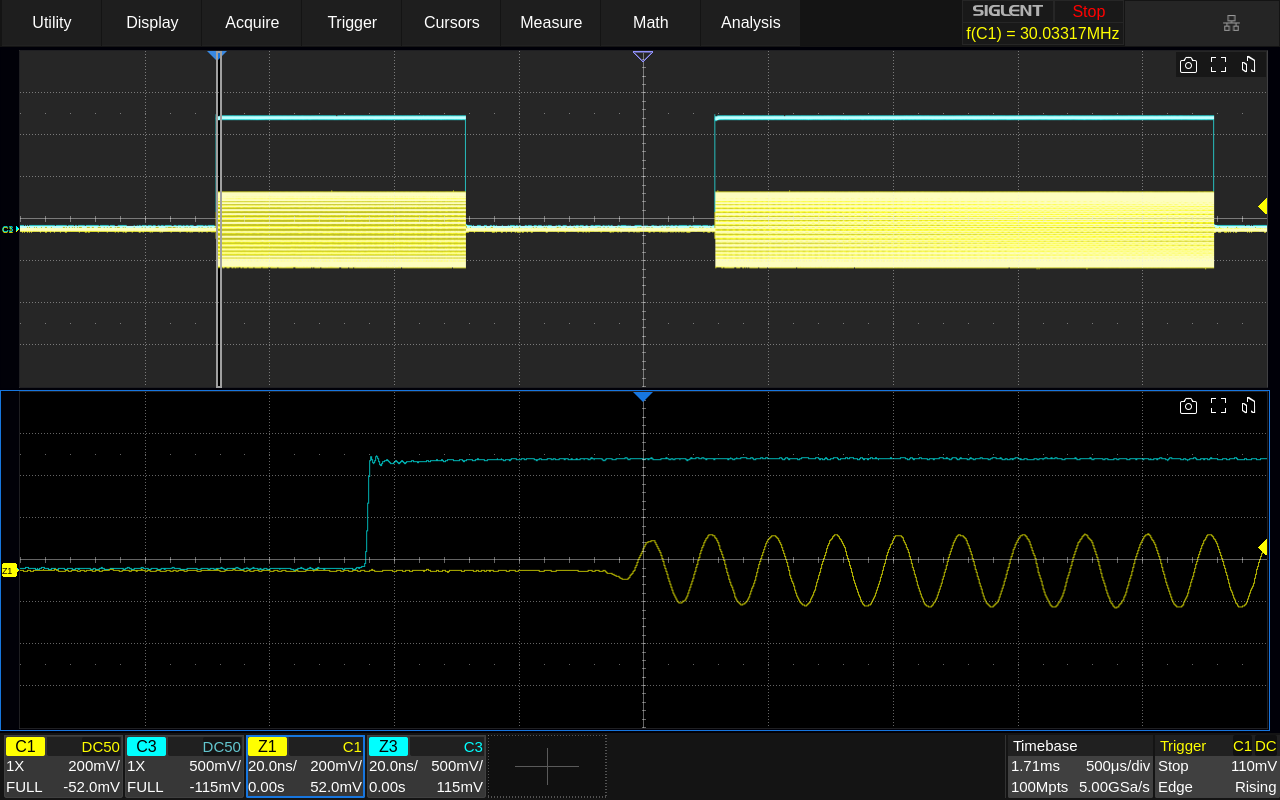

Double pulse OSC
.jpg "IQ modulation")

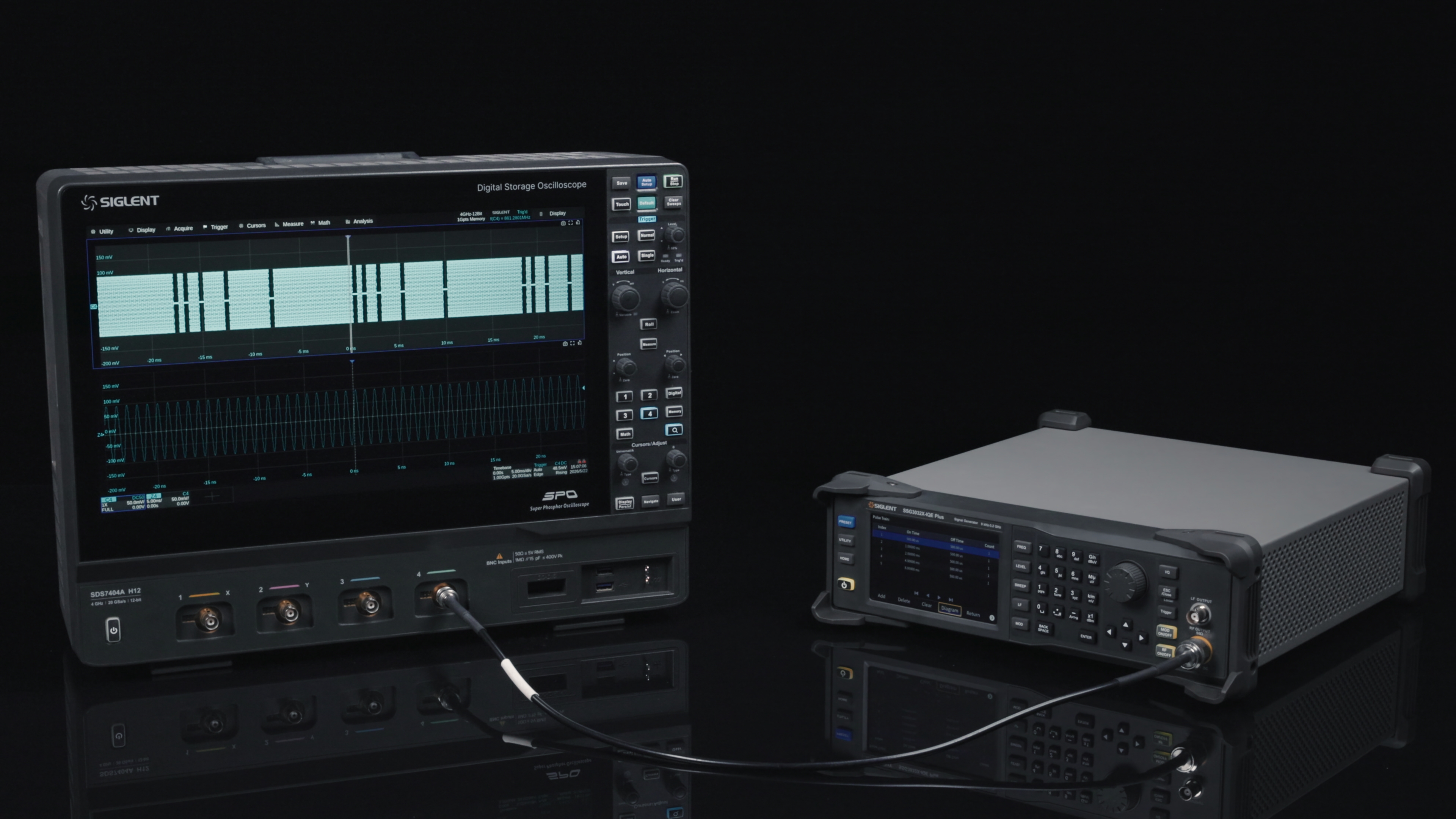

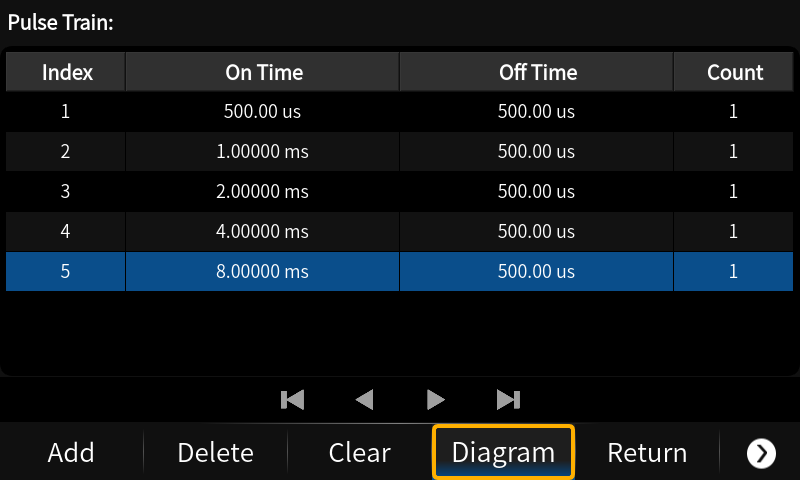

Pulse Train Generator
Technical Data
| Model comparison |  SSG3021X Plus |  SSG3032X Plus |  SSG3021X-IQE Plus |  SSG3032X-IQE Plus |
|---|---|---|---|---|
| Frequency Range – CW Mode | 9kHz~2.1GHz | 9kHz~3.2GHz | 9kHz~2.1GHz | 9kHz~3.2GHz |
| Frequency Range – IQ Mode | — | — | 10 MHz–2.1 GHz | 10 MHz–2.1 GHz |
| Frequency Resolution | 0.01 Hz | 0.01 Hz | 0.01 Hz | 0.01 Hz |
| Level Accuracy | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) |
| Phase Noise | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) |
| Output Level | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* |
| Analog Modulation | AM / FM / PM | AM / FM / PM | AM / FM / PM | AM / FM / PM |
| Pulse Modulation | Standard | Standard | Standard | Standard |
| Pulse Generator | Standard | Standard | Standard | Standard |
| Pulse Train Generator | Optional | Optional | Optional | Optional |
| External IQ Modulation | — | — | Supported | Supported |
| High-Stability OCXO | Optional | Optional | Optional | Optional |
| Built-in Power Meter Control | ✓ | ✓ | ✓ | ✓ |
| Display | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 |
| Internal Storage | 256 MB | 256 MB | 256 MB | 256 MB |
| Interfaces | USB, LAN and optional GPIB | USB, LAN and optional GPIB | USB, LAN and optional GPIB | USB, LAN and optional GPIB |
| Dimensions (W × H × D) | 338 × 113 × 369 mm | 338 × 113 × 369 mm | 338 × 113 × 369 mm | 338 × 113 × 369 mm |
| Weight | 4.84 kg | 4.84 kg | 4.84 kg | 4.84 kg |
