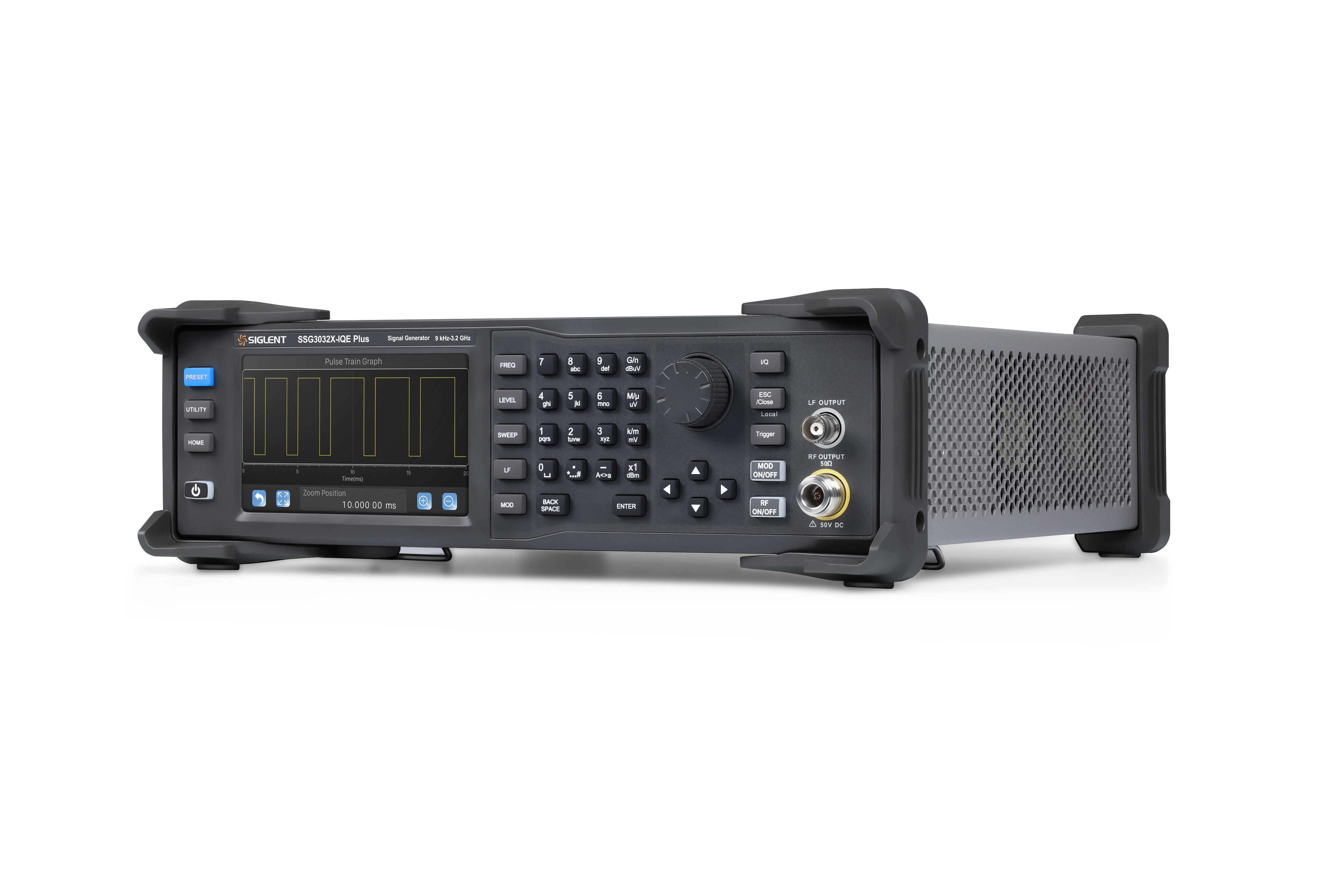

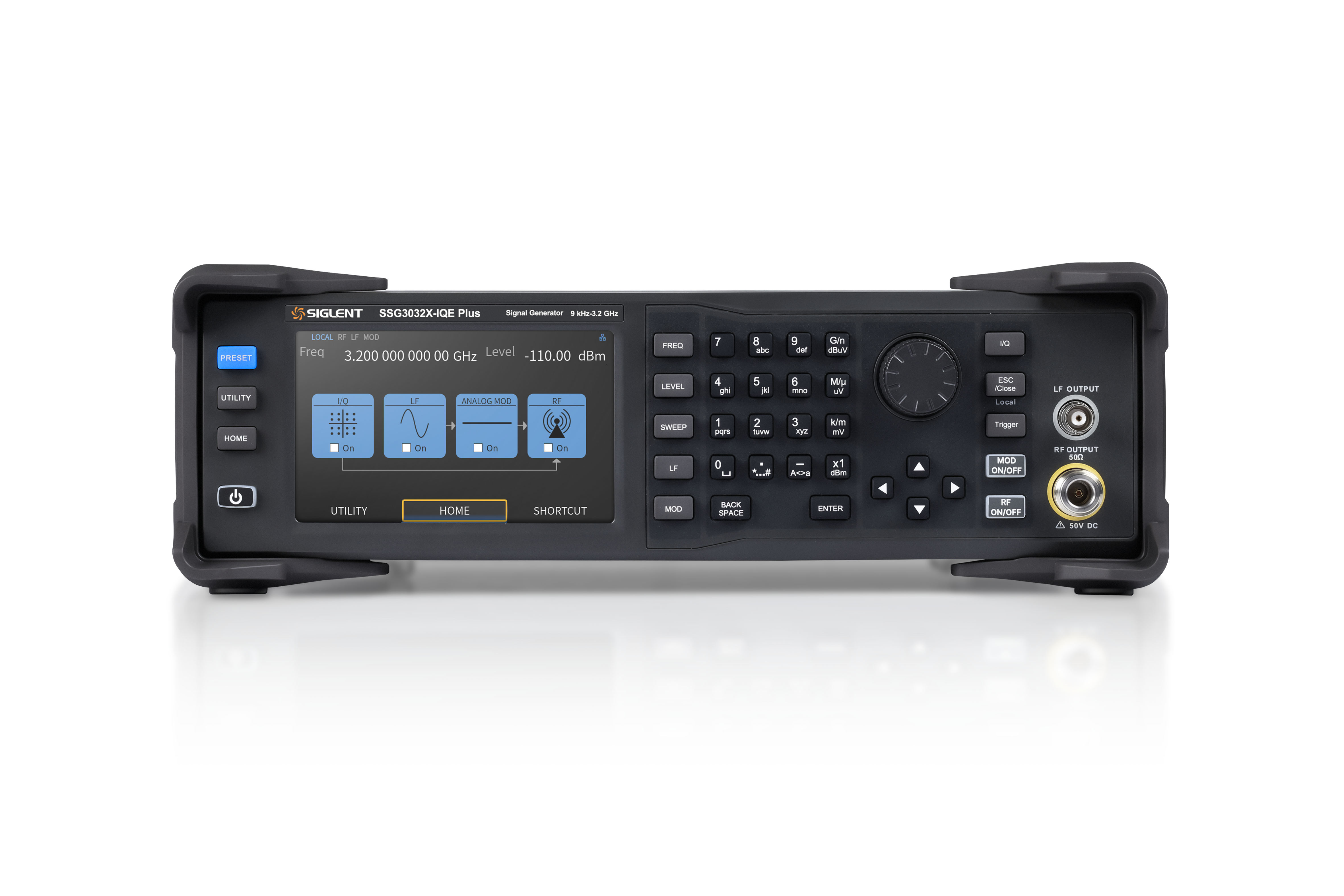

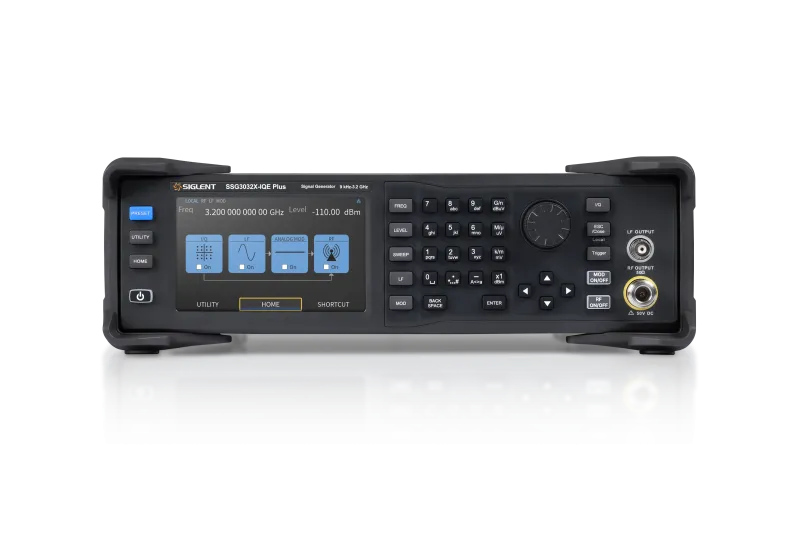

SSG3032X-IQE Plus is a 3.2 GHz RF signal generator with external IQ modulation for vector and multi-tone signal generation, ideal for advanced RF testing.
Volume discounts on request!
€5,699.00 Net
€6,781.81 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 to 3 days
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3 Years Warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Special Upgrade Offer
Purchase a new SSG3032X-IQE Plus Spectrum Analyzer and an SRF5030T Near-Field Probe Kit to receive FREE EMI and AMK option activation licenses!
Offer Valid: 1 October – 31 December
Product configuration
Customize your product!
Click on a category below to view available options.
Description
The SSG3032X-IQE Plus is a professional RF signal generator offering a 9 kHz to 3.2 GHz frequency range in CW mode and 10 MHz to 3.2 GHz in IQ mode. Designed for R&D, production, service, and education, it combines low phase noise, optimized wideband noise and pulse performance, precise output control, and flexible analog and pulse modulation. With external I/Q modulation, it can work with external baseband sources to generate vector signals and multi-tone signals for advanced RF testing and active-device evaluation.
Features
- 9 kHz–3.2 GHz CW frequency range and 10 MHz–3.2 GHz IQ frequency range
- 0.01 Hz frequency resolution for precise frequency setting
- Wide output level setting range: −110 dBm to +20 dBm, depending on frequency
- ≤0.7 dB level accuracy (typ.) and 0.01 dB level resolution
- Low phase noise: −117 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
- External I/Q modulation with dedicated I INPUT and Q INPUT
- Supports external baseband bandwidth of I or Q <100 MHz (typ.) and RF (I+Q) <200 MHz (typ.)
- Works with external IQ baseband sources, such as the SDG6000X, for vector and multi-tone signal generation
- Supports AM/FM/PM and pulse modulation
- Optional high-stability OCXO and pulse train generator
- Built-in power meter control for power calibration and cable-loss compensation
- USB, LAN, and optional GPIB interfaces for automated test-system integration
- 5-inch, 800 × 480 touchscreen with intuitive access to IQ, modulation, sweep, and trigger functions.
.png)
Product highlights
.png "pulse train generator")
Pulse modulation
.png "power display")
Power display with USB power supply
%20(1).png "power control")
Power display with USB power supply
%20(1).png "power display")
Power display with USB power supply
%20(1).png "power display")
Power display with USB power supply
%20(1).png "touchscreen")
5-inch touchscreen, keyboard and mouse support
.png "double pulse modulation")
Double pulse OSC
.jpg "IQ modulation")
Pulse Train Generator
Technical Data
| Model comparison |  SSG3021X Plus |  SSG3032X Plus |  SSG3021X-IQE Plus |  SSG3032X-IQE Plus |
|---|---|---|---|---|
| Frequency Range – CW Mode | 9kHz~2.1GHz | 9kHz~3.2GHz | 9kHz~2.1GHz | 9kHz~3.2GHz |
| Frequency Range – IQ Mode | — | — | 10 MHz–2.1 GHz | 10 MHz–2.1 GHz |
| Frequency Resolution | 0.01 Hz | 0.01 Hz | 0.01 Hz | 0.01 Hz |
| Level Accuracy | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) | ≤0.7 dB (typ.) |
| Phase Noise | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) | −117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) |
| Output Level | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* | −110 dBm to +13 dBm* |
| Analog Modulation | AM / FM / PM | AM / FM / PM | AM / FM / PM | AM / FM / PM |
| Pulse Modulation | Standard | Standard | Standard | Standard |
| Pulse Generator | Standard | Standard | Standard | Standard |
| Pulse Train Generator | Optional | Optional | Optional | Optional |
| External IQ Modulation | — | — | Supported | Supported |
| High-Stability OCXO | Optional | Optional | Optional | Optional |
| Built-in Power Meter Control | ✓ | ✓ | ✓ | ✓ |
| Display | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 | 5-inch touchscreen, 800 × 480 |
| Internal Storage | 256 MB | 256 MB | 256 MB | 256 MB |
| Interfaces | USB, LAN and optional GPIB | USB, LAN and optional GPIB | USB, LAN and optional GPIB | USB, LAN and optional GPIB |
| Dimensions (W × H × D) | 338 × 113 × 369 mm | 338 × 113 × 369 mm | 338 × 113 × 369 mm | 338 × 113 × 369 mm |
| Weight | 4.84 kg | 4.84 kg | 4.84 kg | 4.84 kg |
