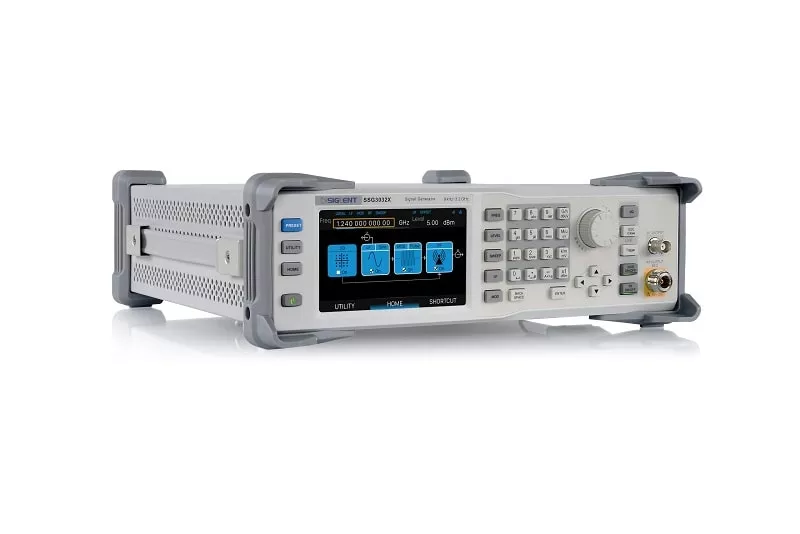

The SSG3032X-IQE signal generator from Siglent offers a frequency range of 9 kHz to 3.2 GHz, as well as a level output of -110 dBm to +13 dBm. This model has a 5-inch TFT touch screen.

Features

Frequency up to 2.1 GHz/3.2 GHz
0.01 Hz resolution of frequency setting
Level output from -110 dBm to +13 dBm
Maximum level up to +20 dBm (typ.)
Phase noise: -110 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
Level accuracy ≤0.7 dB (typ.)
Provides analog AM, FM, and PM modulation with internal, external, or Int+Ext source.
Pulse modulation, on/off ratio ≥70 dBc
Pulse train generator (option)
External IQ modulation with SDG6000X as baseband IQ signal
USB power meter measurement kit
Capacitive 5-inch TFT touch screen, mouse and keyboard supported
Web browser remote control on PC and mobile devices
Standard interfaces include USB host, USB device (USB TMC), LAN (VXI-11, Socket, Telnet).
Optional interface: GPIB

Hardware details

The SSG3000X series signal generators from SIGLENT have a frequency range from 9 kHz to 2.1 GHz/3.2 GHz. They offer normal analog modulation such as AM, FM and PM. They also offer pulse modulation and pulse train generator. In addition, they can generate IQ modulated signals when used with a baseband generator such as the SDG6000X. With their high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education and manufacturing.

Product highlights

Pulse train generator

Power display with USB power supply

Power control via USB power sensor

5-inch touchscreen, keyboard and mouse support

Maximum output level up to +20 dBm

Double pulse modulation

External IQ modulation with the SDG6000X as baseband source

Dual tone signal with IQ modulation to perform TOI tests easily

Productvideo

SSG3000X - Introduction

Technical Data

Model comparison	SSG3021X	SSG3032X	SSG3021X-IQE	SSG3032X-IQE
Frequency range	9kHz~2.1GHz	9kHz~3.2GHz	9kHz~2.1GHz	9kHz~3.2GHz
Amplitude Resolution	0.01dB	0.01dB	0.01dB	0.01dB
phase noise	-110 dBc/Hz @1 GHz, offset 20 kHz (typ.)	-110 dBc/Hz @1 GHz, offset 20 kHz (typ.)	-110 dBc/Hz @1 GHz, offset 20 kHz (typ.)	-110 dBc/Hz @1 GHz, offset 20 kHz (typ.)
External I/Q modulation	No	No	Yes	Yes
