Product configuration
Description

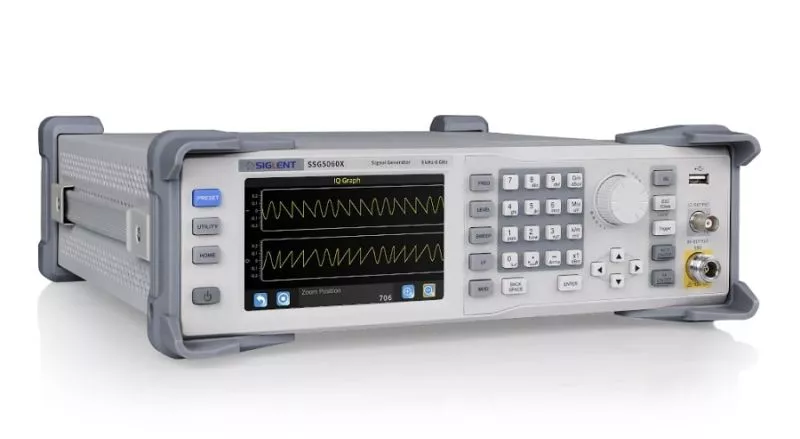

The SSG5060X-V signal generator can generate analog and vector signals with a frequency range from 9 kHz to 6 GHz.
Features
- Frequency up to 4 GHz/6 GHz
- 001 Hz Resolution of the frequency setting
- Maximum output power up to +26 dBm (typ.)
- Phase noise: -120 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
- User-programmable flatness correction
- Offers analog AM, FM and PM modulation with internal, external or Int+Ext source
- Single pulse, double pulse and pulse train generator (option)
- Internal IQ modulation with 150 MHz modulation bandwidth and perfect factory calibration.
- Built-in sample files for digital communication standard waveforms such as 5G-NR, LTE, WCDMA, WLAN, Bluetooth, CDMA
- Internal user-defined mode for generating common IQ signals such as QAM, FSK, ASK, MSK
- Analog differential I/Q outputs
- External analog I/Q input
- USB power meter measurement
- 5-inch capacitive TFT touchscreen, mouse and keyboard support
- Web browser remote control on PCs and mobile devices
- The standard interface includes a USB host, a USB device (USB TMC), and a LAN (VXI-11, socket, Telnet). Optional interface: GPIB.
Hardware details
SIGLENT's SSG5000X series signal generators can produce analog and vector signals and have a frequency range of 9 kHz to 4 GHz/6 GHz. They offer industry-leading performance in terms of phase noise, spectral purity, bandwidth, EVM, and output power. The internal IQ modulation generator and waveform playback function make it easy to generate even the most complex signal types. They also cover the most important RF band for digital wireless communication and include standard waveform files. The SIGLENT SSG5000X are powerful and cost-effective sources, ideal for research and development, education, and manufacturing.
Product Highlights
Multi-carrier signals
The ARB mode is used to generate multi-carrier signals.
USB power sensor
Use an external USB power sensor to compensate for cable losses.
Multitone mode
Multi-tone mode for outputting multi-tone signal waveform sequences
Waveform files
ARB mode for playing back waveform files according to digital communication standards
ARB mode
The ARB mode can be used to mark label symbols on waveform files and simultaneously output a pulse from the IQ_Event interface. Perfect for synchronizing another device.
Custom Mode
The user-defined mode can generate IQ-modulated signals such as QAM, PSK, ASK, FSK with a sampling rate of up to 120 Msps.
CCDF displays
ARB mode for clipping the peak power signal and displaying the CCDF (cytotoxic cell differentiation factor)
Real-time AWGN
ARB mode for adding real-time AWGN to digital IQ signals for receiver performance testing
Technical Data
| Model comparison |  SSG5040X |  SSG5060X |  SSG5040X-V |  SSG5060X-V |
|---|---|---|---|---|
| bandwidth | CW MODE 9 kHz-4 GHz | CW MODE 9 kHz-6 GHz | CW MODE 9kHz-4GHz IQ MODE10MHz-4GHz | CW MODE 9kHz-4GHz IQ MODE10MHz-4GHz |
| Frequency Resolution | 0.001Hz | 0.001Hz | 0.001Hz | 0.001Hz |
| Amplitude Resolution | 0.01dB | 0.01dB | 0.01dB | 0.01dB |
| Phase noise | -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) | -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) | -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) | -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) |
| Display | 5-inch capacitive touchscreen, RGB (800*480) | 5-inch capacitive touchscreen, RGB (800*480) | 5-inch capacitive touchscreen, RGB (800*480) | 5-inch capacitive touchscreen, RGB (800*480) |
