€339.00*
- 3 Years Warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Delivery time 1 to 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

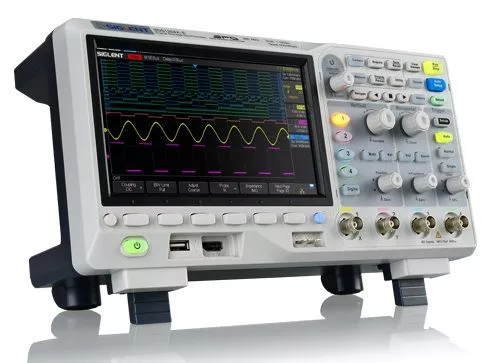

The SDS1202X-E is Siglent's most popular oscilloscope. With a bandwidth of 200 MHz, 2 channels and countless software functions, it is suitable for a wide range of applications. In the field of entry-level oscilloscopes, there is currently no better alternative to the SDS1202X-E oscilloscope, as it offers the best overall package on the market in terms of features and price. This is underlined once again by the numerous excellent reviews from various electronics engineers, engineers and product testers.
Features
- Intelligent triggers: edge, slope, pulse width, window, run, interval, timeout (dropout) and pattern
- Free serial bus triggering and decoding for I2C, SPI, UART, RS232, CAN and LIN
- Video trigger and HDTV support
- Low background noise and voltage scales from 500 μV / div to 10 V / div
- Confugable DeepL access function, supports auto setup, default, cursors, measure, roll, history, display/persist, clear sweep, zoom and print
- Segmented acquisition mode (Sequence), which divides the maximum recording length into multiple segments (up to 80,000), according to the trigger conditions set by the user, with a very small dead time segment to capture the qualifying event.
- Waveform recording (history), the maximum length of the recorded waveform is 80,000 frames.
- Automatic measurement function for 38 parameters, supports statistics, gating measurement, mathematical measurement, history measurement and ref measurement
- Large 1 Mpts FFT function for a high number of interpolation points
- Real measurements and mathematical calculations can use the whole 14 Mpts of memory
- High speed hardware based pass/fail function
- Large 7-inch TFT LCD display with 800 * 480 resolution
- Multiple interface types: USB host, USB device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out
- Supports SCPI remote control commands
- Intuitive menu navigation and embedded help
- Browser control/onboard web page for software-free monitoring (4-channel models only)
- Bode plot function controls external generator (SIGLENT SDG or SAG generators, 4-channel models only)
Hardware details
The Siglent two channel oscilloscope SDS1202X-E- features 200 MHz bandwidth, 1GSA/s sampling rate, a minimum vertical input range of 500 uV / Div, an innovative digital trigger system with high sensitivity and low jitter, and a signal acquisition rate of 400,000 wfm/s. (Sequence Mode). The SDS1202X-E also features a color temperature display mode and supports several powerful trigger modes, including serial bus triggering and decoding. Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN, while waveform history recording and sequential triggering enable extensive logging and analysis. Another powerful addition is the new 1 Mpt mathematical FFT function, which gives the SDS1202X-E oscilloscope very high frequency resolution when viewing signal spectra. The new design also includes a hardware coprocessor that delivers measurements quickly and accurately. The menu navigation (English) is intuitive and the high-contrast TFT screen means that all values are always easy to read.Product highlights
USB WIFI Adapter
(Optional for 4 channel models)
WiFi control can provide a convenient and secure method for configuring and collecting data. This new feature works with a Siglent approved WiFi adapter.
USB 25 MHz AWG Module
(Optional for 4 channel models)
The four channel models supports a 25 MHz function or arbitrary signal generator connected via USB. Functions include sine, square, ramp, pulse, noise, DC as well as 45 built-in waveforms, waveforms are available in Easywave. A Bode Plot function is available on all 4 channel models.
Mixed signal option
(Optional for 4 channel models)
All four channel models of the SDS1000X-E series support the optional SLA1016 logic analyzer. Please note that in addition to the hardware, the activation license for the 16 digital channels is required.
Comprehensive connectivity options
The SDS1000X-E offers extensive connectivity options and supports USB host, USB device (USB-TMC), LAN (VXI-11), Pass/Fail and Trigger Out. All four-channel models also have the option of browser-based control via a web server.
Recording length of 14 Mpts
With hardware-based zoom technologies and a recording length of up to 14 Mpts, users can use a higher sampling rate to capture more signal and then quickly zoom in to focus on the area of interest.
Signal acquisition rate up to 400,000 wfm/s
With a signal acquisition rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture low probability events.
256-level intensity rating
More frequently occurring events are brighter (intensity gradation) than less frequently occurring events. This allows you to quickly identify interfering signals.
Color temperature grading
The event frequency is represented by different colors (temperature gradation). Frequent events have a warmer color. This helps to easily identify rare events.
Decoding function for serial bus
A serial bus decoding function is included as standard. The SDS1000X-E displays the decoding via the event list. Bus protocol information can be quickly and intuitively displayed in tabular form.
Progress waveforms & segmented acquisition
Play back the most recently triggered events using the history function. Segmented memory capture stores the waveform in multiple (up to 80,000) memory segments, each segment stores triggered waveforms and time stamps each frame.
Gate and zoom measurement
Gate and zoom measurement allows the user to specify any interval for waveform data analysis and statistics. This helps to avoid measurement errors that can be caused by invalid or irrelevant data and greatly improves the validity and flexibility of the measurements.
1 Mtps FFT function
The new mathematical coprocessor enables FFT analysis of incoming signals with up to 1 million samples per waveform. This provides high frequency resolution with a fast frame rate. The FFT function also supports a variety of windowing functions, allowing it to be adapted to different spectral measurement requirements.
Pass/Fail function on hardware basis
The pass/fail function performs up to 40,000 pass/fail decisions per second. Easy generation of user-defined test templates provides trace-mask comparison, making it suitable for long-term signal monitoring or automated production line testing.
Customizable default key
The current parameters of the oscilloscope can be preset to Default Key via the Save menu.
Measurements of up to 14 million sampling points
At any time base, the SDS1000X-E can measure with all 14 million sampling points. This ensures measurement accuracy, while the mathematical coprocessor reduces measurement time and increases ease of use.
Search and Navigate
(4 channel models only)
The SDS1000X-E can search for events specified by the user in a frame, and can also navigate by time (delay position) and recorded frames.
Technical Data
| Device specification |  SDS1202X-E Oscilloscope |
|---|---|
| Display screen | 17.78 cm (7")WVGA color LCD |
| Resolution | 800 × 480 Pixel |
| Ports | USB host for connecting e.g. USB sticks for storing waveforms USB device for connection to a PC LAN for network use (LXI) GPIB (IEE-488, General Purpose Interface Bus) via USB-GPIB module (optionally available) Pass/Fail signal output |
| Dimensions | 312 mm × 150 mm × 134 mm |
| Weight | 2.8 kg |
| Channels | 2 |
| Sampling rate | 1 GSa/s real time (1 channel) |
| Band width | 200 MHz |
| Sampling mode | Normal sampling, peak detection (Peak Detection) and averaging (Average) |
| Mathematical functions | + , - , * , / , FFT (1 Mpoint) , d/dt , ∫dt , √ |
| Supported FFT windows | Rectangle, Hanning, Hamming, Blackman |
| Signal decoding | RS232/UART, I²C, SPI, CAN, LIN (standard-option) |
| Input (signal) | DC/AC Kopplung, CAT II 300 Vrms |
| Sampling rate (signal) | up to 1 GSa/s real time |
| Time base (signal) | 1 ns/div bis 100 s/div |
| Memory (signal) | 14M Measuring points (total) |
| A/D converter resolution | 8 Bit |
| Vertical base | 500 µV/div to 10 V/div |
| Trigger sources | Channel triggering, EXT |
Signal system and line/field frequencies (Video Trigger Mode) | PAL, NTSC 720p/50, 20p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, Custom |
| Trigger functions | Edge, Edge Rise, Pulse, Video, Window, Pattern, Interval, Failure, Runt, Pattern, Serial (I²C, SPI, RS232/UART, CAN, LIN) |
| Cursor measurement | Manual mode, track mode, auto mode, voltage difference (∆V) and Time difference (∆T) between two cursors |
| Automatic measurement | Max, Min, Pk-Pk, Ampl, Top, Base, Mean, Cmean, StDev, Cstd, VRMS, Crms, FOV, FPRE, ROV, RPRE, Level@X, Period, Freq, +Wid, -Wid, Rise Time, Fall Time, Bwid, +Dut, -Dut, Delay, Time@Level, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFF, Skew |
| Model overview | SDS1202X-E |  SDS1104X-E |  SDS1204X-E |
|---|---|---|---|
| Band width | 200 MHz | 100 MHz | 200 MHz |
| Sampling rate (max.) | 1 GSa | 1 GSa | 1 GSa |
| Signal capture rate | 100000 wfms/s | 100000 wfms/s | 100000 wfms/s |
| Memory depth | 14 MPts | 14 MPts | 14 MPts |
| Display screen | 17.78 cm / 7 inch (800x480) | 17.78 cm / 7 inch (800x480) | 17.78 cm / 7 inch (800x480) |
| Channels | 2 | 4 | 4 |
| FFT grid points | 1 MPts | 1 MPts | 1 MPts |
| Function generator |
|
|
|
| Logic analyzer |
|
|
|
| Serial decoder |
|
|
|
