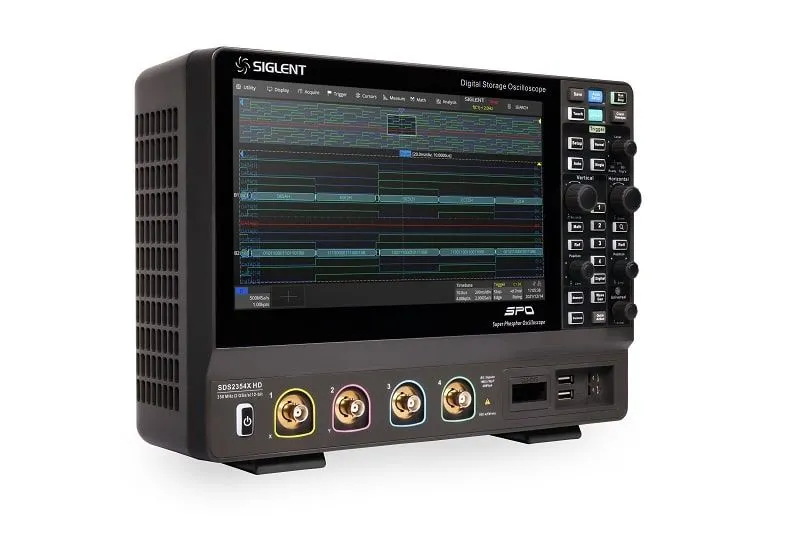

The SDS2204X HD is the 200 MHz model of the SDS2000X HD series, whose biggest difference between the SDS2000X Plus series is the 12-bit analog-to-digital converter.The 12-bit analog-to-digital converter allows high-frequency oscillation and noise to be contained and mitigated more quickly and easily. It also enables faster and more accurate tuning of attenuation circuits and more accurate transient response testing.

The wider dynamic range, lower noise, and greater offset adjustability make it an ideal instrument for your own lab equipment.The SHS2000X HD Series digital storage oscilloscopes are high-resolution and offer a sampling rate of 2 GSa/s and excellent noise rejection. The series offers 3 models at 350 MHz, 200 MHz, and 100 MHz, providing a recording length of 200 Mpts per channel, 4 analog channels, and 16 digital channels.

Furthermore, the SDS2000X HD series offers up to 100,000 wfm/s (normal mode, up to 500,000 wfm/s in sequence mode), a 256-level intensity gradation display function, and a color temperature display mode. The digital trigger system is highly sensitive and offers low jitter.The trigger system supports several powerful trigger modes, including serial bus triggering. Tools such as history waveform recording, search and navigation functions, mask test, bode plot, power analysis, and histogram enable the acquisition, storage, and analysis of extensive waveform records. An impressive array of measurement and math functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are additional features of the SDS2000X HD.

The large 10.1-inch capacitive touchscreen display supports multi-touch gestures and can greatly improve operating efficiency with its user-friendly UI design. It also supports mouse control and remote web control via LAN.

Features

12-bit analog-to-digital converter with a sampling rate of up to 2 GSa/s
Front-end with 70 μVrms noise floor at 500 MHz bandwidth and 0.5% DC gain accuracy
4 analog channels, up to 350 MHz bandwidth (upgradeable up to 500 MHz)
SPO technology
Waveform acquisition rate up to 100,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
Supports 256-level intensity gradation and color temperature display modes
Recording length of up to 200 Mpts/channel
16 digital channels (optional)
Built-in 25 MHz waveform generator
Large 10.1" TFT LCD display with 1024 * 600 resolution; capacitive touch screen supports multi-touch gestures
Interfaces include: USB hosts, USB device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out.
Built-in web server supports remote control via LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard

Powerful software

Digital trigger system Edge, Slope, Pulse, Window, Run, Interval, Dropout, Pattern, Qualified, Nth Edge, Setup/Hold, Delay and Video (HDTV supported). Zone Trigger simplifies complex triggering
Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN protocols (CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester | Optional)
Segmented acquisition mode (Sequence) that divides the maximum recording length into multiple segments (up to 80,000), according to the trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
Historical waveform recording function (History), the maximum length of recorded waveforms is 80,000 frames
Automatic measurements of more than 50 parameters, supports statistics with histogram, track, trend, gating measurement and measurements of Math, History and Ref
2 math tracks (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
Extensive data analysis functions such as search, navigation, digital voltmeter, counter, waveform histogram, Bode plot and power analysis
High-speed hardware-based averaging, ERES; high-speed hardware-based mask testing function, with mask editor to create custom masks

Product highlights

Full connectivity

USB host 2.0 x3, USB device 2.0 (USBTMC), LAN (VXI-11/Telnet/Socket), auxiliary output (Pass/Fail, Trigger Out)

Digital channels / MSO

Four analog channels plus 16 digital channels allow users to capture and trigger the waveforms and then analyze the pattern simultaneously with an instrument

Performance analysis

The Power Analysis option provides a full suite of power measurements and analyses that significantly improve measurement efficiency in the design of switching power supplies and power devices

Bode-Plot

The oscilloscope can control the built-in waveform generator or a stand-alone SIGLENT generator to scan the amplitude and phase frequency response of the DUT and display the data as a Bode plot. This can replace expensive network analyzers in some applications

Sequence mode

The segmented memory collection stores the waveform in multiple memory segments (up to 80,000) and each segment stores a triggered waveform and the dead time information. The interval between segments can be as small as 2 μs. All segments can be played back with the history function

Search and navigate

The oscilloscope can search for user-specified events in a frame. Events marked by the search can be automatically retrieved with Navigate. It can also navigate by time (delay position) and history frame

High signal update rate

With a signal update rate of up to 100,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In sequence mode, the signal acquisition rate can reach 500,000 wfm/s.

Depth recording length

Using hardware-based zoom technology and a recording length of up to
up to 200 Mpts, users can select a slower time base without compromising
the sampling rate, and then quickly zoom in to focus on the area of interest.
Focus on the area of interest

Parameter statistics function

Statistics show the current value, maximum value, minimum value, standard deviation and mean value of up to 12 parameters simultaneously. A histogram is available to show the probability distribution of a parameter. Trend and Track are available to display the parameter value over time.For horizontal parameters like period, all results are extracted from one frame instead of calculating only the first one. This speeds up the statistics on horizontal measurements much more and allows the distribution observation in one frame with histogram and track

Advanced mathematical function

In addition to the traditional operations (+, -, X, /), the FFT, integration, differential, square root and other functions are supported. The FFT function also supports a variety of window functions so that it can be adapted to different spectrum measurement requirements. The Three Modes (Normal, Average and Max Hold) meet different power spectrum observation requirements. In addition, automatic peak detection and markers are supported.

History mode

The history function can record up to 80,000 frames of waveforms. Recording is automatic, allowing the customer to replay the historical waveforms at any time to observe unusual events and quickly locate the area of interest using the cursors or measurements. The failed frames of the mask test can be saved as history

Measurements of a wide range of parameters

Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay, providing a total of over 50 different types of measurements. Measurements can be made within a specified gate period. Measurements in mathematical, reference and history frames are supported

Hardwarebasierte hochgeschwindigkeits Maskentestfunktion

Hardware based high speed mask test function

The oscilloscope uses a hardware-based mask test function that performs up to 14,000 pass/fail decisions per second. It is easy to generate custom test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing

Decoding of the serial bus

View the decoded characters via the event list. Quickly and intuitively tabulate bus protocol information. I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL-STD-1553B, SENT and Manchester are supported

Built-in 25 MHz waveform generator

The built-in waveform generator can output waveforms with a frequency of up to 25 MHz and an amplitude of ±3 V. Six basic waveforms are supported along with several types of predefined waveforms and as user-defined arbitrary waveforms

12-bit high resolution

The 12-bit resolution shows you more detail and less noise in the waveform.
Low noise floor: Only 70 µVrms at 500 MHz bandwidth.

0.5% DC gain accuracy.

Release range

The trigger zone is available for extended triggering

Many trigger functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout,
Pattern

Productvideo

SDS2000X HD Series - Introduction

Technical Data

Device specification	SDS2104X HD	SDS2204X HD	SDS2354X HD	SDS2354X Plus
Vertical resolution	12 bit	12 bit	12 bit	8 bit
Bandwidth	100 MHz	200 MHz	350 MHz (500 MHz Option)	350 MHz
Channels	4	4	4	4
Memory depth per channel	200 Mpts	200 Mpts	200 Mpts	200 Mpts
Signal acquisition rate (Normal)	100.000 wfm/s	100.000 wfm/s	100.000 wfm/s	120.000 wfm/s
Signal acquisition rate (sequence)	500,000 wfm/s	500,000 wfm/s	500,000 wfm/s	500,000 wfm/s
Display	10,1 Zoll TFT LCD	10,1 Zoll TFT LCD	10,1 Zoll TFT LCD	10,1 Zoll TFT LCD
Sampling rate	2 GSa/s	2 GSa/s	2 GSa/s	2 GSa/s
Serial Bus Decoding & Trigger	✓	✓	✓	✓
Internal function generator (option)	✓	✓	✓	✓
16 channel logic analyzer (option)	✓	✓	✓	✓
Interface	USB hosts, USB device (USBTMC), LAN (VXI-11 / Telnet / socket), pass / fail, trigger output	USB hosts, USB device (USBTMC), LAN (VXI-11 / Telnet / socket), pass / fail, trigger output	USB hosts, USB device (USBTMC), LAN (VXI-11 / Telnet / socket), pass / fail, trigger output	USB hosts, USB device (USBTMC), LAN (VXI-11 / Telnet / socket), pass / fail, trigger output
