€7,380.00 Net
€8,782.20 incl. VAT
Delivery time: 4 to 5 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3 Years Warranty
Product configuration
Description

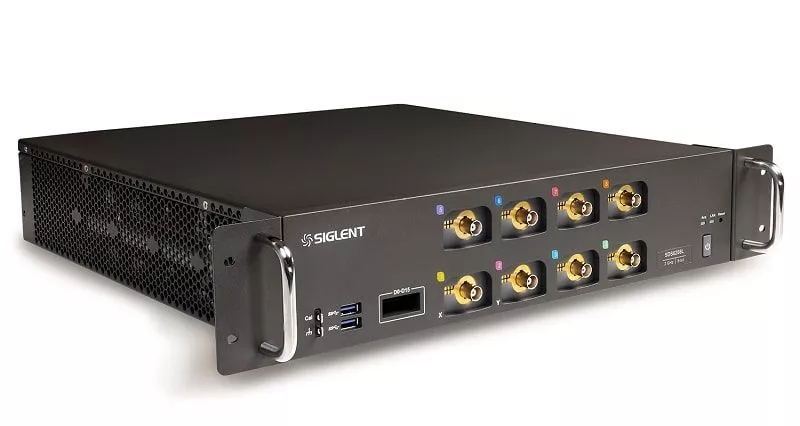

SIGLENT's SDS6054L low-profile digital storage oscilloscope offers 4 analog channels + 16 digital channels in a space-saving package size. This model is available in a bandwidth of 500 MHz and features a maximum sampling rate of 5 GSa/s (10 GSa/s ESR) for each channel, as well as a maximum recording length of 500 Mpts/channel.
Features
- 8/4 analog channels + 1 external trigger. Designed for expansion. Combine multiple units into a high-speed acquisition system with up to 512 channels.
- Up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sampling rate on each channel.
- Low background noise, supports vertical scales from 0.5 mV/div to 10 V/div
- SPO technology
- Signal acquisition rates up to 170,000 wfm/s (normal mode) and 750,000 wfm/s (sequence mode)
- Supports 256-level intensity gradation and color temperature display modes
- 500 Mpts total recording length for all 4 channels
- Digital trigger system
- Intelligent trigger: edge, slope, pulse, window, runt, interval, dropout, pattern, qualified, Nth edge, setup/hold, delay and video (HDTV supported). Zone Trigger simplifies advanced triggering
- Triggering and decoder for serial bus, supports I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL-STD-1553B, SENT and Manchester protocols
- Segmented acquisition mode (sequence) that splits the maximum record length into multiple segments (up to 80,000) according to user-specified trigger conditions, with a very short dead time between segments to capture the qualifying event
- History Waveform Record (History) function, the maximum length of the recorded waveform is 80,000 frames
- Automatic measurements on over 50 parameters, supports statistics with histogram, track, trend, gating measurement and measurements on math, history, memory and ref
- 4 math tracks (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Extensive data analysis functions such as search, navigate, digital voltmeter, counter, waveform histogram, power analysis and eye/jitter analysis
- 16 digital channels (optional)
- 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
- Interfaces include: 4x USB hosts, USB device (USBTMC), 1000 M LAN (VXI-11/ Telnet/ Socket), micro SD card, pass/fail, trigger output, HDMI, 10 MHz input, 10 MHz output
- Built-in web server supports remote control via LAN port with web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
Hardware details
The SDS6000L series uses Siglent's SPO technology with a maximum waveform acquisition rate of up to 170,000 wfm/s (normal mode, up to 750,000 wfm/s in sequence mode), a 256-level intensity gradation display function, and a color temperature display mode. It also uses an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports several powerful trigger modes, including triggering via serial bus. Tools such as history waveform recording, search and navigation functions, mask test, power analysis, and eye/jitter analysis enable the acquisition, storage, and analysis of advanced waveform recordings. An impressive array of measurement and calculation functions, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS6000L. It can be used as a stand-alone oscilloscope by connecting it to an external display and mouse. It can also be controlled remotely via LAN thanks to the convenient built-in web server. When combined with a 64-channel synchronization distributor (SYN64), multiple SDS6000L modules can be organized as a high-speed acquisition system with up to 512 channels. A full SCPI command set over the standard 1000M LAN connection provides very fast data acquisition to accelerate automated test applications.
Product highlights
Eye/Jitter Analysis
Supports eye diagram and jitter analysis/measurement. It can automatically extract the embedded reference clock from serial data and create an eye diagram. Measurements on multiple eye/jitter parameters are provided and mask tests of eye diagrams are supported.
25 MHz function/arbitrary signal generator (optional)
The built-in function/arbitrary waveform generator can output waveforms with a frequency of up to 25 MHz and an amplitude of ±3 V. Six basic waveforms plus several types of arbitrary waveforms are integrated.
Measurements of a wide range of parameters
Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay, providing a total of over 50 different types of measurements. Measurements can be made within a specified gate period. Measurements in mathematical, reference and history frames are supported.
Depth recording length
Using a hardware-based zoom technique and a recording length of up to 500 Mpts, users can select a slower time base without affecting the sampling rate and then quickly zoom in to focus on the area of interest.
Multiple trigger functions
Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth Edge, Setup/Hold, Delay and Serial Trigger.
Decoding of the serial bus
View the decoded characters via the event list. Quickly and intuitively tabulate bus protocol information. I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL-STD-1553B, SENT and Manchester are supported.
Digital channels / MSO (optional)
Four analog channels plus 16 digital channels allow users to capture and trigger the waveforms and then analyze the pattern simultaneously with an instrument.
Full connectivity
HDMI (1280 x 800) x1, USB host 3.0 x2, USB host 2.0 x2, USB device 2.0 (USBTMC) x1, 1000M LAN (VXI-11/Telnet/Socket) x1, Micro SD card x1, Auxiliary output (Pass/Fail , Trigger output) x1, 10 MHz input x1, 10 MHz output x1.
Flexible multi-channel high-speed acquisition system
Standard sizes: 4-channel models - 1RU, 8-channel models - 2RU.
Multiple units are combined into a high-speed acquisition system with up to 512 channels by triggering them with low-skew synchronization signals from the SYN64 64-channel synchronization distributor.
The host can access each unit via 1000 MB LAN. A full SCPI instruction set is provided for easy data acquisition, as well as LabVIEW and IVI drivers. The LAN connection is LXI compliant.
Sampling clocks are synchronized between all units in the test system by cascading the 10 MHz in and 10 MHz out clocks in a daisy chain
High signal update rate
With a signal update rate of up to 170,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In sequence mode, the signal acquisition rate can reach 750,000 wfm/s.
Technical Data
| Model comparison |  SDS6208L |  SDS6204L |  SDS6108L |  SDS6104L |  SDS6058L |  SDS6054L |
|---|---|---|---|---|---|---|
| Bandwidth | 2GHz | 2GHz | 1GHz | 1GHz | 500MHz | 500MHz |
| Channels | 8 + EXP | 4 + EXP | 8 + EXP | 4 + EXP | 8 + EXP | 4 + EXP |
| Real-time sample rate | 5 GSa/s (10 GSa/s ESR) on each channel | 5 GSa/s (10 GSa/s ESR) on each channel | 5 GSa/s (10 GSa/s ESR) on each channel | 5 GSa/s (10 GSa/s ESR) on each channel | 5 GSa/s (10 GSa/s ESR) on each channel | 5 GSa/s (10 GSa/s ESR) on each channel |
| Capture Rate | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) | 170,000 wfm/s (normal mode), 750,000 wfm/s (sequential mode) |
| memory depth | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) | 500 Mpts/ch (single channel), 250 Mpts/ch (dual channel), 125 Mpts/ch (3 or 4 channels) |
