€8,520.00 Net
€10,138.80 incl. VAT
Delivery time: 4 to 5 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

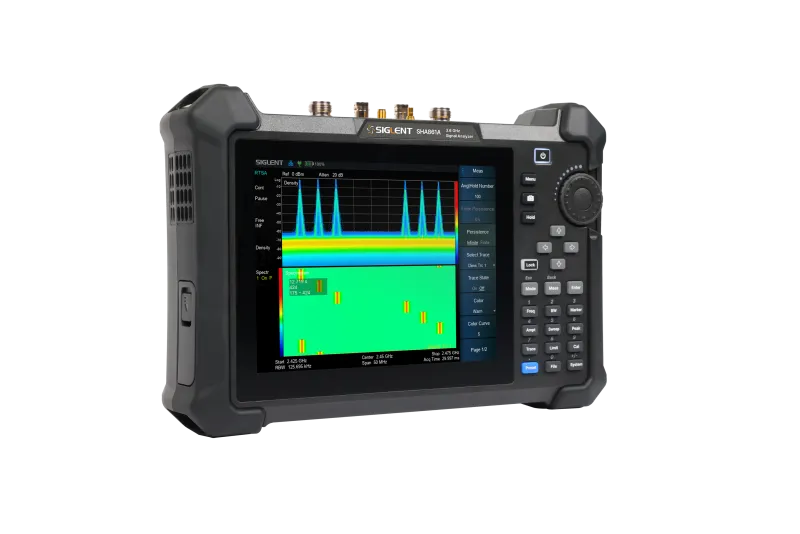

The SHA861A is a portable signal analyser with integrated spectrum analysis, vector network analysis and cable/antenna tests.Features
- Frequency range 9 kHz~3.6
- Displayed average noise level (DANL) -165 dBm/Hz
- SSB phase noise -104 dBc/Hz.@1 GHz, 10 kHz offset
- Analysis bandwidth 40 MHz
- 5G NR OTA measurement, multi-PCI and multi-beam analysis
- LTE FDD and TDD OTA measurement, multi-PCI analysis
- Channel power, occupied bandwidth, power of neighbouring channels, SHI and TOI etc.
- IQ data acquisition in 110 MHz bandwidth
- Real-time spectrum analysis in 110 MHz bandwidth, 100 % POI time 3.51 μs
- Pulse profile measurements
- Indoor and outdoor map for coverage mapping
- Trace recording/playback with GNSS location
- AM/FM/PM analogue modulation analysis and ASK/FSK/PSK/MSK/QAM digital modulation analysis
- AM/FM/PM Analogue Modulation Audio Tune & Listening
- Field strength (EMF) and EMI measurements
- Independent source up to 7.5 GHz
- Vector network analyser, 1-path, 2-ports, S11 and S21 network analysis
- S11 directivity 40 dB, S21 dynamic 114 dB
- Cable and antenna test, distance to fault and time domain analysis
- TTA test, bias voltage 12 V to 32 V DC
- Rechargeable battery Working time 2.5 hours, 3.2 kg net weight
- 8.4-inch multi-touch screen, mouse and keyboard supported
Functional details
The SHA860A series supports a frequency range from 9 kHz to 7.5 GHz and a real-time bandwidth of 110 MHz. The models offer advanced features such as 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis and GPS-synchronised indoor/outdoor mapping. This enables technicians to optimise beam performance, troubleshoot interference and accelerate network deployment with precision. At the same time, the integrated design improves the efficiency and mobility of on-site testing.
Product highlights
5G NR OTA measurement
During the rollout of 5G base stations, operators require precise validation of network quality and beam power. The SHA860A's 5G NR OTA mode demodulates signals to extract key parameters, including frequency, physical cell identity (PCI), SSB index, frequency error and error vector magnitude (EVM) for the SSB portion, which are visualised via constellation diagrams. This functionality is crucial for the optimisation of 5G non-standalone (NSA) deployments and ensures seamless coordination between LTE and 5G networks.
LTE TDD/FDD OTA measurement
In addition to EVM measurements and constellation diagrams, the LTE OTA test function provides comprehensive demodulation metrics such as PCI, sector ID, cell group, frequency error, time offset, synchronisation status and power level (PSS/SSS/CRS/PBCH). By analysing signal quality, channel performance and interference across multiple cells, technicians can implement targeted strategies to improve network efficiency and usability.
Real-time spectrum analysis
With a real-time bandwidth of 110 MHz and a processing speed of 300,000 FFT/s, the SHA860A captures transient signals as short as 3.51 µs with a 100 per cent probability of intercept (POI). Advanced tools such as frequency mask triggering (FMT), density, 3D, spectrogram and power versus time (PvT) displays enable multi-dimensional analysis of complex signals, ideal for interference search and spectrum monitoring in dynamic 5G environments.
Cable and antenna testing
Component defects affect the performance of base stations, leading to coverage gaps and signal strength degradation. The SHA860A simplifies maintenance by quickly measuring cable loss, return/insertion loss, VSWR and distance to faults. An optional upgrade adds the functionality of a 1-path 2-port vector network analyser that supports S11/S21 testing, Smith charts and a remarkable 114 dB dynamic range for precise amplitude/phase response analysis.
Pulse Profile Analysis
The pulse analysis function provides 10,001 measurement points to evaluate power, pulse transitions and signal characteristics using multiple detection modes (positive/negative peaks, samples, averages and conventional values). This ensures rigorous validation of RF device performance under real-world conditions.
IQ data acquisition
The signal and spectrum analyser with IQ data acquisition function is a common tool for signal acquisition. Equipped with 1 GB RAM, 300 MHz sampling rate and 110 MHz bandwidth, the SHA860A offers a powerful combination of specifications, features and portability for users acquiring data in the field environment. Users can transfer and store IQ data via USB or LAN for offline analysis to reproduce signals and visualise spectrum details with unmatched clarity.
Indoor/Outdoor Mapping
beyond base station testing, identifying 5G/LTE coverage in specific areas is critical. With indoor/outdoor mapping, technicians can locate base stations, track antenna orientation/height and identify zones with poor coverage or high interference. With data logging, playback and an accuracy of ±0.01 ppm after GPS lock, it simplifies network optimisation in both indoor and outdoor areas.
Technical Data
| Model comparison |  SHA861A |  SHA862A |
|---|---|---|
| Frequency range | 9 kHz~3.6 GHz | 9 kHz~7.5 GHz |
| Resolution bandwidth (RBW) | 1 Hz ~ 10 MHz, in 1-3-10 sequence | 1 Hz ~ 10 MHz, in 1-3-10 sequence |
| Phase noise | -104 dBc/Hz | -104 dBc/Hz |
| Accuracy of the total amplitude | ±0.7 dB | ±0.7 dB |
| Display of the average noise level (DANL) | -165 dBm/Hz | -165 dBm/Hz |
| Analysis bandwidth | 40 MHz (opt.) | 110 MHz (opt.) |
| Battery life | 2.5 hours | 2.5 hours |
| Display | TFT LCD, 800 x 600, 8.4 inch multi-touch screen | TFT LCD, 800 x 600, 8.4 inch Multi-touch screen |
