Description

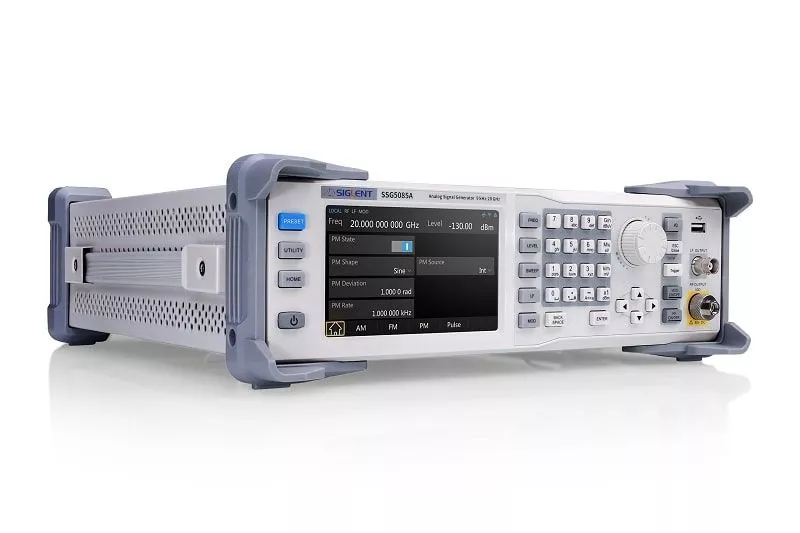

Siglent's SSG5083A signal generator provides an output frequency range of 9 kHz to 13.6 GHz and supports AM, FM and PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions.
Features
- Frequency up to 13.6 GHz / 20 GHz
- 0.001 Hz resolution of frequency setting
- Level setting range: -130 dBm ~ 25 dBm
- Phase noise: -120 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
- Level error ≤ 0.7 dB (typ.)
- Provides analog AM, FM, PM modulation with internal, external or Int+Ext source.
- Single pulse, double pulse and pulse train generator (option).
- Power meter control kit can easily use the power meter to measure power, control output power and correct line loss
- Capacitive 5-inch TFT touch screen, mouse and keyboard are supported
- Web browser remote control on PC and mobile devices
- Standard interface includes USB host, USB device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
Hardware details
SSG5000A series has a standard OCXO reference hardware module, which ensures high-precision and high-stability signal output inside. It is designed for communications, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.
Product highlights
Pulse train generator
Double pulse modulation
External USB power sensor
