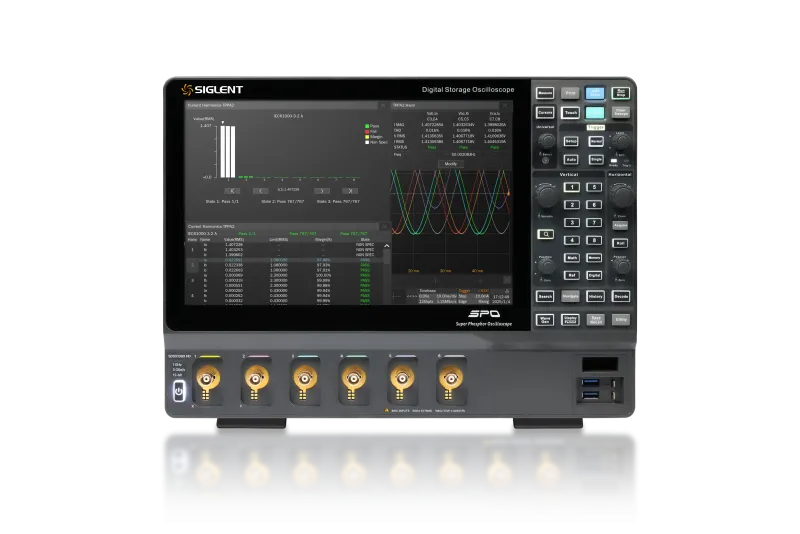

Siglent SDS5106X HD Digital Storage Oscilloscope

Features

• 6 analogue channels + 1 external trigger
• 1 GHz bandwidth with up to 5 GSa/a sampling rate
• 12 bit ADC
• Low noise floor: 140 μVrms at 1 GHz bandwidth
• SPO technology
• Waveform capture rates of up to 160,000 wfm/s (normal mode) and 650,000 wfm/s (sequence mode)
• Supports 256-level intensity gradation and colour temperature display modes
• Up to 2.5 Gpts/channel waveform length
• Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols such as I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
• Function for recording historical waveforms, the maximum recorded waveform length is 170,000 frames
• Automatic measurements of over 60 parameters, supports statistics with histogram, trace, trend, gating measurement and measurements of mathematical, historical and memory traces
• Extensive data analysis functions such as search, navigate, digital voltmeter, counter, waveform histogram, bode diagram, power analysis and double pulse test
• Hardware-based high-speed average, high resolution; hardware-based high-speed mask test function with mask editor tool for creating customised masks
• External 50 MHz waveform generator is supported
• Interfaces include: 1 x USB host 3.0, USB 2.0 host, USB 3.0 device (USBTMC), 1000M LAN, HDMI, external trigger input, aux output (pass/fail, trigger output), 10 MHz input, 10 MHz output
• The integrated web server enables remote control via the LAN port using a web browser. Supports SCPI remote control commands
• Supports external mouse and keyboard
