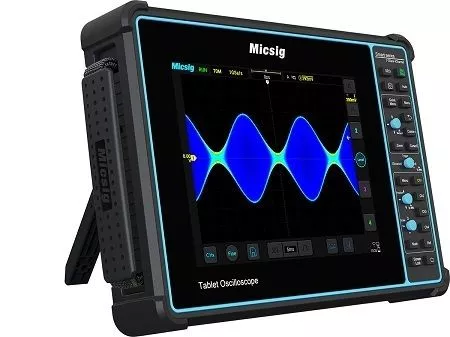

Micsig STO1004 Tablet Oscilloscope

The STO1004 is a 4-channel tablet oscilloscope with 100 MHz bandwidth, classic control buttons and touch screen.

€486.00*

Content: 1
  • 3 years warranty
  • 2.5% advance payment discount
Free shipping

In Stock, Delivery time: 1 - 3 days

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: STO1004
Manufacturer: Micsig

Description

The STO1004 is an oscilloscope of the Miscig STO series, an innovative  oscilloscope series that can be operated purely via touch. In addition to touch screen operation, the STO1004 also has rotary encoders. A customised version of Android is used as the operating system, giving the device a high level of system compatibility. In combination with the battery operation and the touch screen, the STO1004 Plus oscilloscope is ideal for mobile use as well as for use as a desktop oscilloscope. The STO1004 Plus has a sampling rate of up to 70 Mpts memory depth, a signal acquisition rate of up to 130,000 wfm/s (segmented memory mode), 4 channels, 100 MHz bandwidth and 1 GSa/s sampling rate. Furthermore, it has a touch LCD display with a resolution of 800 * 600 pixels, which supports multi-touch operation.

The touch operation of the Micsig STO1004 is intuitive. This simple operation is of course indispensable for users of smartphones and tablets today, but for an oscilloscope it is new and innovative.

Thanks to the digital trigger system, trigger jitter is very low and triggering is highly precise. In addition, the oscilloscope supports serial bus triggers and bus decoding.



Features

  • Compact oscilloscope with 4 channels
  • Bandwidth 100 MHz
  • 1 GS/s real-time sampling rate.
  • Android operating system
  • Replaceable battery
  • Up to 70 Mpts memory depth.
  • 130.000 Wfms/s acquisition rate
  • 8"/20.3 cm industrial LCD, 800x600 resolution, capacitive multi-point touch screen.
  • Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, ground
  • Connection for probe calibration.
  • Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
  • PC software, iOS and Android mobile app for remote control of the oscilloscope.
  • Built-in 32GB memory for waveform and video recording.
  • 7500mAh lithium battery, battery life up to 5 hours.
  • Screen sharing via wifi, USB and HDMI
Micsig STO1004 FrontMicsig STO1004 Zubehör

Oscilloscope features

Productvideo

SATO1004 - Unboxing

Technical Data

Oscilloscope ModelSATO1004 Micsig Front
STO1004
TO1004-Micsig-transparent
TO1004
SATO1004 Micsig Front
STO2002
Operating systemAndroidAndroidAndroid
Bandwidth100 MHz100 MHz200 MHz
Channels442
Rise time≤3.5ns ≤3.5ns ≤1.75ns
Memory depth70 Mpts110 Mpts70 Mpts
Signal acquisition rate130.000 wfm/s78.000 wfm/s130.000 wfm/s
Resolution8 bit8 bit8 bit
Display8 inch TFT LCD10.1 inch TFT LCD8 inch TFT LCD
Sampling rate1 GSa/s1 GSa/s1 GSa/s
Rotary encoderX
Internal memory32 GB32 GB8 GB
InterfacesWi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, groundingWi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, groundingUWi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding
SafetyCAT I 300 Vrms (1-MΩ input)CAT I 300 Vrms (1-MΩ input)CAT I 300 Vrms (1-MΩ input)
Trigger modesEdge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.
Bus decodingUART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)
Battery7500 mAh Lithium-ion battery7500 mAh Lithium-ion battery7500 mAh Lithium-ion battery
