€2,969.00*
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Delivery time: 8 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

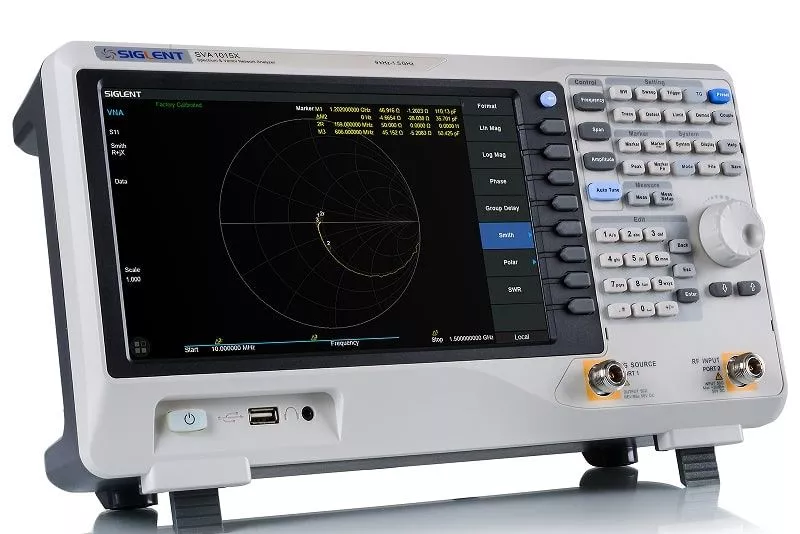

The SVA1032X is a network and spectrum analyser and offers a bandwidth of 3.2 GHz as well as reliable and automatic measurement.
Features
- Vector network analysis from 100 kHz - 3.2 GHz
- Distance to fault (optional)
- Frequency range from 9 kHz to 3.2 GHz
- -165 dBm/Hz Displayed average noise level (typ.)
- -98 dBc/Hz at 10 kHz Offset phase noise (1 GHz, typ.)
- 1 Hz Minimum resolution bandwidth (RBW)
- Tracking generator (Std.)
- EMI filter and quasi-peak detector kit (opt.)
- Extended measurement kit (optional)
- 10.1-inch multi-touch screen, mouse and keyboard supported
- Web browser remote control on PC and mobile devices and file operation
Hardware details
The SIGLENT SVA1000X series spectrum and vector network analysers are powerful and flexible tools for RF signal and network analysis. With a frequency range of up to 7.5 GHz, the analyser provides reliable automatic measurements and multiple operating modes: the base model is a spectrum analyser and vector network analyser, optional features include a distance-to-fault locator, a vector signal modulation analyser. Applications include broadcast monitoring/evaluation, site survey, S-parameter measurement, cable and antenna testing, analogue/digital modulation analysis, EMI pre-compliance testing, research and development, education, production and maintenance.
Product highlights
Noise level
The average displayed noise level is -165 dBm/hz
Resolution bandwidth
The SVA1000X series has a resolution bandwidth (RBW) of at least 1 Hz
Phase noise
Phase noise <-98 dBc/Hz@1 GHz
Multi-touch screen
The SVA1000X series has a 10.1-inch display with multi-touch screen
EMI test kit
CISPR 16-1-1 EMI filter and quasi-peak detector, log scale and limit line
Distance to fault mode
Cable and antenna test based on timing domain analysis
Vector network analyser mode
100k-7.5 GHz Vector S11 and S21 measurement, overlay display for multiple formats.
Modulation analyser mode
AM/FM,ASK/FSK/PSK/MSK/QAM Vector signal modulation analysis
Technical Data
| Model comparison |  SVA1015X |  SVA1032X |  SVA1075X |
|---|---|---|---|
| Maximum bandwidth | 1.5 GHz | 3.2 GHz | 7.5 GHz |
| Resolution bandwidth (RBW) | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence |
| Display of the average noise level (DANL), min. | -156 dBm/Hz Displayed Average Noise Level | -161 dBm/Hz Displayed Average Noise Level | -165 dBm/Hz Displayed Average Noise Level |
| Preamplification | Yes | Yes | Yes |
| Tracking generator | Yes | Yes | Yes |
| Vector network analysis | Yes | Yes | Yes |
| "Distance To Fault" | Optional | Optional | Optional |
| Modulation analysis | Optional | Optional | Optional |
| EMI pre-compliance test kit (EMI) | Optional | Optional | Optional |
| Extended measurement kit (AMK) | Optional | Optional | Optional |
| Touch display | Yes | Yes | Yes |
