Description

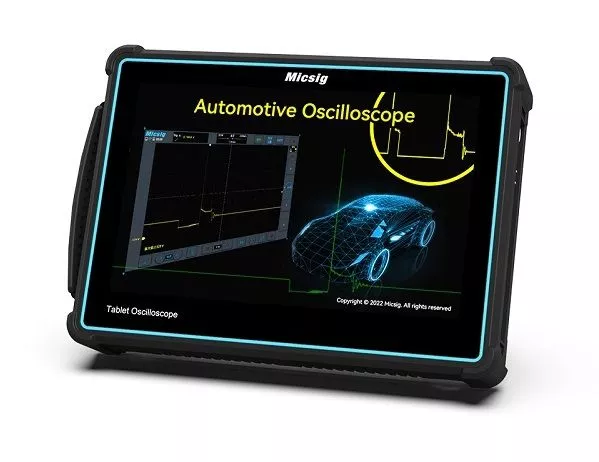

The ATO2002 is an innovative automotive oscilloscope that is the world's first oscilloscope in mobile field use that can be operated purely via the 10.1 inch touch screen and provides comprehensive automotive diagnostic functions. Battery operation can last up to 4 hours and can be extended indefinitely by replacing with a spare battery if required.
The ATO2002 focuses on automotive diagnostics, and offers high usability through the use of an Android operating system. The device also has an external trigger output so that it can be used as an equivalent table oscilloscope in the laboratory. In addition to serial bus decoding, the ATO2002 also offers various automotive diagnostic functions, such as charging and starting circuit tests, pressure tests such as cylinder compression and fuel pressure.
The ATO2002 features a 1GHz sampling rate, 110 Mpts memory depth, a signal acquisition rate of up to 78,000 wfm/s, 4 channels, 200 MHz bandwidth and 2 channels. In addition, the touch LCD display offers a resolution of 1280 * 800 pixels, which also supports multi-touch operation. The oscilloscope app (IOS & Android) allows remote control of the oscilloscope via WIFI. In addition, the oscilloscope has a USB and Ethernet interface.
The touch operation of the Micsig ATO2002 is extremely intuitive. This simple operation is indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. Thanks to the digital trigger system, trigger jitter is very low and triggering is highly precise. In addition, the oscilloscope supports serial bus triggers and bus decoding.
Features
- Integrated automotive diagnostic software
- Comprehensive presets for automatic diagnosis
- Lifetime free software online upgrade
- compact oscilloscope with 2 channels
- Bandwidth of 200 MHz
- 1 GS/s real-time sampling rate.
- Android operating system
- Replaceable battery
- Up to 110 Mpts memory depth.
- 78.000 Wfms/s acquisition rate
- 10.1"/20.3 cm industrial LCD, 1280x600 resolution, capacitive multi-point touch screen.
- Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, ground
- Connection for probe calibration.
- Bus trigger and decoding supported: UART, I²C, SPI, CAN, CAN FD, LIN, Flexray.
- PC software, iOS and Android mobile app for remote control of the oscilloscope.
- Built-in 32 GB memory for waveform and video recording.
- Lithium battery, battery life up to 5 hours.
- Screen sharing via wifi, USB and HDMI
- Portable tablet design with all-in-one functions
Car diagnosis examples
Charge/start current circuit tests
The ATO oscilloscopes support testing and checking of 12 V and 24 V charge/start, charge ripple, starting current and other tests
Special tests
Supports testing of ABS, accelerator pedal, throttle position, fuel pressure, air flow meter, crankshaft, camshaft, knock, MAP, etc.
Network tests
The network tests include CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line. In addition, a variety of serial protocols such as UART, CAN, CAN FD, LIN, SPI, I²C can be decoded.
Combination tests
Oscilloscope features
Android system with 32 Gbyte
The oscilloscope offers the world's first Android-based oscilloscope operating system and has 32 Gbyte of memory.
Touch-screen keyboard
Software keyboard for familiar fast input on smart devices.
Many trigger functions
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for a wide range of measurement requirements.
70 Mpts memory depth
Allows zooming in on a range of the acquired signal via touch screen.
Mouse operation
Micsig oscilloscopes can also be easily controlled using a standard USB mouse.
Automatic scaling
Automatic adjustment of the offset in real time according to the size and frequency of the signal.
High & Low Pass Filter
The filter function helps engineers to exclude insignificant frequencies to eliminate interference and observe the true state of the signal.
Calculation tools
Various tools are available in the form of apps for electronic calculations.
Screen sharing function
the oscilloscope's screen content can be easily streamed to an external monitor via the built-in HDMI connector.
Remote control
The oscilloscope has PC software and a mobile phone app (Android/IOS) for remote control via WIFI and USB.
Technical Data
| Model |  ATO3004 | ATO3002 | ATO2004 | ATO2002 | ATO1004 |
|---|---|---|---|---|---|
| Bandwidth | 300 MHz | 300 MHz | 200 MHz | 200 MHz | 100 MHz |
| Analogue channel | 4 | 2 | 4 | 2 | 4 |
| Rise time | ≤1.16ns | ≤1.16ns | ≤1.75 ns | ≤3.5 ns | ≤3.5 ns |
| Max. Sampling rate | 2GSa/s | 2GSa/s | 2GSa/s | 1GSa/s | 1GSa/s |
| Max. Storage depth | 220Mpts | 220Mpts | 220Mpts | 110 Mpts | 110 Mpts |
| Waveform capture rate (max.) | 300.000 wfms/s | 300.000 wfms/s | 300.000 wfms/s | 78.000 wfms/s | 78.000 wfms/s |
| Input sensitivity range | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 10V/div (50Ω) | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 10V/div (50Ω) | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 10V/div (50Ω) | 1 mV/div ~ 10 V/div | 1 mV/div ~ 10 V/div |
| Bandwidth filter | 20 MHz、 Low pass (up to 30 Hz) | 20 MHz、 Low pass (up to 30 Hz) | 20 MHz、 Low pass (up to 30 Hz) | 20 MHz, low pass (up to 30 kHz) | 20 MHz, low pass (up to 30 kHz) |
| Segmented memory | Supports acquisition of a maximum of 10,000 waveform events | Supports acquisition of up to 10,000 waveform events | Supports the capture of a maximum of 10,000 waveform events | Not supported | Not supported |
| Input impedance | 1MΩ/50Ω | 1MΩ/50Ω | 1MΩ/50Ω | 1MΩ | 1MΩ |
| Time base range | 1ns/div ~ 1ks/div | 1ns/div ~ 1ks/div | 1ns/div ~ 1ks/div | 2ns/div ~ 1ks/div | 2ns/div ~ 1ks/div |
| Support test | Charge/start circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K-line), combination tests | Charging/starting circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K-line), combination tests | Charging/starting circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K-line), combination tests | Charging/starting circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K-line), combination tests | Load/start circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K-line), combination tests |
| Bus decoding | UART, CAN, CAN FD, LIN, SPI, I²C | UART, CAN, CAN FD, LIN, SPI, I²C | UART, CAN, CAN FD, LIN, SPI, I²C | UART, CAN, CAN FD, LIN, SPI, I²C | UART, CAN, CAN FD, LIN, SPI, I²C |
| Interfaces | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、Ground、HDMI、Trigger Output | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、Ground、HDMI、Trigger Output | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、Ground、HDMI、Trigger Output | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、Ground、HDMI、Trigger Output | Wi-Fi、USB 3.0/2.0 Host、USB Type-C、Ground、HDMI、Trigger Output |
| Memory | 32 GB | 32 GB | 32 GB | 32 GB | 32 GB |
| Display | 10.1-inch LCD capacitive touch display, 1280 x 800 resolution, 11 x 10 grid | 10.1-inch LCD capacitive touch display, 1280 x 800 resolution, 11 x 10 grid | 10.1-inch LCD capacitive touch display, 1280 x 800 resolution, 11 x 10 grid | 10.1-inch LCD capacitive touch display, 1280 x 800 resolution, 11 x 10 grid | 10.1-inch LCD capacitive touch display, 1280 x 800 resolution, 11 x 10 grid |
| Battery | 7.4 V, 7500 mAh Li-Ion battery / 2 hours battery life | 7.4 V, 7500 mAh Li-Ion battery / 2 hours lifetime | 7.4 V, 7500 mAh Li-Ion battery / 2 hours lifetime | 7.4 V, 7500 mAh Li-Ion battery / 3 hours lifetime | 7.4 V, 7500 mAh Li-Ion battery / 3 hours lifetime |
| Size/net weight | 265 * 192 * 50 mm / 1.9 kg (with battery) | 265 * 192 * 50 mm / 1.9 kg (with battery) | 265 * 192 * 50 mm / 1.9 kg (with battery) | 265 * 192 * 50 mm / 1.9 kg (with battery) | 265 * 192 * 50 mm / 1.9 kg (with battery) |
