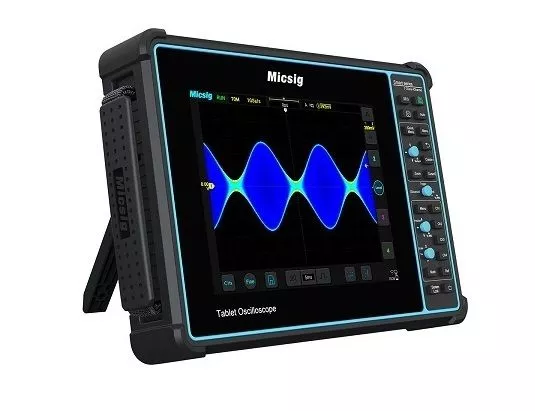

Micsig SATO1004 Automotive Oscilloscope

The SATO1004 is a 4 channel oscilloscope with extensive automotive diagnostic functions & 100 MHz bandwidth.

€627.00*

Content: 1
  • 3 years warranty
  • 2.5% advance payment discount

Free shipping

In Stock, Delivery time: 1 - 3 days

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: SATO1004
Manufacturer: Micsig

Description

The SATO1004 is the successor model of the ATO1104, an innovative automotive oscilloscope that is the world's first oscilloscope in mobile field use that can be operated purely via touch and has comprehensive automotive diagnostic functions. Battery operation can last up to 5 hours and can be extended indefinitely by replacing with a spare battery if necessary.

Like its predecessor, the SATO1004 focuses on automotive diagnostics, but improves usability by switching from a Linux operating system to Android. Furthermore, in addition to pure touch input, the new model has rotary encoders and analogue keys, as well as an external trigger output so that the device can also be used as a table-top oscilloscope.  In addition to serial bus decoding, the SATO1004 also offers various automotive diagnostic functions, such as charging and starting circuit tests, pressure tests such as cylinder compression and fuel pressure.

The SATO1004 features a sampling rate of up to 70 Mpts memory depth, a signal acquisition rate of up to 130,000 wfm/s (segmented memory mode), 4 channels, 100 MHz bandwidth and 1 GSa/s sampling rate. In addition, the touch LCD display offers a resolution of 800 * 600 pixels, which also supports multi-touch operation. The oscilloscope app (IOS & Android) allows remote control of the oscilloscope via WIFI. In addition, the oscilloscope has a USB and Ethernet interface.

The touch operation of the Micsig SATO1004 is extremely intuitive. This simple operation is of course indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. Thanks to the digital trigger system, trigger jitter is very low and triggering is highly precise. In addition, the oscilloscope supports serial bus triggers and bus decoding.

Features

  • Integrated automotive diagnostic software
  • Compact oscilloscope with 4 channels
  • Bandwidth of 100 MHz
  • 1 GS/s real-time sampling rate.
  • Android operating system
  • Replaceable battery
  • Up to 70 Mpts memory depth.
  • 130,000 Wfms/s acquisition rate.
  • 8"/20.3 cm industrial LCD, 800x600 resolution, capacitive multi-point touch screen.
  • Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, ground.
  • Connection for probe calibration.
  • Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
  • PC software, iOS and Android mobile app for remote control of the oscilloscope.
  • Built-in 32 GB memory for waveform and video recording.
  • Lithium battery, battery life up to 5 hours.
  • Screen sharing via wifi, USB and HDMI.
Micsig SATO1004 FrontMicsig SATO1004 Standard Zubehör

Car diagnostic examples

Automotive application examples

air flow meter and throttle positionsensorMass Air Flow Sensor and Throttle Paddle Position Test
Audi lin bus testAudi Lin bus test
can bus analyzing micsig automotive oszilloskopCan bus communication and power supply test
canister solenoidTank Solenoid Valve Test
mazda air flow testMazda air mass meter test
bmw air flow testBMW air mass meter test

Oscilloscope Features

Productvideo

SATO1004 - Decoding CAN BUS
SATO1004 - Introduction

Technical Data

Oscilloscope ModelSATO1004 Micsig Front
SATO1004
TO1004-Micsig-transparent
ATO1004
SATO1004 Micsig Front
SATO2002
Automotive diagnosticsCharging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust gas pressure, fuel pressure, etc.)Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust gas pressure, fuel pressure, etc.)
Operating systemAndroidAndroidAndroid
Rise time≤3.5ns ≤3.5ns ≤3.5ns
Bandwidth100 MHz100 MHz200 MHz
Channels442
Memory depth70 Mpts110 Mpts70 Mpts
Signal acquisition rate130.000 wfm/s78.000 wfm/s130.000 wfm/s
Resolution8 bit8 bit8 bit
Display8 inch TFT LCD10.1 inch TFT LCD8 inch TFT LCD
Sampling rate1 GSa/s1 GSa/s1 GSa/s
Rotary encoderXX
Internal memory32 GB32 GB32 GB
InterfacesWi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, groundingWi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, groundingUSB 2.0 Host & Device, Ethernet/LAN, Wifi
SafetyCAT I 300 Vrms (1-MΩ input)CAT I 300 Vrms (1-MΩ input)CAT I 300 Vrms (1-MΩ input)
Trigger modesEdge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video.
Bus decodingUART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included)
Battery7500 mAh Lithium-ion battery7500 mAh Lithium-ion battery7500 mAh Lithium-ion battery
