€747.00 Net
€879.41 incl. VAT
Delivery time: 1 week
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

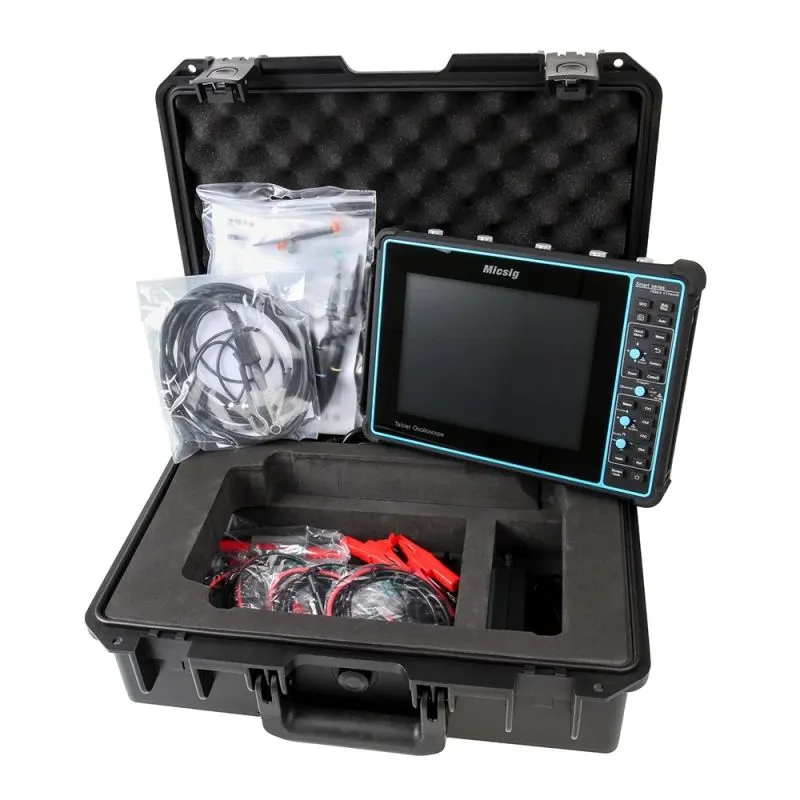

The SATO1004 is the successor model to the ATO1104, an innovative automotive oscilloscope that is the world's first oscilloscope in mobile field use that can be operated purely via touch and has comprehensive vehicle diagnostics functions. Battery operation can last up to 5 hours and can be extended indefinitely if required by replacing with a spare battery.
Like its predecessor, the SATO1004 focuses on automotive diagnostics, but improves user-friendliness by switching from a Linux operating system to Android. In addition to pure touch input, the new model also has rotary encoders and analogue buttons as well as an external trigger output so that the device can also be used as a desktop oscilloscope. In addition to serial bus decoding, the SATO1004 also offers various automotive diagnostic functions, such as charging and starter circuit tests, pressure tests such as cylinder compression and fuel pressure.
The SATO1004 has a sampling rate of up to 70 Mpts memory depth, a signal acquisition rate of up to 130,000 wfm/s (segmented memory mode), 4 channels, 100 MHz bandwidth and 1 GSa/s sampling rate. In addition, the touch LCD display offers a resolution of 800 * 600 pixels, which also supports multi-touch operation. The oscilloscope app (IOS & Android) enables remote control of the oscilloscope via WIFI. The oscilloscope also has a USB and Ethernet interface.
The touch operation of the Micsig SATO1004 is extremely intuitive. This simple operation is, of course, indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. Thanks to the digital trigger system, trigger jitter is very low and triggering is highly precise. The oscilloscope also supports serial bus triggers and bus decoding.
Features
- Integrated vehicle diagnostics software
- compact oscilloscope with 4 channels
- Bandwidth of 100 MHz
- 1 GS/s real-time sampling rate.
- Android operating system
- Replaceable battery
- Up to 70 Mpts memory depth.
- 130.000 Wfms/s acquisition rate
- 8"/20.3 cm industrial LCD, 800x600 resolution, capacitive multi-point touchscreen.
- Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, earthing
- Connection for probe calibration.
- Bus trigger and decoding supported: UART, I²C, SPI, CAN, LIN.
- PC software, iOS and Android mobile app for remote control of the oscilloscope.
- Built-in 32 GB memory for waveform and video recording.
- Lithium battery, battery life up to 5 hours.
- Screen sharing via WiFi, USB and HDMI
Automotive diagnostic examples
Primary ignition test
Ignition diagnosis for primary and secondary ignition
Probe tests
ABS, lambda, knock, fuel sensor diagnostics etc.
Network tests
With network test for CAN, LIN, Flexray & K-line.
Drive diagnostics
Automotive application examples
Oscilloscope features
Android system with 32 Gbyte
The STO1000 offers the world's first Android-based oscilloscope operating system and has 32 Gbytes of memory.
Touch screen keyboard
Software keyboard for the usual fast input on smart devices.
Many trigger functions
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for a wide range of measurement requirements.
70 Mpts memory depth
Allows you to zoom into a range of the acquired signal via touch screen.
Mouse operation
Micsig oscilloscopes can also be easily controlled using a standard USB mouse.
Automatic scaling
Automatic adjustment of the offset in real time according to the size and frequency of the signal.
High & low pass filter
The filter function helps engineers to exclude insignificant frequencies to eliminate interference and observe the true state of the signal.
Calculation tools
Various tools are available in the form of apps for electronic calculations.
Screen sharing function
the screen content of the oscilloscope can be easily streamed to an external monitor via the built-in HDMI connection.
Remote control
The Micsig STO1000 series has PC software and a mobile phone app (Android/IOS) for remote control via WIFI and USB.
Technical Data
| Oscilloscope model |  SATO1004 |  ATO1004 | SATO2002 |
|---|---|---|---|
| Vehicle diagnostics | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.) | Charging circuit, starter motor circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust gas pressure, fuel pressure, etc.) | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.) |
| Operating system | Android | Android | Android |
| Rise time | ≤3.5ns | ≤3.5ns | ≤3.5ns |
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Channels | 4 | 4 | 2 |
| Memory depth | 70 Mpts | 110 Mpts | 70 Mpts |
| Signal acquisition rate | 130.000 wfm/s | 78.000 wfm/s | 130.000 wfm/s |
| Resolution | 8 bit | 8 bits | 8 bit |
| Display | 8 inch TFT LCD | 10.1 inch TFT LCD | 8 inch TFT LCD |
| Sampling rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Rotary encoder | ✓ | X | X |
| Internal memory | 32 GB | 32 GB | 32 GB |
| Interfaces | Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding | Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, earthing | USB 2.0 host & device, Ethernet/LAN, Wi-Fi |
| Safety and security | CAT I 300 Vrms (1 MΩ input) | CAT I 300 Vrms (1 MΩ input) | CAT I 300 Vrms (1 MΩ input) |
| Trigger modes | Edge, pulse, logic, time out, Dwart PW, slope, N edge and video. | Edge, pulse, logic, time out, Dwart PW, slope, N edge and video. | Edge, pulse, logic, time out, Dwart PW, slope, N edge and video. |
| Bus decoding | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) |
| Battery | 7500 mAh Lithium-ion battery | 7500 mAh Lithium-ion battery | 7500 mAh Lithium-ion battery |
Accessories
