Micsig TO1004 Tablet Oscilloscope

The TO1004 has 110 Mpts memory depth, 4 channels, 100 MHz bandwidth and 1 GSa/s sampling rate.

€557.00*

Content: 1
  • 3 years warranty
  • 2.5% advance payment discount

Free shipping

In Stock, Delivery time: 1 - 3 days

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: TO1004
Manufacturer: Micsig

Description

The TO1004 is an oscilloscope from Micsig's latest oscilloscope series, which offers many improvements in terms of features and user-friendliness. Compared to the previous version, the display has been enlarged from 8 to 10.1 inches and now has a resolution of 1280*800 pixels. The SOC has also been improved, ensuring smooth operation at all times.

The touch operation of the Micsig TO1004 is intuitive. This simple operation is of course indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. An adapted version of Android is used as the operating system, which gives the device a high level of system compatibility. In combination with the 5h battery operation and the touch screen operation, the oscilloscope TO1004 is ideal for mobile use as well as for use as a bench top oscilloscope. Due to the digital trigger system, the trigger jitter is very low and the triggering is highly precise. In addition, the oscilloscope supports serial bus triggering and bus decoding of  UART, CAN, LIN, SPI & I2C ex works.

Features

  • Compact oscilloscope with 4 channels
  • Bandwidth 100 MHz
  • 1 GS/s real-time sampling rate.
  • Android operating system
  • Replaceable battery
  • Up to 110 Mpts memory depth.
  • 8"/20.3 cm industrial LCD, resolution 1280x800, capacitive multi-point touch screen.
  • Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger out, ground
  • Connection for probe calibration.
  • Supports bus trigger and decoding: UART, I²C, SPI, CAN, LIN.
  • PC software, iOS and Android mobile app for remote control of the oscilloscope.
  • Built-in 32GB memory for waveform and video recording.
  • 7500mAh lithium battery, battery life up to 5 hours.
  • Screen sharing via WLAN, USB and HDMI

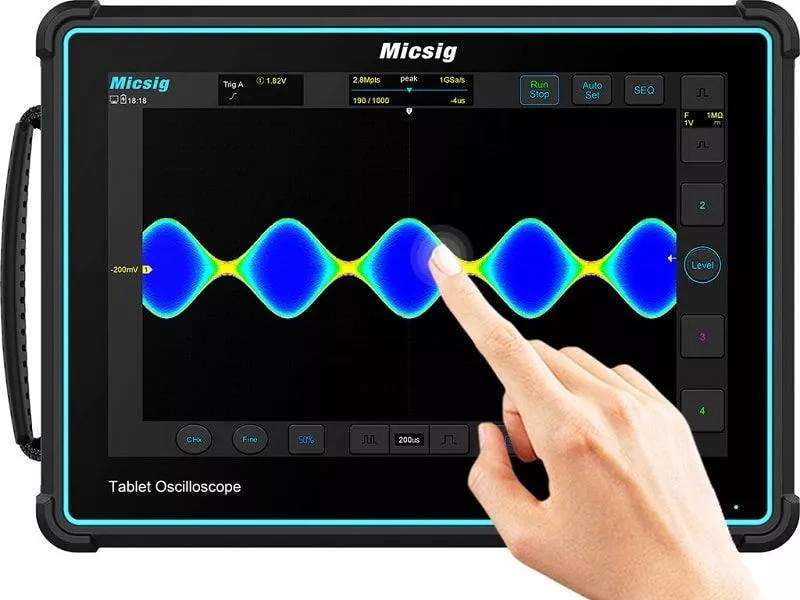

Micsig TO1004 FrontMicsig TO1004 Zubehör

Oscilloscope features

Productvideo

TO1004 - Unboxing
TO1004 - Presentation

Technical Data

Model comparisonTO3004-Micsig-transparent
TO3004
TO3004-Micsig-transparent
TO3002
TO2004-Micsig-transparent
TO2004
TO2004-Micsig-transparent
TO2002
TO1004-Micsig-transparent
TO1004
Bandwidth300MHz300MHz200MHz200MHz100MHz
Channels42424
Signal acquisition rate300.000 wfm/s300.000 wfm/s300.000 wfm/s78.000 wfm/s78.000 wfm/s
Rise time≤1.16ns≤1.16ns≤1.75ns≤1.75ns≤3,5ns
Sampling rate2GSa/S2GSa/S2GSa/S1GSa/S1GSa/S
Storage depth220Mpts220Mpts220Mpts110Mpts110Mpts
Input sensitivity1mV/div ~ 10V/div (1MΩ);1mV/div ~ 10V/div (50Ω)1mV/div ~ 10V/div (1MΩ);1mV/div ~ 10V/div (50Ω)1mV/div ~ 10V/div (1MΩ);1mV/div ~ 10V/div (50Ω)1mV/div ~ 10V/div1mV/div ~ 10V/div
Bandwidth filter20MHz、High Pass / Low Pass (Up to 30Hz)20MHz、High Pass / Low Pass (Up to 30Hz)20MHz、High Pass / Low Pass (Up to 30Hz)20MHz、High Pass / Low Pass (Up to 30KHz)20MHz、High Pass / Low Pass (Up to 30KHz)
Segmented memorySupports up to 10,000 waveform eventsSupport up to 10,000 waveform eventsSupport up to 10,000 waveform eventsXX
Input resistance1MΩ/50Ω1MΩ/50Ω1MΩ/50Ω1MΩ1MΩ
Time base1ns/div ~ 1Ks/div1ns/div ~ 1Ks/div1ns/div ~ 1Ks/div1ns/div ~ 1Ks/div1ns/div ~ 1Ks/div
Trigger typesEdge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, VideoEdge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, VideoEdge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, VideoEdge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, VideoEdge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video
Bus decodingUART, CAN, CAN FD, LIN, SPI, I²CUART, CAN, CAN FD, LIN, SPI, I²CUART, CAN, CAN FD, LIN, SPI, I²CUART, CAN, CAN FD, LIN, SPI, I²CUART, CAN, CAN FD, LIN, SPI, I²C
Mathematical functionsSqrt(), Abs(), Deg(), Rad(), Exp(), Diff(), ln(), Sine(), Cos(), Tan(), Intg(), Log(), arcsin(), arccos(), arctan()Sqrt(), Abs(), Deg(), Rad(), Exp(), Diff(), ln(), Sine(), Cos(), Tan(), Intg(), Log(), arcsin(), arccos(), arctan()Sqrt(), Abs(), Deg(), Rad(), Exp(), Diff(), ln(), Sine(), Cos(), Tan(), Intg(), Log(), arcsin(), arccos(), arctan()Sqrt(), Abs(), Deg(), Rad(), Exp(), Diff(), ln(), Sine(), Cos(), Tan(), Intg(), Log(), arcsin(), arccos(), arctan()Sqrt(), Abs(), Deg(), Rad(), Exp(), Diff(), ln(), Sine(), Cos(), Tan(), Intg(), Log(), arcsin(), arccos(), arctan()
InterfacesWi-Fi, USB 3.0/2.0 host, USB Type-C, ground, HDMI, trigger outputWi-Fi, USB 3.0/2.0 host, USB Type-C, ground, HDMI, trigger outputWi-Fi, USB 3.0/2.0 host, USB Type-C, ground, HDMI, trigger outputWi-Fi, USB 3.0/2.0 host, USB Type-C, ground, HDMI, trigger outputWi-Fi, USB 3.0/2.0 host, USB Type-C, ground, HDMI, trigger output
Memory32GB32GB32GB32GB32GB
Display10.1 inch LCD capacitive touch display,1280*800 resolution10.1 inch LCD capacitive touch display,1280*800 resolution10.1 inch LCD capacitive touch display,1280*800 resolution10.1 inch LCD capacitive touch display,1280*800 resolution10.1 inch LCD capacitive touch display,1280*800 resolution
Battery7.4V、7500mAh lithium-ion battery7.4V、7500mAh lithium-ion battery7.4V、7500mAh lithium-ion battery7.4V、7500mAh lithium-ion battery7.4V、7500mAh lithium-ion battery
Weight265*192*50mm / 1.9kg(With battery)265*192*50mm / 1.9kg(With battery)265*192*50mm / 1.9kg(With battery)265*192*50mm / 1.9kg(With battery)265*192*50mm / 1.9kg(With battery)
