Prodigy Tektronix Osziloscope USB3.0 Protocol Analysis Software

USB 3.0 Protocol Decode Software offers low speed, full speed, and high speed protocol decoding

Price on request

Free shipping

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: PGY-USB3.0
Manufacturer: Prodigy

Description

USB 3.0 Protocol Decode Software offers protocol decoding as specified in the USB 3.0 specification. PGY-USB 3.0 Protocol decode software runs in Tektronix Oscilloscope and provides measurements for protocol decode at the click of a button. This allows engineers to quickly check for USB 3.0 compliance and flexibility to debug the failure. In addition to this, engineers can decode the command and response of USB 3.0 to debug the communication. PGY-USB 3.0 takes advantage of the digital channels of MSO and provides the decoding of USB 3.0 data lines.

Features USB3.0 Software

  • The configuration panel enables the user to load the Tx and Rx signals.
  • The LFPS packets are displayed in a tabular manner and give details of their timing parameters.
  • Under the SuperSpeed selection, the transactions are packetized to USB3.0 packets and displayed.
  • On expanding each packet, details with respect to that packet are displayed.
  • The Protocol View displays the transactions on both the Tx and Rx. This helps in the easy linking of transactions between Tx and Rx.
  • The Detail View window gives a comprehensive detail of the signals being analyzed.
  • It gives details of the bytes in each packet and the timestamp at which the packet is received.
  • The waveform plot is linked with the packet being displayed on the grid.
  • The plot contains various features like bus diagram, zoom, pan, representation of bits on the waveform, and cursors.

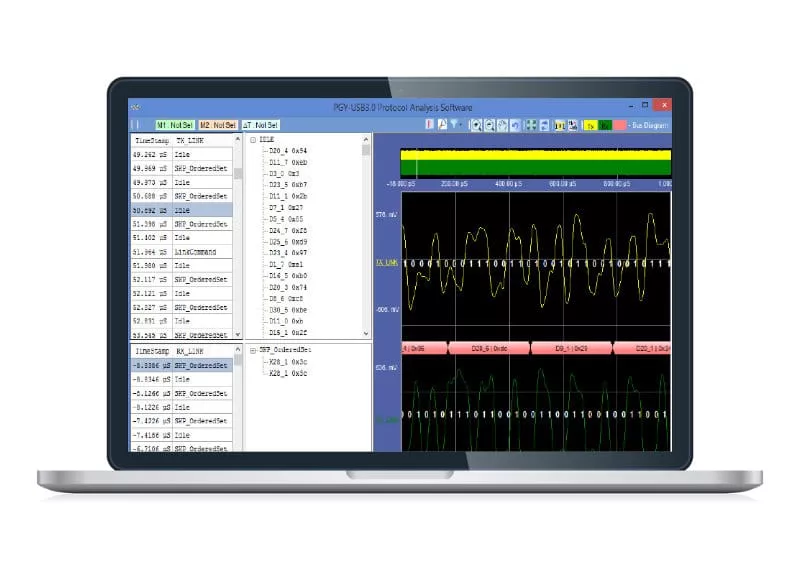

Software View

PGY-RFFE Electrical Validation and Protocol

The PGY-USB3.0 software helps in analyzing both LFPS and Superspeed patterns. The software is able to analyze both scrambled and unscrambled waveforms

Trigger EventTrigger Content
Link Start up Sequence (LSS)Trigger on LSS Phase 1 (TRG_UPR_0)
Trigger on LSS Phase 2 (TRG_UPR_1)
Trigger on LSS Phase 3 (TRG_UPR_2)
PHY Adapter layer ContentPACP_PWR_req
PACP_PWR_cnf
PACP_cap_ind
PACP_EPR_ind
PACP_TEST_MODE_req
PACP_GET_req
PACP_GET_cnf
PACP_SET_req
PACP_SET_cnf
PACP_Test_Data
Data Link layer ContentData_SOF
Data_COF
AFC (Acknowledgement)
NAC (No Acknowledgement)
