€12,700.00 Net
€15,113.00 incl. VAT
Delivery time: 4 to 5 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
Product configuration
Description

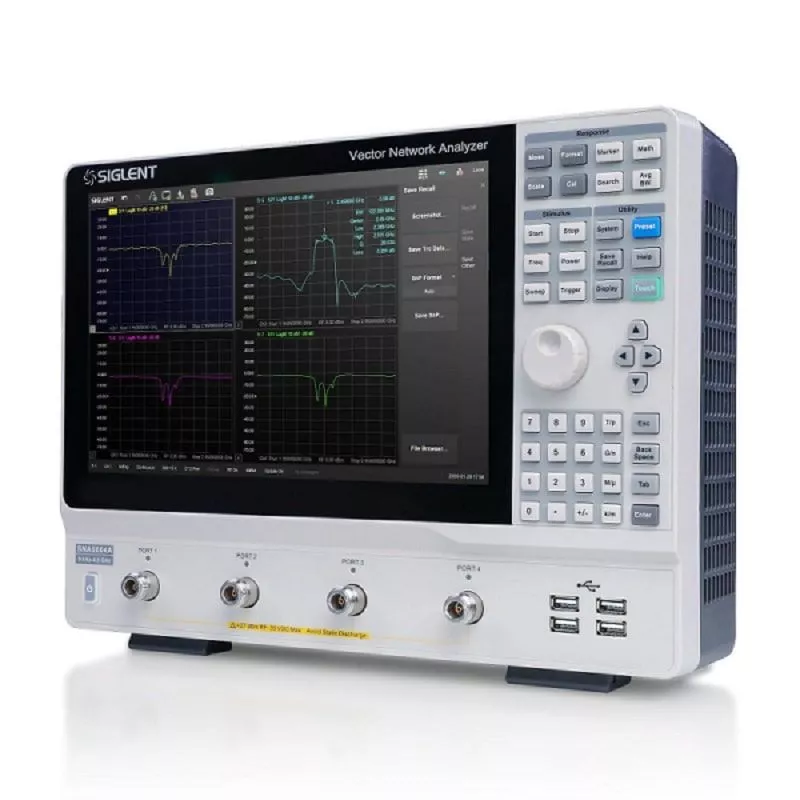

The SNA5004A vector network analyser has a frequency range of 9 kHz to 8.5 GHz and has 4 channels. Designed to provide instant insight into scatter, difference and time domain measurements. The Vector Network Analyser is an effective instrument for determining the Q-factor, bandwidth and insertion loss of a filter. The device offers impedance conversion, measurement plane movement, limit testing, ripple testing, fixture simulation and adapter removal/insertion adjustments. There are five sweep types: Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time and Segment-Sweep mode. The SNA5000A series VNAs also support scattering parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for more flexibility in R&D and manufacturing applications. The Siglent SNA5000A has a very well thought-out and easy-to-use operation, which at the same time offers extensive comfort functions for all tasks. The menu navigation is intuitive to use and all functions and parameters are easy to operate thanks to a graphic display. A total of five sweep types are possible, including linear frequency mode, logarithmic frequency mode, power sweep mode, CW time mode and segment sweep mode.
Features
- Bandwidth 9 KHz to 8.5 GHz
- Nominal output power 180 W, 360 W, 720 W, 1080 W
- USB interface, USB host interface, LAN control interface
- HDMI video interface
- Embedded web server provides remote control via a web browser without the need for drivers or software
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 10 Hz ~ 3 MHz
- Supports bias tees
- Remote control via SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
- 12.1-inch touch screen
- Output level adjustment range: -55 dBm ~ +10 dBm
- Dynamic range: 125 dB
- Calibration modes: response calibration, Enhanced response calibration, Full one-port calibration, Full two-port calibration, Full three-port calibration, Full four-port calibration, TRL calibration
_1920x1920.webp)
Hardware details
With a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, the SNA5000A series provides reliable automatic measurements and numerous functions, available in 2 and 4 channel models.
The SNA5004A spectrum analyser offers the following measurement types & tests.
- Scattering parameter measurement
- Differential parameter measurement
- Receiver measurement
- Time domain parameter analysis
- Limit value test
- Ripple test
- Impedance conversion
- Device simulation
- Remove/insert adapter
Product highlights

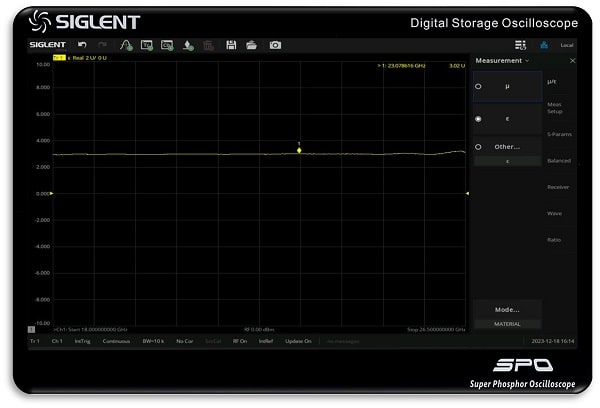

SNA5000A Series
The SNA5000A series offers great user-friendliness and accessibility with an intuitive touch screen (12.1 inch) & numerous remote control options such as a free web interface. The numerous interfaces facilitate working & the transfer of data sets. The SIGLENT SNA5000A series vector network analysers have a frequency range from 9 kHz to 8.5 GHz, with 2 and 4 port models available.
Calibration kit
The SNA5000A supports extended time domain analysis to measure impedance as a function of distance to distinguish between inductive and capacitive transitions. With time domain gating, we can isolate different sections of the device and see the effects in the frequency domain. Another application for TDR is fault location in coaxial cables in mobile phone and CATV installations.
Embedding & de-embedding
In the RF and microwave range, a major challenge is to effectively eliminate the harmful effects of devices. In most cases, the test result contains the characteristics of the effect because the specific effect connects the test port of the device and the input port of the device during SMD testing. The SNA5000A uses various methods to minimise the effect caused by the fixture effect.
Extended time domain analysis (TDR)
The SNA5000A supports extended time domain analysis to measure impedance as a function of distance to differentiate between inductive and capacitive transitions. With time domain gating, we can isolate different sections of the device and see the effects in the frequency domain. Another application for TDR is fault location on coaxial cables in mobile phone and CATV installations.
Low noise floor & high dynamic range measurements
The system dynamic range, the difference between the measurement power available at the test port and the noise floor of the receiver, is a critical parameter of a VNA. The dynamic range of the SIGLENT SNA5000A series can be up to 125 dB@10 Hz and thus fulfils all specific requirements for RF tests, such as the simultaneous testing of in-band and out-of-band filters
S-parameter and balance measurement
For the S-parameter measurement at 4 ports, several measurement curves can be added in different windows with the formats Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar, etc.. This is used for tracking transmission & reflection, load matching and for directivity analysis. Measurement curves can be saved as references and limit values can be added for pass/fail tests.
Technical Data
| Model comparison |  SNA5002A |  SNA5004A |  SNA5012A |  SNA5014A |  SNA5022A |  SNA5032A |
|---|---|---|---|---|---|---|
| Channels | 2 | 4 | 2 | 4 | 2 | 2 |
| max. bandwidth | 4.5 GHz | 4.5 GHz | 8.5 GHz | 8.5 GHz | 13.5 GHz | 26.5 GHz |
| Frequency Resolution | 1 Hz | 1 Hz | 1 Hz | 1 Hz | 1 Hz | 1 Hz 1 Hz |
| Dynamic range | 125 dB | 125 dB | 125 dB | 125 dB | 125 dB | 125 dB |
| Output level range | -55 ~ +10dBm | -55 ~ +10dBm | -55 ~ +10dBm | -55 ~ +10dBm | -55 dBm ~ +10 dBm | -55 dBm ~ +10 dBm |
| Track noise | 0.003 dB rms, 0.03° rms | 0.003 dB rms, 0.03° rms | 0.003 dB rms, 0.03° rms | 0.003 dB rms, 0.03° rms | 0.003 dB rms, 0.03° rms | 0.003 dB rms, 0.03° rms |
