350 MHz, 12-bit system for test integration: two Micsig MO34-350Pro oscilloscopes with SFP+ and transmission kit, synchronised by the MOS4.
Volume discounts on request!
€7,369.00 Net
€8,769.11 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1 week
Content: 1
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Product configuration
Customize your product!
Click on a category below to view available options.
Description

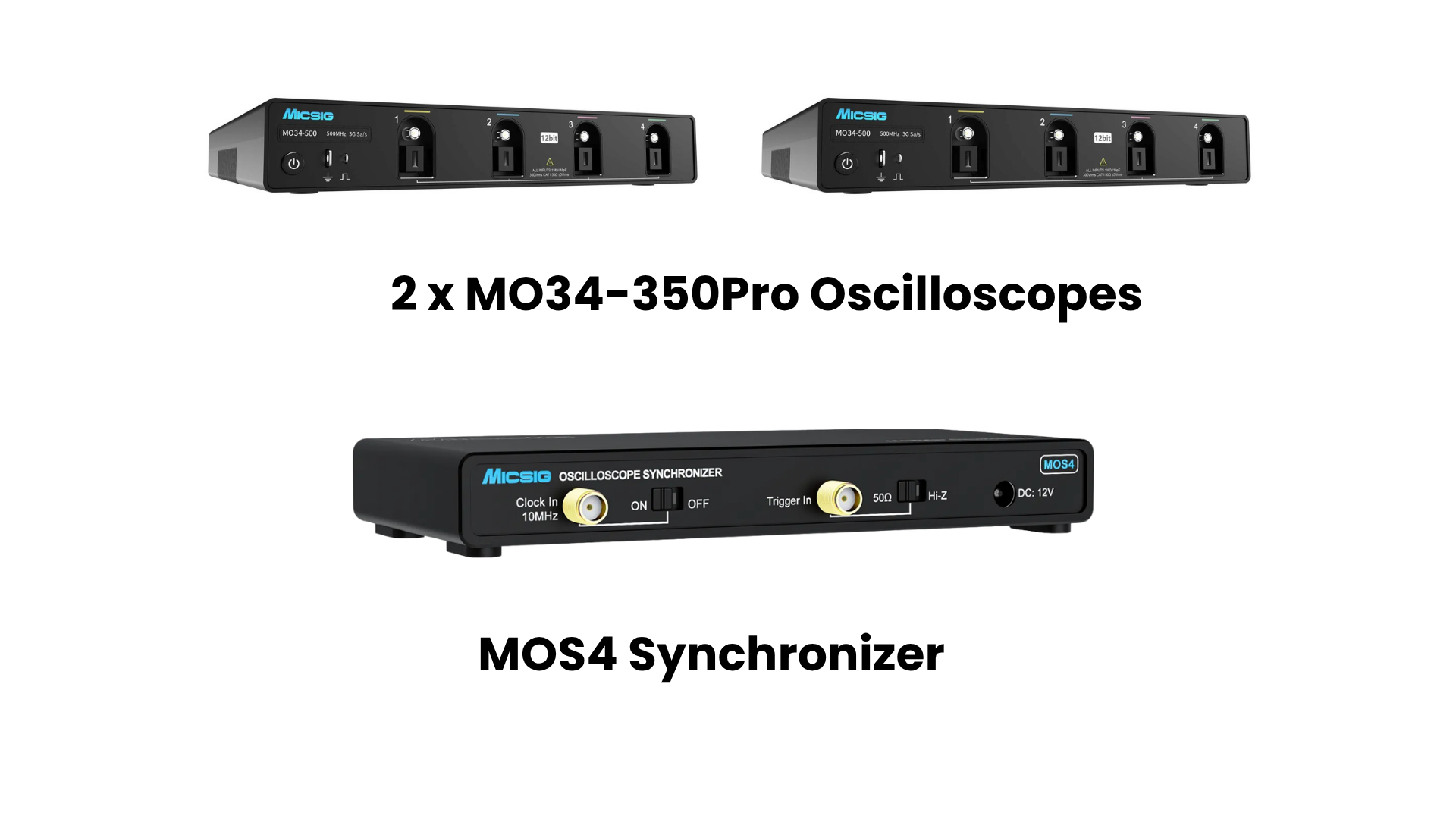

The MO34-350-Bundle-Pro combines two Micsig MO34-350Pro modular oscilloscopes with the MOS4 synchronizer to form one 8-channel, 350 MHz measurement system. The MOS4 distributes a shared 10 MHz reference clock and trigger, so both units acquire in step with less than 100 ps time deviation. The free PC software lets you control and operate both oscilloscopes as a single system.
The Pro models are built for system integration. Compared with the standard MO34, each MO34-350Pro adds integration software, a High-Speed Transmission Kit (hardware and software) and the SFP+ interface. At 350 MHz, it suits automated validation of power electronics, multi-phase converters, inverters and embedded designs with faster digital interfaces, where switching edges and clock-data timing must be captured on several channels at once.
The system is modular. One MOS4 synchronizes up to four oscilloscopes, so two more MO34 units take the bundle to 16 channels, and further synchronizers extend it beyond that.
Features
Micsig MO34-350Pro modular 12-bit oscilloscope
- 350 MHz bandwidth, rise time ≤ 1 ns
- 4 analogue channels per unit; 8 channels in this bundle
- 12-bit vertical resolution (4096 levels, 16 × more than an 8-bit ADC)
- 3 GSa/s sampling rate and 360 Mpts memory depth; memory not reduced with two channels active
- Waveform capture rate up to 230,000 wfms/s
- Baseline noise < 80 µVrms
- Segmented memory as standard and hardware digital filtering
- Bus trigger and decoding: UART, I²C, SPI, CAN, CAN FD, LIN, FlexRay
- Pro configuration: software for system integration and a High-Speed Transmission Kit (hardware and software)
- SFP+ interface for high-speed data transfer (available on Pro models only)
- Further interfaces: LAN, Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding
- Remote control via PC software and SCPI commands; iOS and Android app
- No built-in screen: user interface output to any HDMI display
- 32 GB internal memory; Android operating system
- Compact housing, max. 3 cm thick, 1.1 kg; stackable and rack-mountable
Micsig MOS4 oscilloscope synchronizer
- Synchronizes up to 4 oscilloscopes (16 channels)
- Shared 10 MHz reference clock and trigger distribution
- Time deviation between devices < 100 ps
- Trigger input switchable between 50 Ω and High-Z
- SMA connectors; 12 V DC / 1.5 A supply
- Compact: 132.4 × 77 × 18.7 mm, 190 g
Why choose this bundle
- Ready for system integration. Integration software, the High-Speed Transmission Kit and SFP+ come with both oscilloscopes. No separate integration package to source.
- 8 synchronised channels. Eight time-aligned, 12-bit channels from one system, rather than a 4-channel instrument or two unsynchronised scopes.
- Headroom for faster edges. 350 MHz and a rise time of ≤ 1 ns give more margin for switching transitions and faster digital signals than the 250 MHz version.
- Controlled as one instrument. The free PC software runs both units as one 8-channel system; SCPI commands connect it to your own test software.
- Built for racks. No built-in display, 3 cm thin, stackable and rack-mountable. View results on any HDMI monitor or the host PC.
- Add two more MO34 units to the same MOS4 for 16 channels.
- Supplier support. Advice, ordering and support from eVision Instruments as Micsig distributor.
Modular connection
The MO34 series supports rack mounting and the synchronisation of multiple devices in a matrix to achieve a larger number of analogue channels (4*N).The SFP+ connection also enables a data transfer speed of up to 1ß Gbps, offering unlimited possibilities for integration.
