12-bit oscilloscope system: two Micsig MO34-500 modular oscilloscopes synchronised by the MOS4, with free PC control software.
Volume discounts on request!
€4,196.00 Net
€4,993.24 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1 week
Content: 1
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Product configuration
Customize your product!
Click on a category below to view available options.
Description

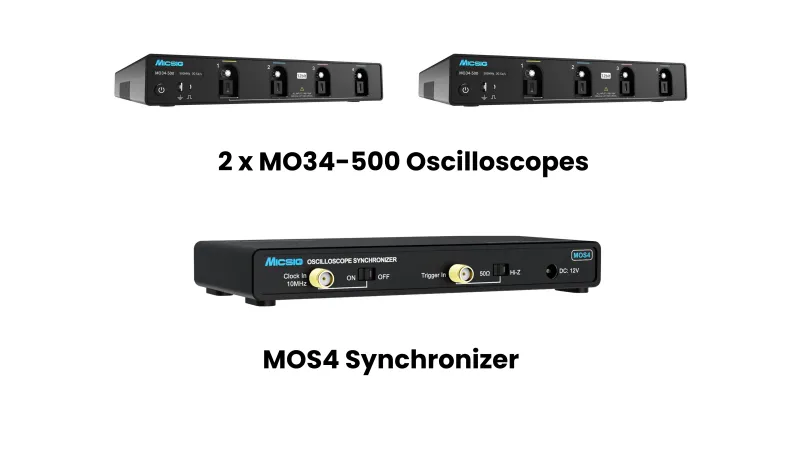

The MO34-500-Bundle turns two Micsig MO34-500 modular oscilloscopes into one 8-channel, 500 MHz measurement system. The MOS4 synchronizer distributes a shared 10 MHz reference clock and trigger to both units, so all eight channels acquire in step, with a time deviation of less than 100 ps between devices. With the free PC software, you control and operate both oscilloscopes as a single system.
At 500 MHz, the bundle is the choice for fast digital circuits, mixed-signal designs and communication system verification, as well as fast-switching power stages where edge timing across many channels matters. Each channel records at 12-bit resolution with 3 GSa/s sampling and 360 Mpts memory.
The system is modular. The MOS4 synchronizes up to four oscilloscopes, so this bundle can grow to 16 channels by adding two more MO34 units, and further with additional synchronizers.Features
Micsig MO34-500 modular 12-bit oscilloscope
- 500 MHz bandwidth, rise time ≤ 0.7 ns
- 4 analogue channels per unit; 8 channels in this bundle
- 12-bit vertical resolution (4096 levels, 16 × more than an 8-bit ADC)
- 3 GSa/s sampling rate and 360 Mpts memory depth; memory not reduced with two channels active
- Waveform capture rate up to 230,000 wfms/s
- Baseline noise < 80 µVrms
- Segmented memory as standard and hardware digital filtering
- Bus trigger and decoding: UART, I²C, SPI, CAN, CAN FD, LIN, FlexRay
- No built-in screen: user interface output to any HDMI display
- Remote control via Ethernet with free PC software, SCPI commands, and iOS/Android app
- Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, SFP+, trigger output, grounding
- 32 GB internal memory; Android operating system
- Compact housing, max. 3 cm thick, 1.1 kg; stackable and rack-mountable
Micsig MOS4 oscilloscope synchronizer
- Synchronizes up to 4 oscilloscopes (16 channels)
- Shared 10 MHz reference clock and trigger distribution
- Time deviation between devices < 100 ps
- Trigger input switchable between 50 Ω and High-Z
- SMA connectors; 12 V DC / 1.5 A supply
- Compact: 132.4 × 77 × 18.7 mm, 190 g
Why choose this bundle
- 8 synchronised channels. Eight time-aligned, 12-bit channels from one system, instead of a single 4-channel instrument or two unsynchronised scopes.
- Highest bandwidth in the series. 500 MHz with a rise time of ≤ 0.7 ns, the fastest MO34 model, for fast digital and mixed-signal work.
- One system, one interface. The free PC software controls both oscilloscopes as one 8-channel instrument. SCPI commands allow integration into automated test setups.
- Scales with your requirements. Add two more MO34 units to the same MOS4 for 16 channels, without replacing what you already own.
- Fits test racks and tight benches. No built-in display, 3 cm thin, stackable and rack-mountable. Use any HDMI monitor, or run it entirely from a PC.
- Supplier support. Advice, ordering and support from eVision Instruments as Micsig distributor.
Modular connection
The MO34 series supports rack mounting and the synchronisation of multiple devices in a matrix to achieve a larger number of analogue channels (4*N).The SFP+ connection also enables a data transfer speed of up to 1ß Gbps, offering unlimited possibilities for integration.
