€399.00 Net
€474.81 incl. VAT
Delivery time: 2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

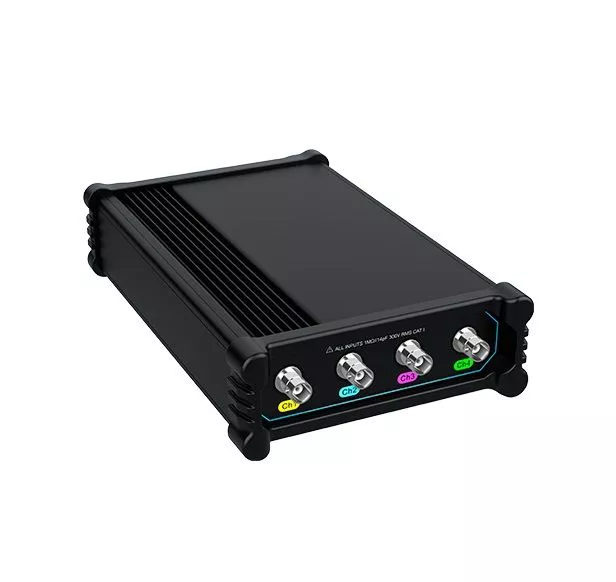

The VATO2004 is a platform oscilloscope whose application can be used on any device with an Android operating system. The VATO2004 has comprehensive automotive diagnostic software that can be used to perform a variety of tests such as charge and starter circuit tests, pressure tests such as cylinder compression and fuel pressure tests. In addition, the oscilloscope comes with extensive serial bus decoding and trigger functions, which have very low trigger jitter thanks to the digital trigger system, making trigger use highly precise.
With the help of the APK, the oscilloscope can also be integrated into user-defined programmes for automated tests.
A battery pack is available as an option, which enables the oscilloscope to run for up to 6 hours and can be doubled if required by using a replaceable battery.
The VATO2004 has a sampling rate of up to 50 Mpts memory depth, a signal acquisition rate of up to 130,000 wfm/s (segmented memory mode), 4 channels, 200 MHz bandwidth and 1 GSa/s sampling rate.
Features
- Integrated vehicle diagnostics software
- compact oscilloscope with 4 channels
- Bandwidth of 200 MHz
- 1 GS/s real-time sampling rate.
- Replaceable battery (optional)
- Up to 50 Mpts memory depth.
- 130.000 Wfms/s acquisition rate
- Interfaces: Wi-Fi, USB Type-C,
- Connection for probe calibration.
- Bus trigger and decoding supported: CAN Low/High, CAN FD, LIN, FlexRay, and K-line.
- Lithium battery, battery life up to 6 hours.
- Screen sharing via WLAN, USB and HDMI
Automotive diagnostic examples
Charging & starting system tests
Charging/starting system testing, including 12/24 volt charging/starting circuit, charging shafts and other related tests.
Network tests
Network tests (communication), including CAN Low/High, CAN FD, LIN, FlexRay and K-line.
Actuator tests
Support for various actuator tests: injector voltage and current, blower control signals, variable valve timing, exhaust canister solenoid valve, EGR solenoid valve, etc.
Sensor testing
Automotive application examples
Oscilloscope features
Many trigger functions
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for a wide range of measurement requirements.
50 Mpts memory depth
Enables sampling into a range of the captured signal via touch screen.
Automatic scaling
Automatically adjusts the offset in real time according to the size and frequency of the signal.
High & low pass filter
The filter function helps engineers to exclude insignificant frequencies to eliminate interference and observe the true state of the signal.
Calculation tools
Various tools are available in the form of apps for electronic calculations.
Screen sharing function
the screen content of the oscilloscope can be easily streamed to an external monitor via the built-in HDMI connection.
Remote control
The Micsig STO1000 series has PC software and a mobile phone app (Android/IOS) for remote control via WIFI and USB.
Technical Data
| Model specification |  VATO2004 |
|---|---|
| Bandwidth | 200MHz |
| Analogue channels | 4 |
| Rise time | ≤1.8ns |
| Sampling rate | 1GSa/s |
| Memory depth | 50Mpts |
| DC amplification accuracy | ≤ 2% |
| Input impedance | 1MΩ±1% || 14pF |
| Power supply | USB Type-C，DC power |
| Supported tests | Charge/start circuits, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, Flexray, K line), combination tests |
| Battery (optional) | 7.4V、7500mAh lithium-ion battery |
| Dimensions | 140*215*52mm |
| Net weight | 640g |
