The oscilloscopes of the MHO14-N series do without the built-in multimeter, but have the same functions as the MHO14 series from Micsig.
The MHO14 series sets new standards in innovation and design of modern oscilloscopes. The highlight of the device is its modern and slim design. The oscilloscope is significantly slimmer than comparable conventional desktop oscilloscope models and still combines an integrated oscilloscope and a 16800mah in the housing. Thanks to the low overall thickness of 3.1 cm, the device is not much "bulkier" than a laptop and can therefore be carried comfortably in any bag.
Despite the numerous functions, the integrated battery and the compact design, the waste heat is almost completely dissipated passively so that the fan is always quiet and operation is trouble-free.
The device can be used flexibly both in mobile field applications and in the laboratory and comes with all the modern functions you could wish for without compromising, including 12-bit converter, 4 channels, 8-inch touchscreen, Android-based software with numerous additional apps, etc. In addition, the battery life can be extended almost indefinitely by using a power bank and the oscilloscope's USB C port.
The device's specifications allow it to be used for a wide range of simple applications.
These include 100 MHz bandwidth, 110 Mpts memory depth, a signal acquisition rate of 50.00 wfm/s, 4 channels and a sampling rate of 1 GSa/s.
The oscilloscope also offers a complex trigger system including protocol-based triggers. The device supports the triggering and decoding of RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD1553B.
The device also offers a PC software and app with which the oscilloscope can be remotely controlled and the screen transmitted. Data can also be transferred wirelessly.
The MHO14 series from Micsig offers an unrivalled overall package of functions and ergonomic design at a very affordable price.
Features
- Compact & high quality design with 32 GB internal memory
- Features SCPI commands which enable automated remote control
- Integrated 16800 mah battery for up to 4 hours runtime
- Android operating system with helpful additional applications
- 4 channels, bandwidth of 100 MHz & 1 GS/s real-time sampling rate.
- Up to 110 Mpts memory depth and 78,000 Wfms/s acquisition rate
- 8 inch touchscreen with multi-point touchscreen and very good housing to screen ratio
- Interfaces: Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger output, grounding
- Bus trigger and decoding supported: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD1553B
- PC software, iOS and Android mobile app for remote control, screen sharing and data transfer with the oscilloscope.
Product highlight
User-friendly operating system
The SigTest operating system, which has been continuously improved over the years through collaboration and suggestions from thousands of engineers, offers three operating modes: pure touch operation, pure button operation, hybrid operation
High memory depth
Standard segmented memory divides limited memory space into multiple small segments, capturing multiple trigger events in a single memory location. Thanks to practical analysis and display functions, it enables both integrated and individual display. This makes analysis and positioning more precise and efficient, and the search for fine details much easier.
12 bit vertical resolution
The MHO1 series uses a high-resolution 12-bit ADC with up to 4096 quantisation levels, which is 16 times that of a conventional 8-bit ADC. This allows users to recognise waveform details more fully and clearly.

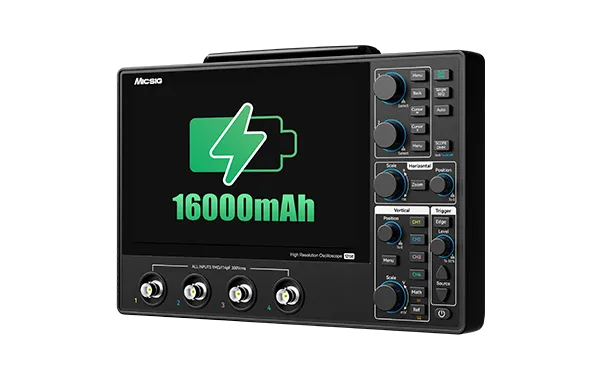

Long-life battery
Technical Data
| Model |  MHO14-100N | MHO14-200N |
|---|---|---|
| Bandwidth | 100 MHz | 200 MHz |
| Number of channels | 4 | 4 |
| Rise time | ≤3.5ns | ≤1.75ns |
| Max. Sampling rate | 1 GSa/s | 1 GSa/s |
| Max. Memory depth | 110Mpts | 110Mpts |
| Waveform capture rate (max.) | 50.000 wfms/s | 50.000 wfms/s |
| Input sensitivity range | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 10V/div (50Ω) | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 10V/div (50Ω) |
| Bandwidth filter | 20 MHz、 Low pass (up to 30 Hz) | 20 MHz、 Low pass (up to 30 Hz) |
| Segmented memory | Supports the acquisition of a maximum of 10,000 waveform events | Supports the acquisition of a maximum of 10,000 waveform events |
| Input impedance | 1MΩ | 1MΩ |
| Time base range | 1ns/div ~ 1ks/div | 1ns/div ~ 1ks/div |
| Bus decoding | UART (RS232/424/485), CAN, CAN FD, LIN, SPI, I²C | UART (RS232/424/485), CAN, CAN FD, LIN, SPI, I²C |
| Interfaces | USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger output | USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger output |
| Memory | 32 GB | 32 GB |
| Display | 8 inch LCD capacitive touch display, 1280 x 800 resolution | 8 inch LCD capacitive touch display, 1280 x 800 resolution |
| Battery | 3.7 V, 16000 mAh Li-Ion battery / Up to 4 hours operating time | 3.7 V, 16000 mAh Li-Ion battery / Up to 4 hours operating time |
| Size/net weight | 265 * 174 * 31.5 mm / 1.1 kg | 265 * 174 * 31.5 mm / 1.1 kg |
