€525.00 Net
€938.91 incl. VAT
Delivery time: 1-2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

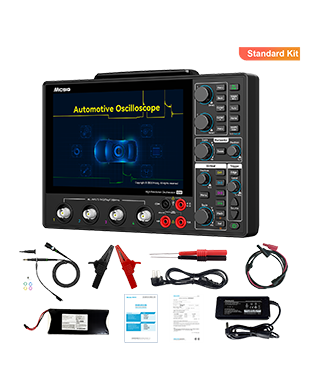

The Micsig AHO1 series is a professional, high-resolution automotive oscilloscope for vehicle diagnostics. It features a 12-bit ADC, 200 MHz bandwidth, 4 analog channels, a real-time sampling rate of 1 GSa/s, and a memory depth of 110 Mpts.
Thanks to its ultra-slim design, measuring only 3.1 cm, its integrated, powerful Li-ion battery and USB Type-C charging port, it is ideal for mobile and outdoor repairs.
With an innovative dual software architecture for general applications and vehicles, and special test modes for engines, sensors and electric vehicles, it supports both combustion engine and electric vehicle diagnostics, helping technicians to fix faults faster and increase service efficiency.
Features
- Integrated full-featured multimeter with 4⅚ digits
- Integrated 16800 mAh battery for up to 4 hours of runtime
- Android operating system with helpful additional applications
- 4 channels, 200 MHz bandwidth & 1 GS/s real-time sampling rate.
- Up to 110 Mpts storage depth and 78,000 Wfms/s capture rate
- 8-inch touchscreen with multi-point touchscreen and very good screen-to-body ratio
- Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Output, Grounding
- Bus triggering and decoding supported: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD1553B
- PC software, iOS and Android mobile app for remote control, screen sharing and data transfer with the oscilloscope.
Product highlight
user-friendly operating system
The SigTest operating system, which has been continuously improved over the years through collaboration and suggestions from thousands of engineers, offers three operating modes: pure touch operation, pure button operation, and hybrid operation.
High storage depth
Segmented memory, by default, divides limited storage space into multiple small segments, thus capturing multiple trigger events in a single memory location. Thanks to convenient analysis and display functions, it enables both integrated and custom display. This makes analysis and positioning more precise and efficient, and significantly simplifies the search for fine details.
12-bit vertical resolution
The MHO1 series utilizes a high-resolution 12-bit ADC with up to 4096 quantization levels, which is 16 times that of a conventional 8-bit ADC. This allows users to perceive waveform details more completely and clearly.
Long-lasting battery
Vehicle diagnostic examples
Primary ignition test
Ignition diagnostics for primary and secondary ignition
probe tests
ABS, lambda, knocking, fuel sensor diagnostics, etc.
Network tests
Includes network testing for CAN, LIN, Flexray & K-line.
Drive diagnostics
Technical Data
| Model |  AHO14-200 |
| bandwidth | 200 MHz |
| Ascent time | ≤ 1.75 ns |
| Analog channels | 4 |
| Sampling rate | 1 GSa/s |
| Storage depth | 110 Mpts |
| Maximum waveform capture rate | 50,000 wfms/s |
| Vertical resolution | 12-bit |
| interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out |
| Supported Tests | Charging/starting systems, sensors, actuators, ignition, networks (CAN L/H, CAN FD, LIN, FlexRay, K-Line), combination tests |
| Display | 8" TFT LCD touchscreen, 1280 × 800 pixels |
| Battery (optional) | 3.7 V, 16000 mAh Lithium-ion |
| charge | 12V power supply, supports USB Type-C |
| Multimeter accuracy | 4 5/6 digits |
| Dimensions / Weight | 265 × 174 × 31 mm / 1.73 kg |
