1 GHz bundle: Micsig MHO68-1000 12-bit 8-channel oscilloscope with SigOFIT MOIP1000P optically isolated probe for GaN, SiC and power electronics testing.
Volume discounts on request!
€28,000.00 Net
€33,320.00 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1 week
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Product configuration
Customize your product!
Click on a category below to view available options.
Description

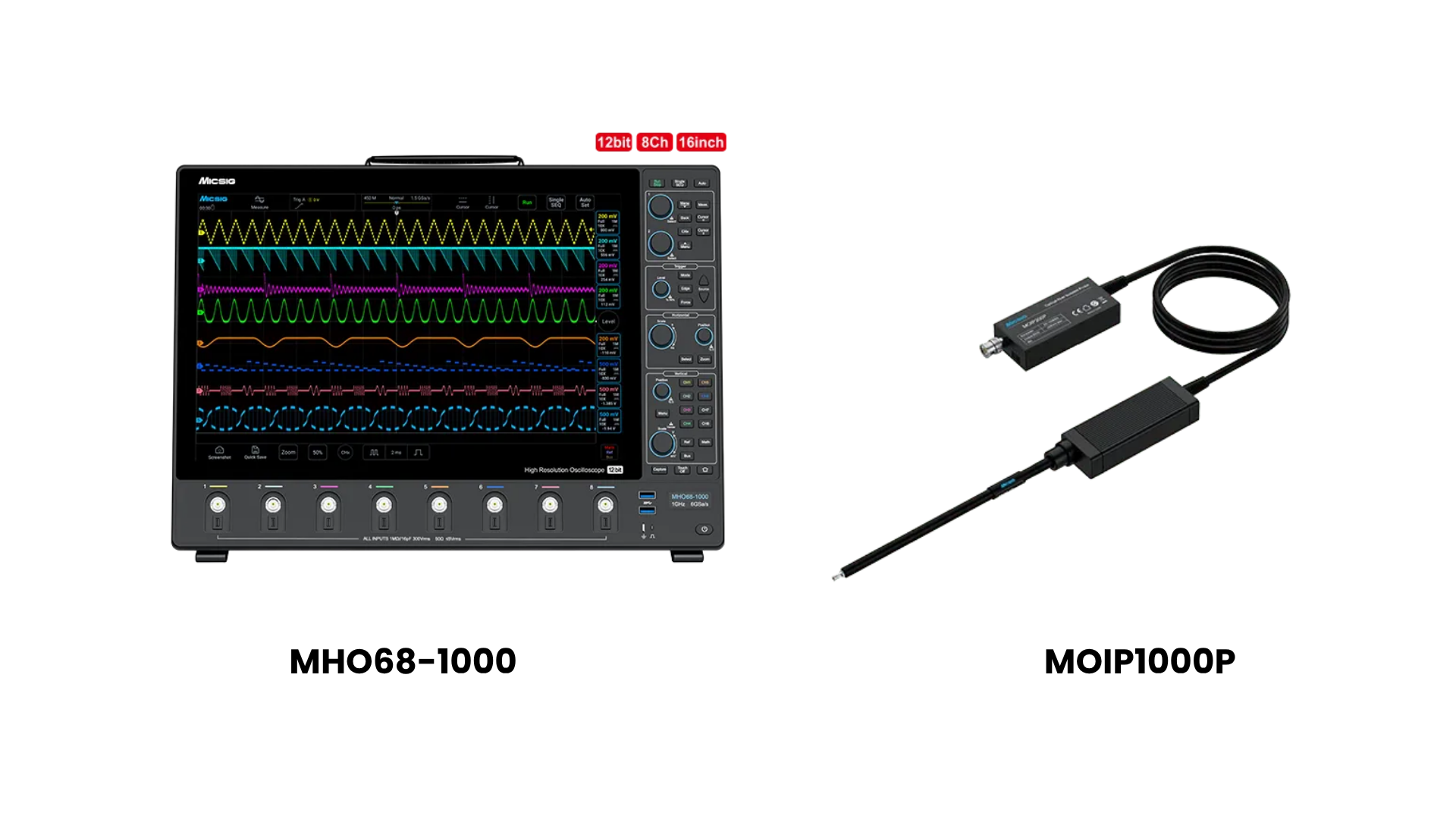

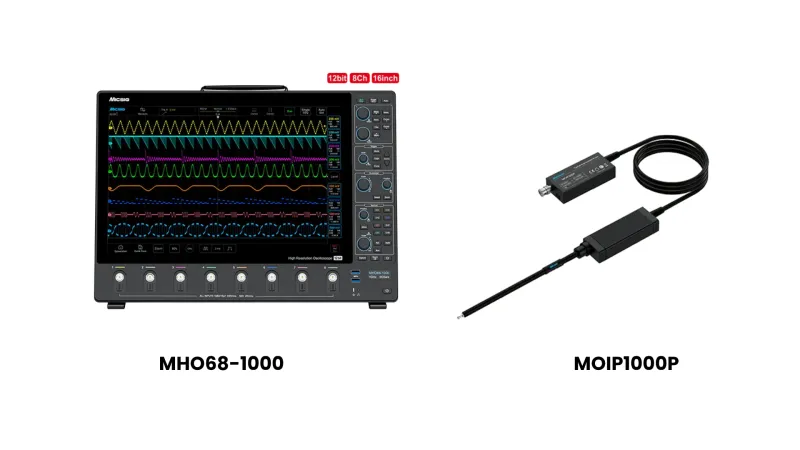

The MOIP-MHO68-1000-Bundle combines the Micsig MHO68-1000 12-bit oscilloscope with the SigOFIT MOIP1000P optically isolated probe. Both are rated for 1 GHz bandwidth.
The set is built for power electronics work where the signal of interest floats at high voltage and switches fast. Typical uses are fast GaN designs and SiC stages where edges are in the sub-nanosecond range. The MOIP1000P transfers the signal over optical fibre and is powered by laser, which gives a CMRR of 108 dB at 1 GHz and an 85 kVpk common-mode voltage range. The MHO68-1000 captures it at 12-bit resolution, with 6 GSa/s sampling, 1800 Mpts memory and seven further analogue channels for gate-drive, current and control signals.
Features
Micsig MHO68-1000 12-bit oscilloscope
- 1 GHz bandwidth, rise time ≤ 0.4 ns
- 8 analogue channels in one compact unit
- 12-bit A/D converter with 6 GSa/s real-time sampling
- 1800 Mpts memory depth
- Low noise: < 80 µVrms
- 16-inch capacitive multi-touch display, 1920 × 1200
- Ultra-thin housing: 3.52 cm
- Standard BNC and Mic-OPI™ probe interface; Mic-OPI detects passive probe attenuation automatically
- Bus trigger and decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C; ARINC-429 and MIL-STD-1553B optional
- Interfaces: Wi-Fi, LAN, USB 3.0/2.0 host, USB Type-C, HDMI, trigger out
- Android OS with 32 GB internal storage for waveforms and video recording
- Remote control via PC software and iOS/Android app; screen sharing via WLAN, USB and HDMI
Micsig SigOFIT MOIP1000P optically isolated probe (Gen 3)
- 1 GHz bandwidth, rise time ≤ 450 ps
- CMRR: 180 dB (DC), 108 dB (1 GHz)
- 85 kVpk common-mode voltage range
- Differential measurements from ±0.01 V to ±20 kV with exchangeable attenuation tips
- Input capacitance < 3 pF, suited to GaN and SiC switch nodes
- DC gain accuracy 1 %, zero drift < 0.1 %
- Calibration-free measurements; no auto-zero required
- Laser-powered for uninterrupted operation; improved temperature stability
- MCX and MMCX coaxial tip connections to suppress common-mode noise pick-up
- 2 m fibre length (custom lengths available)
- Works with any BNC oscilloscope
Why choose this bundle
- Matched bandwidth. Probe and oscilloscope are both specified to 1 GHz. You get the rated bandwidth at the probe tip without guessing which part limits the system.
- Isolated high-side measurements. Measure high-side gate signals and floating switch nodes in half- and full-bridge circuits. Optical isolation with 108 dB at 1 GHz keeps common-mode noise out of the result.
- Small signals on large swings. The 12-bit vertical resolution and the < 80 µVrms noise floor of the MHO68-1000 make use of the probe's wide dynamic range, from millivolt-level signals up to kilovolt ranges.
- Ready to measure. The MOIP1000P is calibration-free and needs no auto-zero. It ships with OP50 (±25 V) and OP5000 (±2500 V) tips, so low-voltage and high-voltage nodes are covered from day one.
- Room to grow. Add attenuation tips up to ±20 kV, or combine the MHO68-1000 with Micsig high-voltage differential probes, Rogowski coils and AC/DC current probes on the remaining channels.\
- One supplier. Order, technical advice and support from eVision Instruments. Demo units are available on request.
MOIP1000P: Probe tips
SigOFIT OP20-1G Probe tip (20X | 1 GHz)
Product Nr.: OP20-1G
The OP20-1G is a 20X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€653.31*
SigOFIT OP50-1G Probe tip (50X | 1 GHz)
Product Nr.: OP50-1G
The OP50-1G is a 50X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€653.31*
SigOFIT OP100-1G Attenuation tip (100X | 1 GHz )
Product Nr.: OP100-1G
The OP100-1G is a 100X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€653.31*
SigOFIT OP2000-1G Probe tip (2000X | 1 GHz)
Product Nr.: OP2000-1G
The OP2000-1G is a 2000X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€712.81*
SigOFIT OP5000-1G Probe tip (5000X | 1 GHz)
Product Nr.: OP5000-1G
The OP5000-1G is a 5000X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€974.61*
SigOFIT OP10000-1G Probe tip (10000X | 1 GHz)
Product Nr.: OP10000-1G
The OP10000-1G is a 10000X attenuation tip with 1 GHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
€974.61*
SigOFIT OP20000-2 Attenuation tip (20000X | 200 MHz)
Product Nr.: OP20000-2
The OP20000-2 is a 20000X attenuation tip with 200 MHz bandwidth for the Micsig SIGOFIT fibre optic insulated series.
€2,259.81*
SigOFIT OP30000-2 Attenuation tip (30000X | 200 MHz)
Product Nr.: OP30000-2
The OP30000-2 is a 30000X attenuation tip with 200 MHz bandwidth for the Micsig SIGOFIT fibre optic insulated series.
€2,259.81*
SigOFIT OP40000-2 Attenuation Tip (40000x | 200 MHz)
Product Nr.: OP40000-2
The OP40000-2 is a 40000X attenuation tip with a 200 MHz bandwidth for the Micsig SIGOFIT fiber-insulated series.
€2,259.81*
SigOFIT OP5000-RF Attenuator (300kHz-50MHz/5kV)
Product Nr.: OP5000-RF
The OP5000-RF is attenuation tip with 50 MHz bandwidth for the Micsig SIGOFIT fibre optic insulated series.
€1,545.81*
SigOFIT OP-SMA Adapter
Product Nr.: OP-SMA
The Micsig OP-SMA Adapter provides direct SMA connectivity for SigOFIT MOIP probes, enabling accurate low-level signal measurement and RF testing.
€189.21*
MOIP1000P: Accesories
MCX 5hole set
Product Nr.: MCX-5-hole-set
The Micsig MCX 5 hole set consists of a 5 hole MCX adapter and a set of pin headers.
€53.55*
MCX Extension cable set
Product Nr.: MCX-ext-cable-set
The MCX Extension cable set contains a pin header, 2x cable extensions and DuPont clips.
€53.55*
MCX IC Clip Set
Product Nr.: MCX-IC-Clip-Set
The MCX IC Clip Set is compatible with all MCX attenuation tips from the SigOFIT probe series.
€53.55*
MCX Leads
Product Nr.: MCX-Leads
1 piece MCX Leads suitable for the optically isolated probes of the SigOFIT series.
€11.90*
MCX Set
Product Nr.: MCX-set
The Micsig MCX set includes 5x MCX sockets and 1x MCX solder lead compatible with all SigOFIT MCX attenuation tips
€47.60*
MCX Sockets
Product Nr.: MCX-Sockets
1 piece MCX socket suitable for the optically isolated probes of the SigOFIT series.
€11.90*
MMCX Extension cable set
Product Nr.: MMCX-ext-cable-set
The MMCX Extension cable set contains a pin header, 2x cable extensions and DuPont clips.
€53.55*
MMCX IC Clip Set
Product Nr.: MMCX-IC-Clip-Set
The MMCX IC Clip Set is compatible with all MMCX attenuation tips from the SigOFIT probe series.
€53.55*
MMCX Leads
Product Nr.: MMCX-Leads
1 piece MMCX lead suitable for the optically isolated probes of the SigOFIT series.
€11.90*
MMCX Set
Product Nr.: MMCX-Set
The Micsig MMCX set includes 5x MMCX sockets and 1x MMCX solder lead compatible with all SigOFIT MMCX attenuation tips
€47.60*
MMCX sockets
Product Nr.: MMCX-Sockets
1 piece MMCX socket suitable for the optically isolated probes of the SigOFIT series.
€11.90*
MS adapter-12V2.5A power supply unit
Product Nr.: MS-Adapter-12V2.5A
This power supply is suitable for SigOFIT probes and has a USB C output with fixed 12V & 2.5A.
€71.40*
RS-485 set (SigOFIT)
Product Nr.: RS-485 set
The RS-485 set allows SigOFIT probes to receive RS-485 commands to automatically activate zero calibration or range switching.
€107.10*
MHO68-1000: Accessories
BNC2BNC1.6 BNC to BNC test cable
Product Nr.: BNC2BNC1.6
The Micsig BNC2BNC1.6 BNC to BNC test cable is 1 metre long.
€11.90*
MS-A-001 BNC to banana cable
Product Nr.: MS-A-001
The Micsig MS-A-001-01 BNC to banana cable is 1.3 meters long.
€19.04*
MS-A-004 pliers clamps
Product Nr.: MS-A-004
Micsig MS-A-004 Clamp Clamps compatible with all Micsig oscilloscopes.
€36.89*
MS-A-005 Multimeter Probe
Product Nr.: MS-A-005
The Micsig MS-A-005 multimeter probes are compatible with all Micsig oscilloscopes.
€11.90*
MS-A-006 Insulated Alligator Clip (Large)
Product Nr.: MS-A-006
The Micsig MS-A-006 Insulated Crocodile Clamps are compatible with all Micsig oscilloscopes
€26.18*
MS-A-007 test needle
Product Nr.: MS-A-007
The Micsig MS-A-007 test probes are compatible with all Micsig oscilloscopes.
€17.85*
MS-A-011 alligator clips (small)
Product Nr.: MS-A-011
The Micsig MS-A-011 alligator clips are suitable for the Micsig Tablet Oscilloscopes.
€10.71*
MS-A-012 test hook needle
Product Nr.: MS-A-012
The Micsig MS-A-012 test hook needles are suitable for the Micsig Tablet Oscilloscopes.
€19.04*
MS-Adapter-24V5A power supply unit
Product Nr.: MS-Adapter-24V5A
This power supply unit is compatible with all oscilloscopes in the Micsig MHO3 and MDO series.
€83.30*
MS-HB soft case
Product Nr.: MS-HB
Micsig soft case suitable for all portable oscilloscope models.
€47.60*
OHK05 Remote control
Product Nr.: OHK05
Micsig OHK05 remote control is compatible with all portable oscilloscopes of the ETO/ATO/TO series from Micsig.
€89.25*
USB2WLAN WLAN USB dongle for oscilloscopes
Product Nr.: USB2WLAN
This USB dongle enables network access via WLAN when connected to a Micsig oscilloscope.
€17.85*
MHO68-1000: Differential sensors
DP3002 (100X/1000X) high voltage differential probe €474.81*
Product Nr.: DP3002
Models from €296.31*
DP702 (20X/200X) High-voltage differential probe head €474.81*
Product Nr.: DP702
Models from €296.31*
MHO68-1000: Current probes and clamps
ACP1000 Current clamp
Product Nr.: ACP1000
The Micsig ACP1000 current clamp allows you to measure AC current from 100mA to 1000A with a bandwidth of 100 Hz to 100 KHz.
€224.91*
CP2100A Current Clamp
Product Nr.: CP2100A
The Micsig CP2100A probe has two optional measurement ranges of 10 A and 100 A at a bandwidth of 800 KHz.
€355.81*
CP2100B Current Clamp
Product Nr.: CP2100B
The Micsig CP2100B probe has two optional measurement ranges of 10 A and 100 A at a bandwidth of 2,5 MHz.
€593.81*
MHO68-1000: Rogowski current probes
RCP12000L-700 Rogowski coil current probe €1,248.31*
Product Nr.: RCP12000L-700
Models from €1,129.31*
RCP12000M-700 Rogowski coil current probe €1,248.31*
Product Nr.: RCP12000M-700
Models from €1,129.31*
RCP12000S-700 Rogowski coil current probe €1,248.31*
Product Nr.: RCP12000S-700
Models from €1,129.31*
RCP1200XS-200 Rogowski coil current probe €1,248.31*
Product Nr.: RCP1200XS-200
Models from €1,129.31*
MHO68-1000: Optically isolated probes
