- 3-year warranty
Product configuration
Description

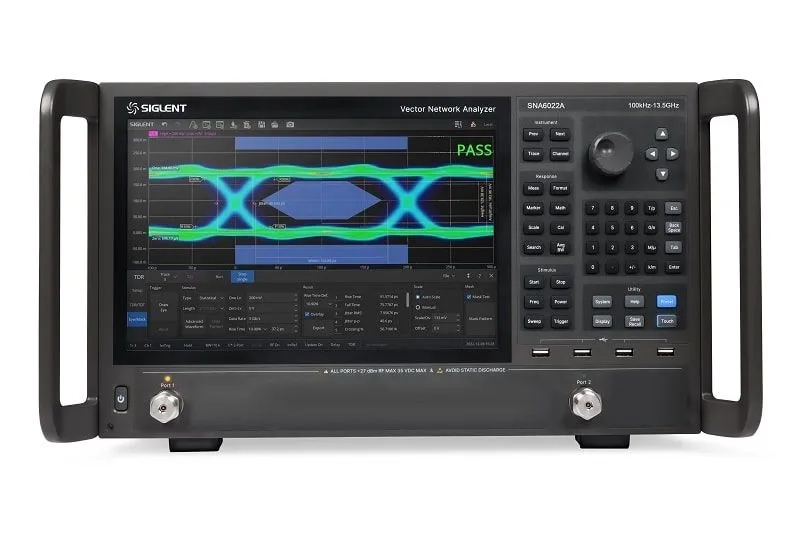

The SNA6022A vector network analyzer has a frequency range of 100 kHz to 13.5 GHz and supports 2/4-port scatter parameter, differential parameter, and time-domain measurements. The SNA6000A series vector network analyzers are effective instruments for determining the Q-factor, bandwidth, and insertion loss of a filter. They offer impedance conversion, measurement plane movement, limit testing, ripple testing, fixture simulation, and adapter removal/insertion. The VNAs feature five sweep modes: linear frequency mode, log frequency mode, power sweep mode, CW time mode, and segment sweep mode. The SNA6000A series VNAs also support the correction of scattering parameters SOLT, SOLR, TRL, Response and Enhanced Response for greater flexibility in R&D and manufacturing applications.
Features
- Frequency range: 100 kHz - 13.5 GHz and 100 kHz - 26.5 GHz
- Frequency resolution: 1Hz
- Level resolution: 0.05dB
- IFBW range: 1Hz~10MHz
- Output level adjustment range: -55dBm ~ +10dBm
- Dynamic range: 135dB
- Types of calibration: Reaction calibration, extended reaction calibration, single-port calibration, dual-port calibration, three-port calibration, four-port calibration, TRL calibration
- Internal Bias Tea Compounds
- Interface: LAN, USB device, USB host (USB-GPIB)
- Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
- 12.1-inch touchscreen
- Video output: HDMI/DVI-D/DP
Hardware details
With a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, the SNA6000A series delivers reliable automatic measurements and numerous functions, available in 2- and 4-channel models.
The SNA6022A spectrum analyzer offers the following measurement types and tests.
- Scatter parameter measurement
- Differential parameter measurement
- Receiver measurement
- Time domain parameter analysis
- Limit test
- Ripple test
- Material measurement
- Impedance conversion
- Device simulation
- Remove/insert adapter
- Spectrum analysis
- Frequency offset
- scalar mixer measurement
- Impulse measurement
Product Highlights
High dynamic range and high precision
High dynamic range enables more precise and reliable measurements, which is of great importance in research, development, and production. The SNA6000A boasts a dynamic range of over 135 dB, making it ideal for the detailed analysis of weak signals, even when they occur alongside stronger signals. This makes the analyzer ideal for measuring filters with low insertion loss and high stopband loss. Furthermore, high dynamic range helps minimize signal distortion, thus improving signal integrity. It also increases calibration accuracy, particularly in scenarios where external influences such as cables or adapters need to be minimized.
Spectrum analyzer for component characterization
Integrating a spectrum analysis function into a vector network analyzer (VNA) opens up expanded possibilities, particularly in the development and testing of high-frequency amplifiers, oscillators, and communication systems. This enhancement is also available as an option called the SNA6000-SA. It enables precise analysis of harmonics, intermodulation products, and other nonlinear effects, while simultaneously optimizing signal quality and bandwidth utilization in communication applications. Combining VNA and spectrum analysis in a single instrument not only offers space and cost savings but also allows for deeper and more comprehensive signal characterization.
Simple, fast and accurate pulsed RF measurement
The SNA6000A can also be expanded to include pulsed measurement capabilities, which is particularly advantageous for characterizing high-frequency components under real operating conditions, such as in radar and communication systems. This measurement method makes it possible to analyze the behavior of components with short pulses, precisely evaluate fast switching processes, and optimize performance in time-critical applications.
Extended calibration
The calibration of network analyzers is crucial for high-precision measurements. The SNA family supports a wide range of mechanical and electronic calibration kits with frequencies up to 26.5 GHz for general and precision applications, offering advanced calibration methods to improve usability while ensuring the highest accuracy in its class. SIGLENT protects your investment by supporting the import of third-party calibration kits and custom calibration kits.
Time domain analysis
To perform time-domain analysis, the SNA6000-TDA and SNA6000-TDR options are available. The Time Domain Reflectometry (TDR) capabilities extend the VNA's functionality to comprehensively diagnose and characterize signal paths, lines, and cables. Furthermore, eye diagrams can be generated, which are crucial for evaluating signal integrity in digital communications. The combination of TDR and VNA also enables jitter analysis, essential for investigating the temporal stability of signals. Both functions are of particular interest in high-speed digital development.
Power supply for multiport devices
The SSM single unit can expand the output ports to 24 and is easily integrated. It is ideally suited for automated test systems and production line scenarios. The VNA's multi-port measurement capability can improve test throughput, thereby significantly reducing device testing costs. Typical applications include the design, verification, and production of antennas, data converter interfaces, automated testing of RF components, and other devices.
Technical Data
| Model comparison | Frequency range | Channels | dynamic range | Trace noise | Output area |
|---|---|---|---|---|---|
 SNA6034A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6032A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6024A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6022A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6134A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6132A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6124A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
 SNA6122A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB eff., 0.012° eff. | -55 dBm ~ +10 dBm |
