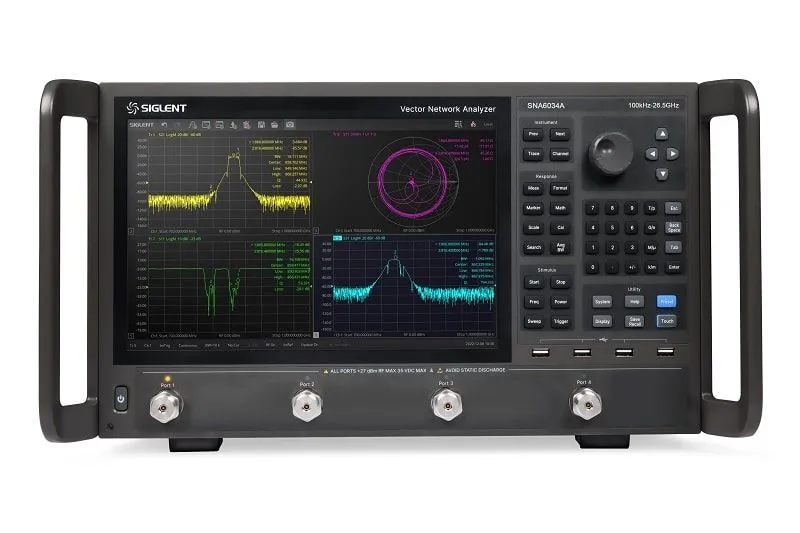

The SNA6034A vector network analyser has a frequency range from 100 kHz to 26.5 GHz and supports 2/4-port scattering parameter, differential parameter and time domain measurements. The SNA6000A series vector network analysers are effective measurement devices for determining the Q-factor, bandwidth and insertion loss of a filter. They offer impedance conversion, measurement plane motion, limit testing, ripple testing, fixture simulation and adapter removal/insertion.The VNAs have five sweep types: Linear Frequency Mode, Log Frequency Mode, Power Sweep Mode, CW Time Mode and Segment Sweep Mode. The SNA6000A series VNAs also support SOLT, SOLR, TRL, Response and Enhanced Response scattering parameter correction for more flexibility in R&D and manufacturing applications.

Features

Frequency range: 100 kHz -13.5 GHz and 100 kHz -26.5 GHz
Frequency resolution: 1Hz
Level resolution: 0.05dB
Range of IFBW: 1Hz~10MHz
Output level adjustment range: -55dBm ~ +10dBm
Dynamic range: 135dB
Calibration types: response calibration, extended response calibration, one-port calibration, two-port calibration, three-port calibration, four-port calibration, TRL calibration
Internal bias tee connections
Interface: LAN, USB device, USB host (USB-GPIB)
Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer
12.1-inch touchscreen
Video output: HDMI/DVI-D/DP

Hardware details

With a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, the SNA6000A series provides reliable automatic measurements and numerous functions, available in 2 and 4 channel models.

The SNA6022A spectrum analyser offers the following measurement types & tests.

Scattering parameter measurement
Differential parameter measurement
Receiver measurement
Time domain parameter analysis
Limit value test
Ripple test
Material measurement

Impedance conversion
Fixture simulation
Adapter removal/insertion
Spectrum analysis
Frequency offset
scalar mixer measurement
Pulse measurement

Product highlights

High dynamic range and high precision

A high dynamic range enables more precise and reliable measurements, which is of great importance in research, development and production. The SNA6000A impresses with a dynamic range of over 135 dB, making it ideal for analysing weak signals in detail, even if they occur alongside stronger signals. This makes the analyser ideal for measuring filters with low insertion loss and high stopband attenuation. In addition, a high dynamic range helps to minimise signal distortion, which improves signal integrity. It also increases calibration accuracy, especially in scenarios where external influences such as cables or adapters need to be minimised.

Spectrum analyser for component characterisation

The integration of a spectrum analysis function into a vector network analyser (VNA) opens up extended possibilities, particularly in the development and testing of high-frequency amplifiers, oscillators and communication systems. This extension is also available as an option called SNA6000-SA. It enables precise analysis of harmonics, intermodulation products and other non-linear effects while optimising signal quality and bandwidth utilisation in communication applications. The combination of VNA and spectrum analysis in one device not only offers space and cost saving benefits, but also enables deeper and more comprehensive signal characterisation.

Simple, fast and accurate pulsed RF measurement

The SNA6000A can also be extended to perform pulsed measurements, which is particularly advantageous when characterising high-frequency components under real operating conditions, such as in radar and communication systems. This measurement method makes it possible to analyse the behaviour of components with short pulses, precisely evaluate fast switching processes and optimise performance in time-critical applications.

Advanced calibration

The calibration of network analysers is crucial for highly accurate measurements. The SNA family supports a wide range of mechanical and electronic calibration kits up to 26.5 GHz for general and precision requirements and offers advanced calibration methods to improve ease of use while ensuring the highest accuracy in its class. SIGLENT protects your investment by supporting the import of third party calibration kits and customised calibration kits.

Time domain analysis

The SNA6000-TDA and SNA6000-TDR options are available to perform time domain analyses. The time domain reflectometry functions enhance the VNA with the ability to comprehensively diagnose and characterise signal paths, lines and cables. In addition, eye diagrams can be created, which are of decisive importance for the evaluation of signal integrity in digital communication. The combination of TDR and VNA also enables jitter to be analysed, which is essential for investigating the temporal stability of signals. Both functions are of particular interest in high-speed digital development.

Power supply for multiport devices

The SSM single unit can expand the output ports to 24 and is easy to integrate. It adapts perfectly to the automated test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include antenna design, verification and production, data converter interfaces, automatic testing of RF components and other devices, etc.

Productvideo

SNA6000A - Introduction

Technical Data

Model comparison	Frequency range	Channels	Dynamic range	Track noise	Output range
SNA6034A	100 kHz to 26.5 GHz	4	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6032A	100 kHz to 26.5 GHz	2	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6024A	100 kHz to 13.5 GHz	4	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6022A	100 kHz to 13.5 GHz	2	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6134A	100 kHz to 26.5 GHz	4	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6132A	100 kHz to 26.5 GHz	2	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6124A	100 kHz to 13.5 GHz	4	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
SNA6122A	100 kHz to 13.5 GHz	2	135 dB	0.005 dB rms, 0.012° rms	-55 dBm ~ +10 dBm
